M24308/24-149

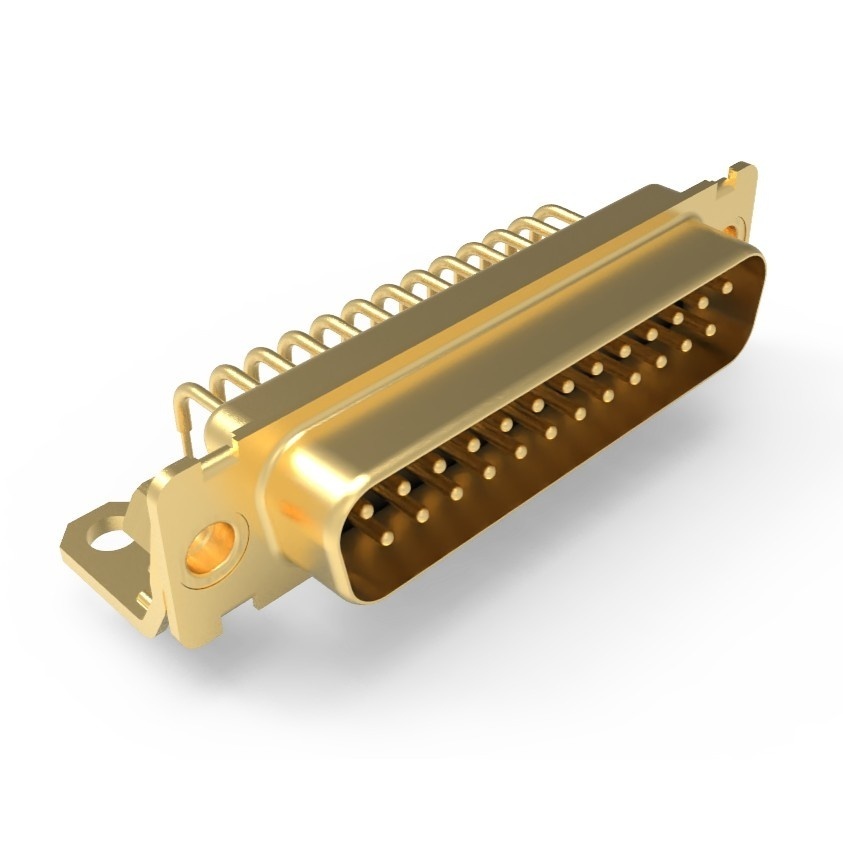

M24308/24-149 | Series: DM Connectors
Connectors with solder type or wire-wrap type termination contacts size 20 inserted into one-piece insulators.
| Property | Value |
|---|---|
Product Type | Connector Standard Density |
Quality Level | MIL certified |
Shell Size | E |
Contacts Number | 9 |
Contact Type | Pin (Male) |
Fixing Option | Through Hole (no hardware) |
Bracket | Plastic |
Termination Type | 90° Bent |
Termination Diameter | 0.76 (.030) |
Termination: Distance between 2 rows | 2.84 (.112) |
Foot Print | US |
Shell Finish | Gold |
- Multiple contacts termination choices
- Contacts installed in factory
- Non-outgassing
- Flight and Engineering models available
- 6 shell sizes: E, A, B, C, D and F
- Standard density: 9,15, 25, 37, 50 contacts
- High density: 15, 26, 44, 62, 78, 104 contacts
M24308/24-149 Applications
- Space equipment
- Harnesses and payloads
- Launchers
- Engineering
- Military and Avionics
M24308/24-149 Resources
