M24308/8-424

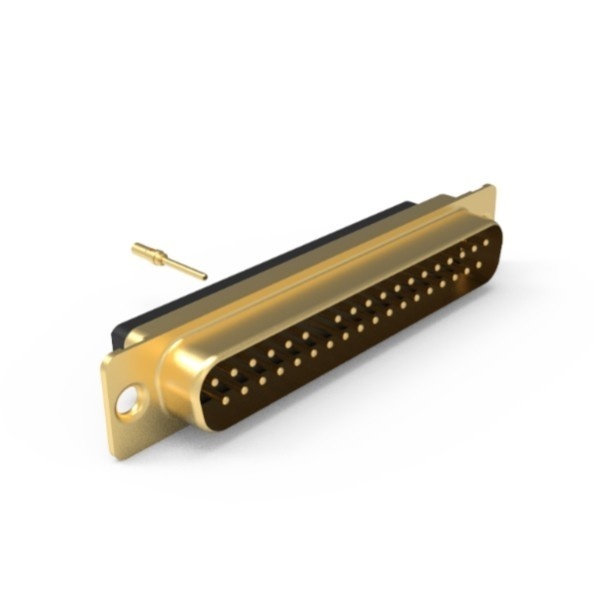

M24308/8-424 | Series: DMA Connectors
High performance D-Sub, Standard Density (SD) and High Density (HD), ESA qualified for space applications. Connectors compliant to ESCC specification 3401/002.Removable contacts compliant to ESCC specification 3401/005. Compatible with ESCC specifications 3401/022 and 3401/072 (Accessories) and 3401/020 (Savers connectors). Suitable for use in space. High military performances and aerospace applications: Board to Board, Board to Cable or Cable to Cable applications. Standard Density Size 20 (SD) available: 9, 15, 25, 37 and 50 ways High Density Size 22 (HD) available : 15, 26, 44, 62, 78 and 104 ways
| Property | Value |
|---|---|
Product Type | Connector Standard Density |
Quality Level | MIL certified |
Shell Size | A |
Contacts Number | 15 |
Contact Type | Pin (Male) |
Fixing Option | Float Mount |
Contact Delivered | With AWG 20/20 contacts |
Shell Finish | Gold |
- Compliant with ESA specifications
- Socket Starclip contact system
- Removable crimp type contacts
- Harnesses length flexibility
- Non-Outgassing
M24308/8-424 Applications
- Space equipment
- Satellites harnesses and payloads
M24308/8-424 Resources
