MDM-21PH011-A174-FR022

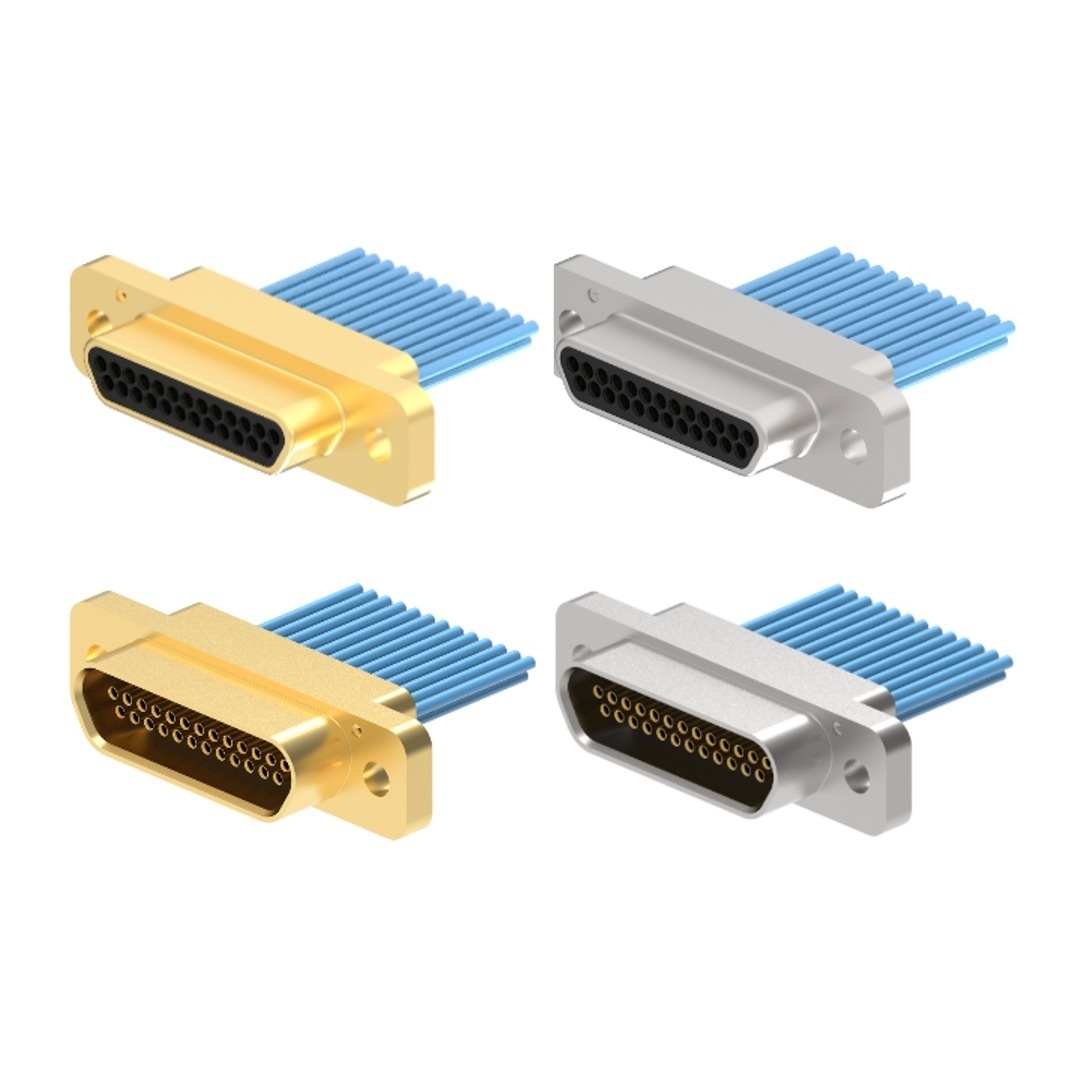

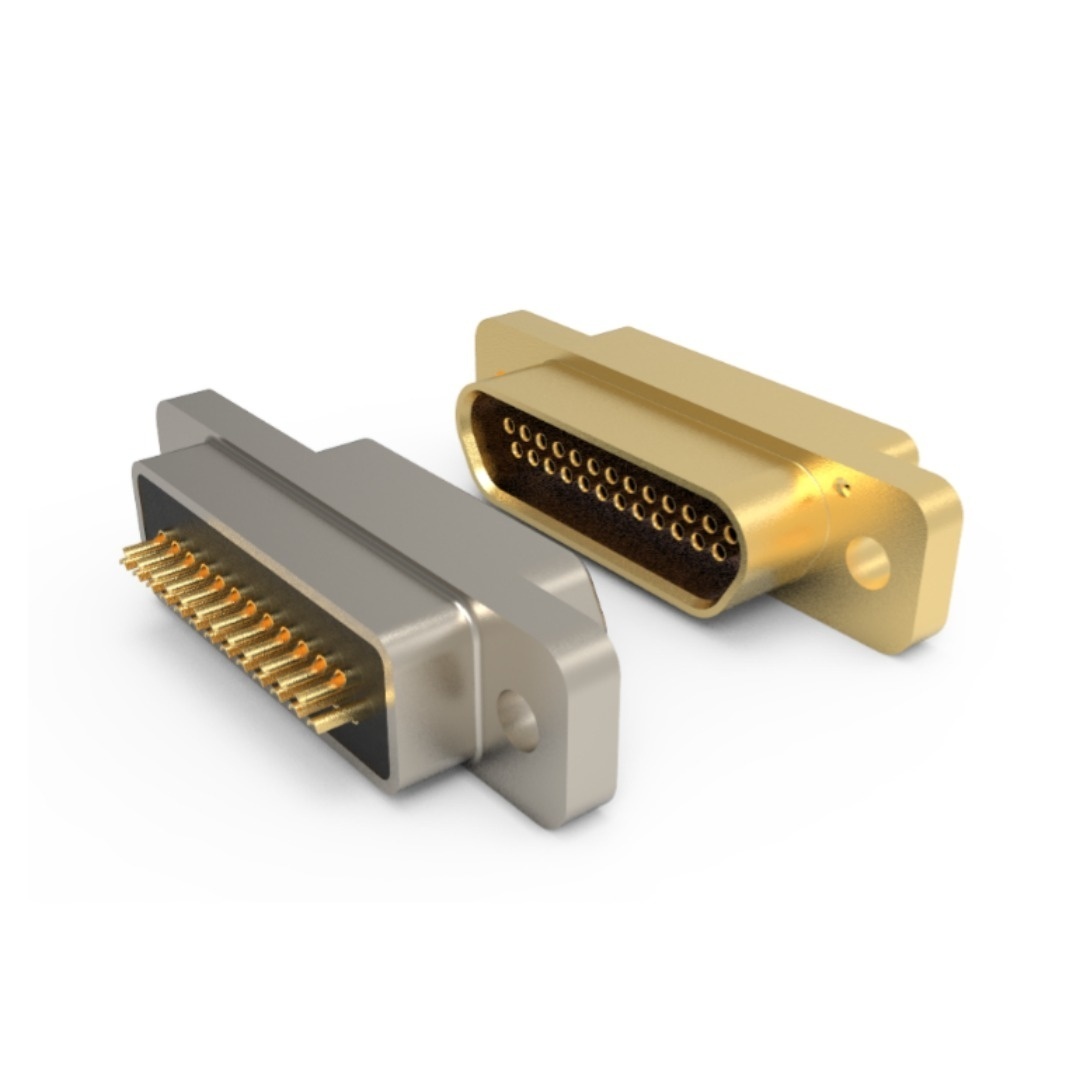

MDM-21PH011-A174-FR022 | Series: MDM Connectors
High performance microminiature connectors, ESA qualified for space applications. Meet the performance and dimensional requirements of ESA/ESCC 3401 and MIL-DTL-83513 specifications. Compliant to ESCC specification 3401/029.
| Property | Value |
|---|---|
Product Type | Connector |
Quality Level | Engineering Model |
Contacts Number | 21 |
Contact Type | Pin (Male) |
Wire Type or Size | AWG 26 |
Fixing Option | Through Hole (no hardware) |
Termination Type | Wire |
Wire Length | 914 |
Cable Type | MIL-W-16878/4 |
Shell Finish | Nickel |
Application | Harness |
- Compliant with ESA specifications
- High performance Micropin™ contact system: “Twist pin” spring male contact and tubular socket contact
- Solderable contacts
- Harnesses length flexibility
- Non-outgassing
- Low size connectors
- Low weight connectors
MDM-21PH011-A174-FR022 Applications
- Space equipment
- Satellites harnesses and payloads
- Military and Avionics
