MDM-115288-8141-A174-FR022

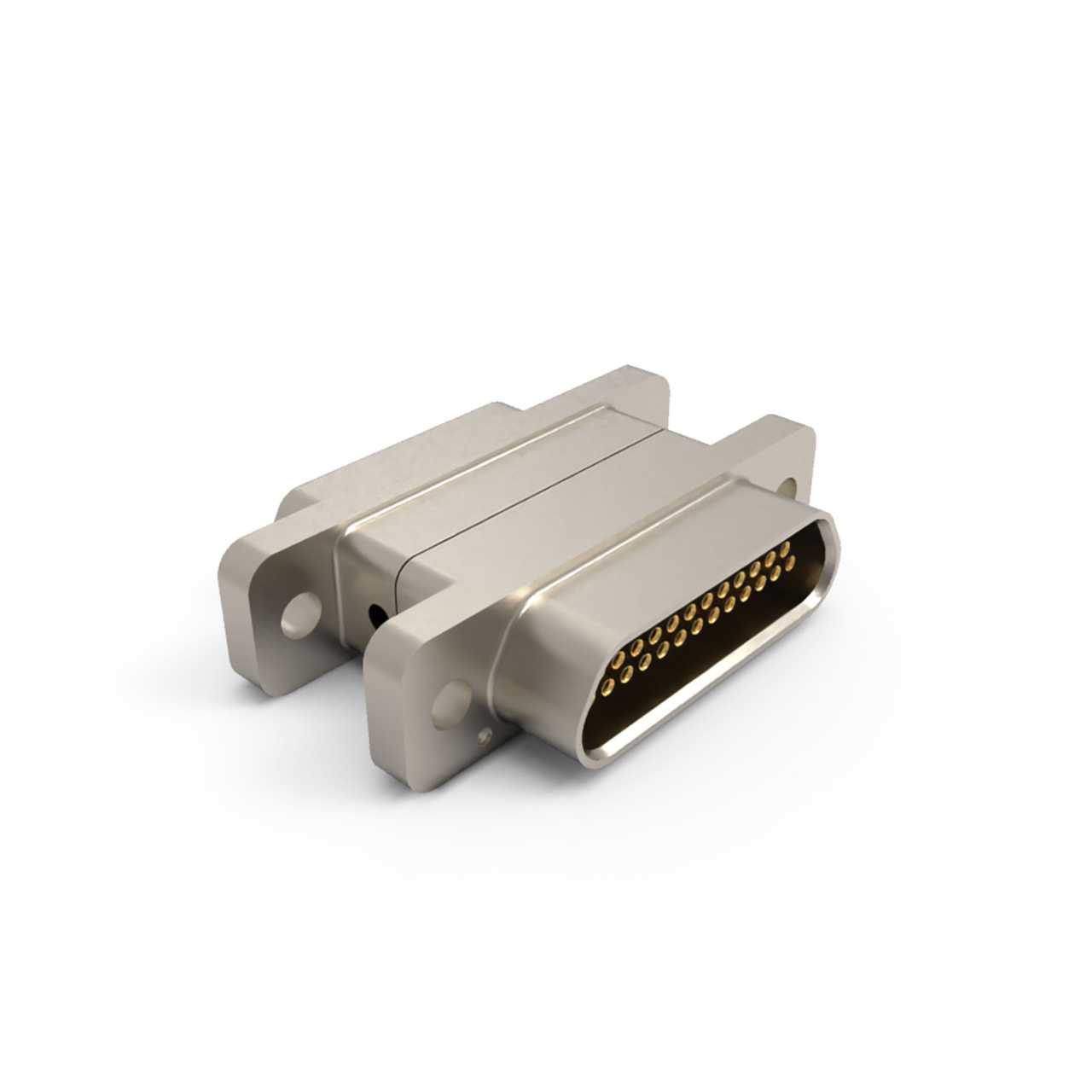

MDM-115288-8141-A174 (FR022) | Series: MDM Savers
High performance microminiature savers for space applications. Meet the performance and dimensional requirements of the ESCC 3401 specifications.Compliant to ESCC specification 3401/041.Intermediary device protecting main connector from frequent wear and damage. Suitable for use in space applications: Board to Cable, Cable to Cable.Twist Pin contacts technology.Sizes available: 9, 15, 21, 25, 31, 37, 51 ways and 51-2R.Pitch between two contacts rows: 1.09 mm (.043’’)Pitch between two horizontally adjacent contacts: 1.27 mm (.050’’)
| Property | Value |
|---|---|
Product Type | Connector |
Quality Level | Engineering model |
Contacts Number | 9 |
- Compliant with ESCC specifications
- High performance MicropinTM contact system: “Twist pin” spring male contact and tubular socket contact
- Non-outgassing
- Low size savers
- Low weight
MDM-115288-8141-A174-FR022 Applications
- Space equipment
- Satellite harnesses
- Engineering
- Launchers
- Military and Avionics
MDM-115288-8141-A174-FR022 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| C115288-8141 | MDM-115288-8141-A174 (FR022) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
