MTB1-8PFR113

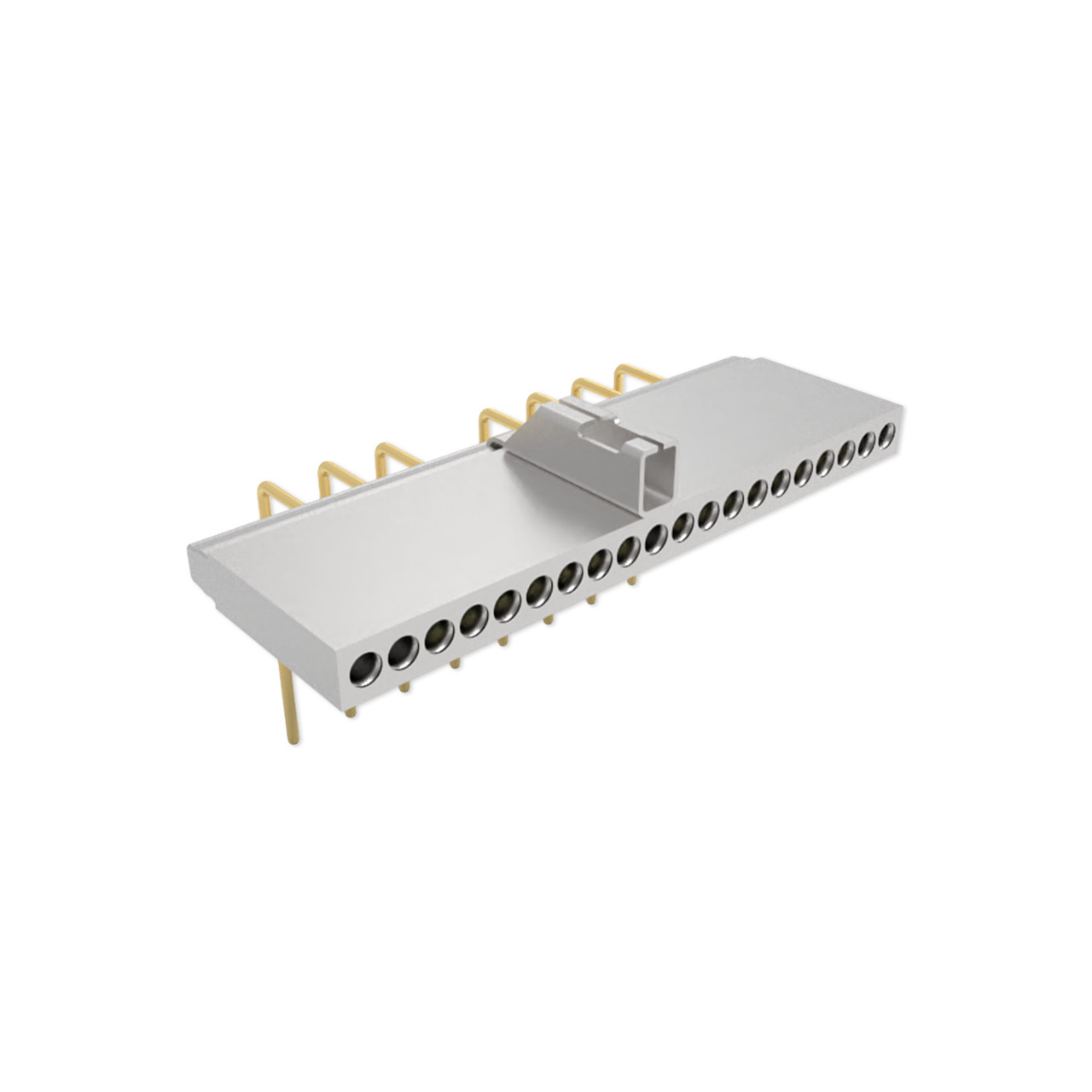

MTB1-8PFR113 | Series: MTB1
High performance Microminiature connectors, ESA qualified, for space applications. Space/High reliability MTB1 connectors meet stringent tests for outgassing and residual magnetism and are suitable for use in space, medical, and high performance military/aerospace applications. MTB1 connectors meet the performance of the ESCC 3401 Generic Specification and the dimensional requirements of the ESCC 3401/031 Detail Specification.
| Property | Value |
|---|---|
Product Type | Connector |
Quality Level | Engineering Model |
Contacts Number | 8 |
Contact Type | Pin (Male) |
Wire Type or Size | AWG 26 |
Termination Type | Wire |
Wire Length | 914 |
Cable Type | 3901/013/02B |
Application | Harness |
- Non-magnetic
- Non-outgassing
- High performance Micropin™ contact system (“twist pin” spring male contact and tubular socket contact)
- Single-in-line strip Insulator (no metal shell): 2 to 81 cavities
- Shell Size described by the total number of insulator cavities
- Contact centers: 1,27 (.050)
- Suitable for Board-to Board, Board-to Cable, or Cable-to Cable applications
- Non removable crimp type contacts
- The Connectors are supplied with the Terminations or Cables installed in factory
MTB1-8PFR113 Applications
- Space equipment
- Medical
- Military and Avionics
