0AFH0001XP
ACS ATO INLN PNLMT FSHLDR CARD | Series: ATO - AFHThis product is not recommended for new designs
AFH Series ATO fuse holders are versatile holders for in-line or panel mount applications. Interlock body design allows fuse holders to be snapped together. Use with ATO® Fuse 1 to 20 amps (standard duty) or 25-30A (Heavy Duty). Supplied with 8” wire loop.

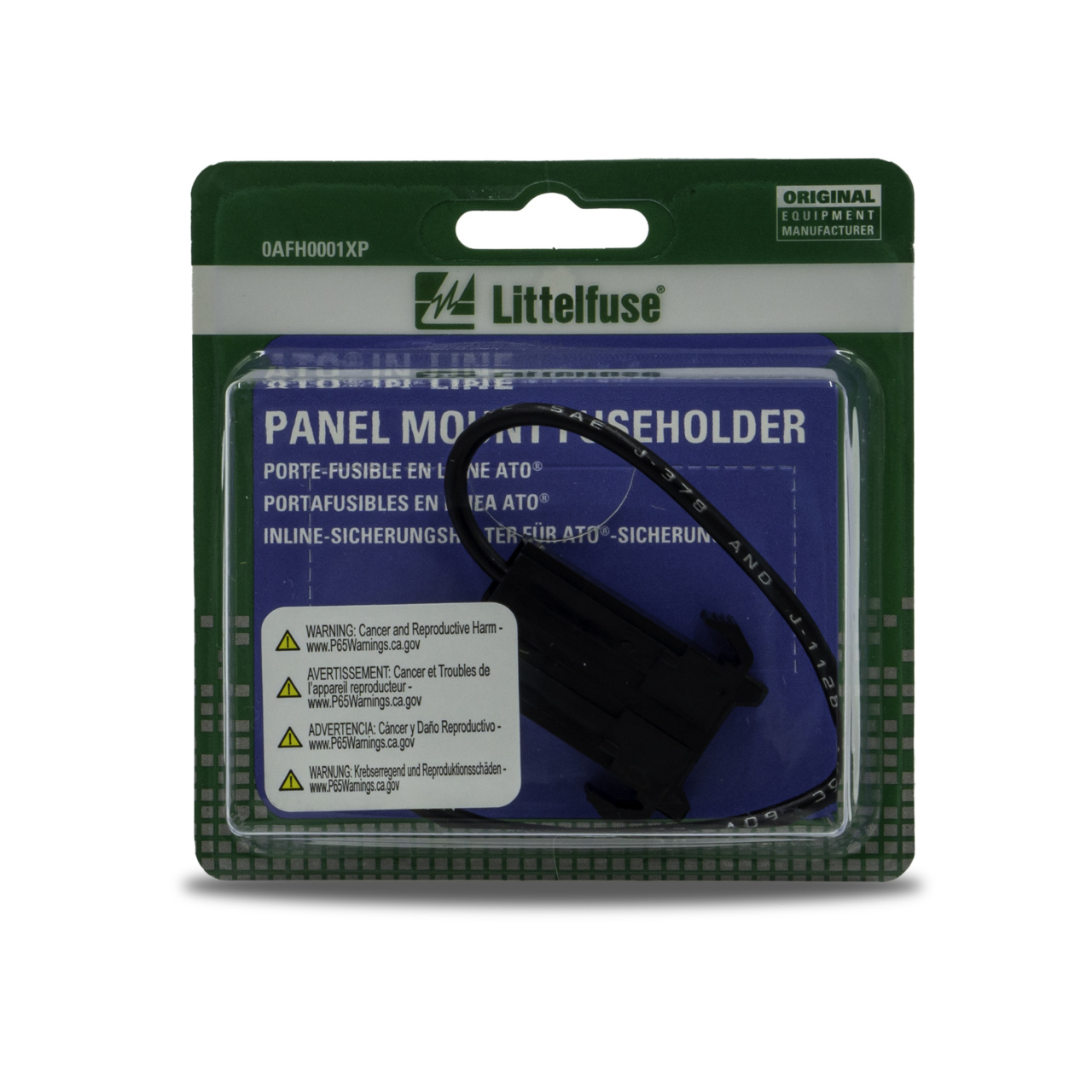

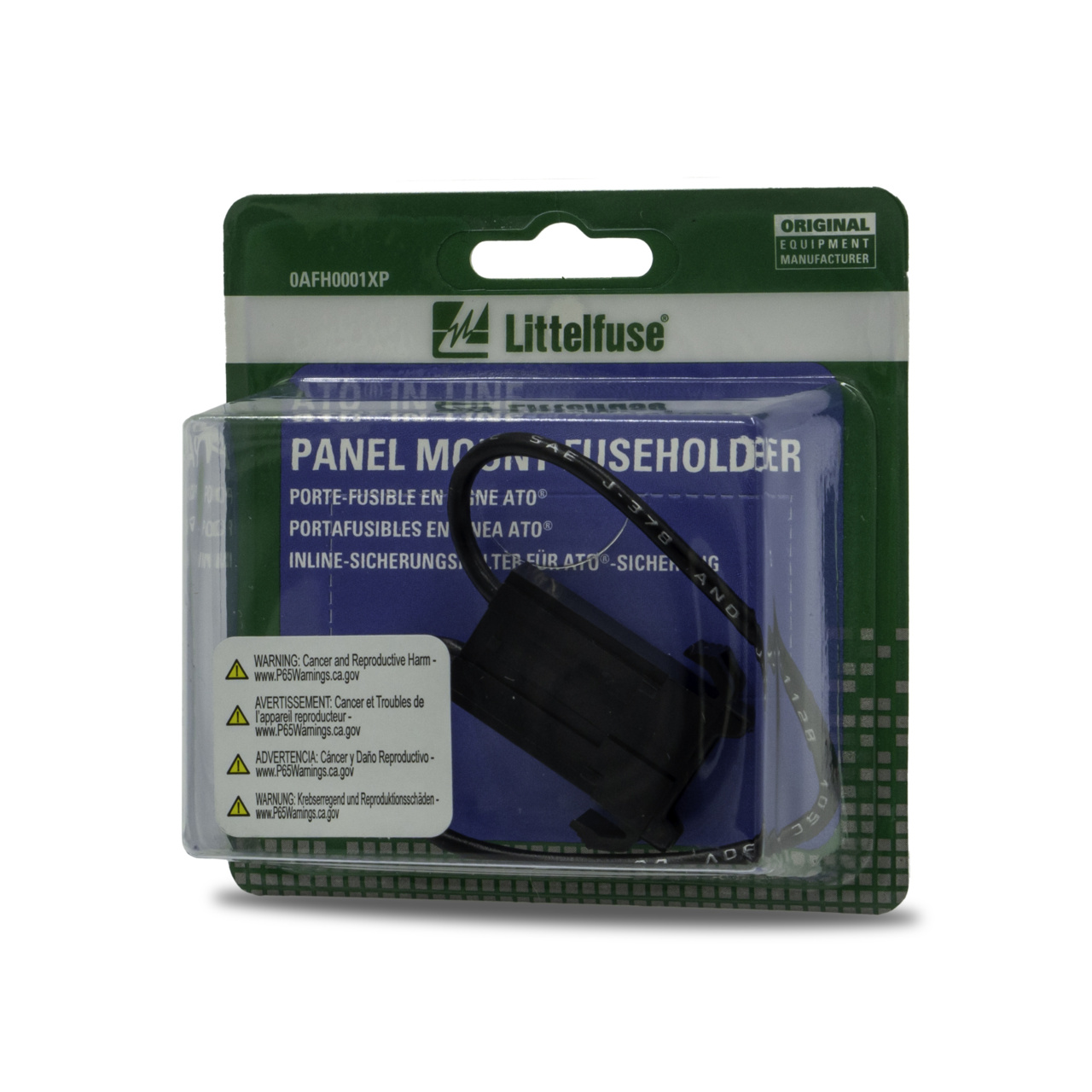

The ATO® AFH Series 32V In-Line Wire-Leaded Panel-Mount Fuse Holder can be used for either in-line installation or panel-mounting applications thanks to the 8" looped lead wire and the snap fit gripping arms. This configuration (0AFH0001XP) is rated for up to 20-amp ATO® blade fuses (sold separately) and features a black 14 AWG looped lead wire. Carded blister packaging allows simple retail display.
| Property | Value |
|---|---|
Mounting Method | IN LINE FUSE HOLDER |
Fuse Type | ATO |
Current Rating Max (A) | 20 |
Voltage Rating (V) | 32 |
Current Rating (Continuous) in Amps | 15 |
Flammability Rating | UL94 |
Ignition protection | V-0 |
Input Terminals | ATO FUSE BLADES |
Wire Description | VINIL PLASTIC INSULATED ANNEALED COPPER CABLE |
Wire Size
| 14 AWG |
- Accepts ATO® blade-style fuses (sold separately) up to 20 amps
- Black 14 AWG looped lead wire
- Carded blister packaging for easy retail display
