01520003TXN941

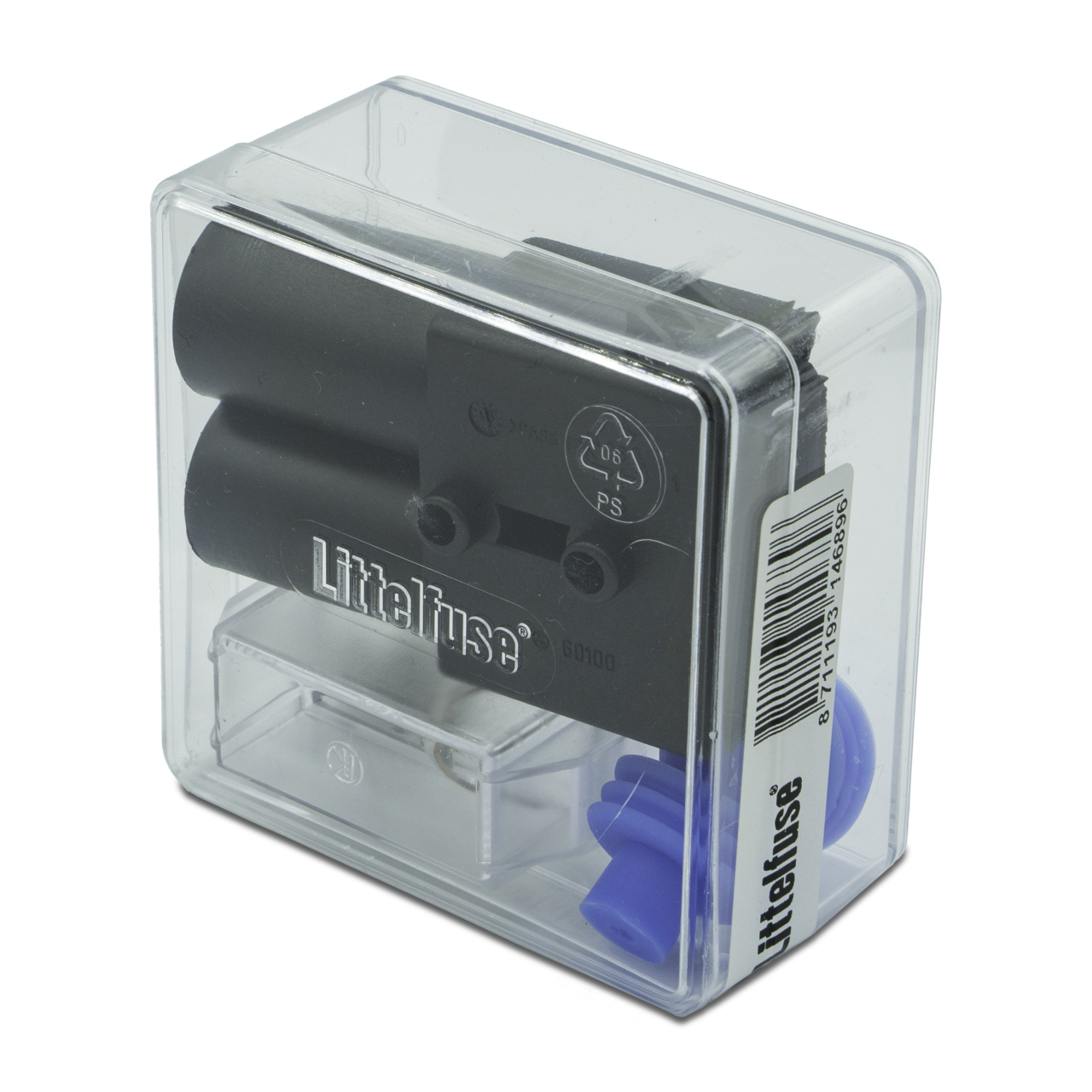

FUSEHOLDER M-ASSORTMENT 4-6M2 WITH COVER | Series: MAXI - 152The MAXI® 152 Series 32V In-Line Splashproof Blade Fuse Holder provides a simple way to install and protect a MAXI® blade-style fuse in a harsh automotive environment. The fuse holder cover and cable seals create an IP64-rated dust-tight, water-resistant fuse holder that protects the installed fuse (sold separately).
This MAXI® 152 Series water-resistant fuse holder (01520003TXN941) is rated for up to 80A MAXI® fuses and comes with cable seals for 2.5 to 6 mm² wire.
| Property | Value |
|---|---|
Mounting Method | In-Line Fuse Holder |
Fuse Type | Maxi |
Current Rating Max (A) | 80 |
Voltage Rating (V) | 32 |
Ingress Protection | IP64 |
Ignition protection | HB |
Flammability Rating | UL 94 V-0 |
- Compatible with MAXI® blade fuses up to 80A (sold separately)
- Heat-resistant fuse holder cover protects an installed fuse against dust and splashes
- Fuse holder body with a UL 94 HB flammability rating
- Cable seals accommodate 2.5 to 6 mm² wire
01520003TXN941 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 01520003TXN941 | FUSEHOLDER M-ASSORTMENT 4-6M2 WITH COVER |  8/3/2012 |  8/3/2012 |  CoC_RoHS10_01520003TXN941 | REACH211_Declaration_01520003TXN941 | Does Not Contain | Yes8/3/2012 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
