01520001TXN940
FUSEHOLDER -ASSORT. WITH SREWS/TERMINALS | Series: MAXI - MABThe MAXI® MAB Series 32V In-Line Screw Terminal Fuse Holder is designed to safely and easily replace hard-to-change fusible link wire. Compatible with up to 60-amp MAXI® blade fuses (sold separately), this automotive fuse holder is ideal for high-amp audio circuit protection. An interlocking fuse holder block feature allows 2-pole installation.

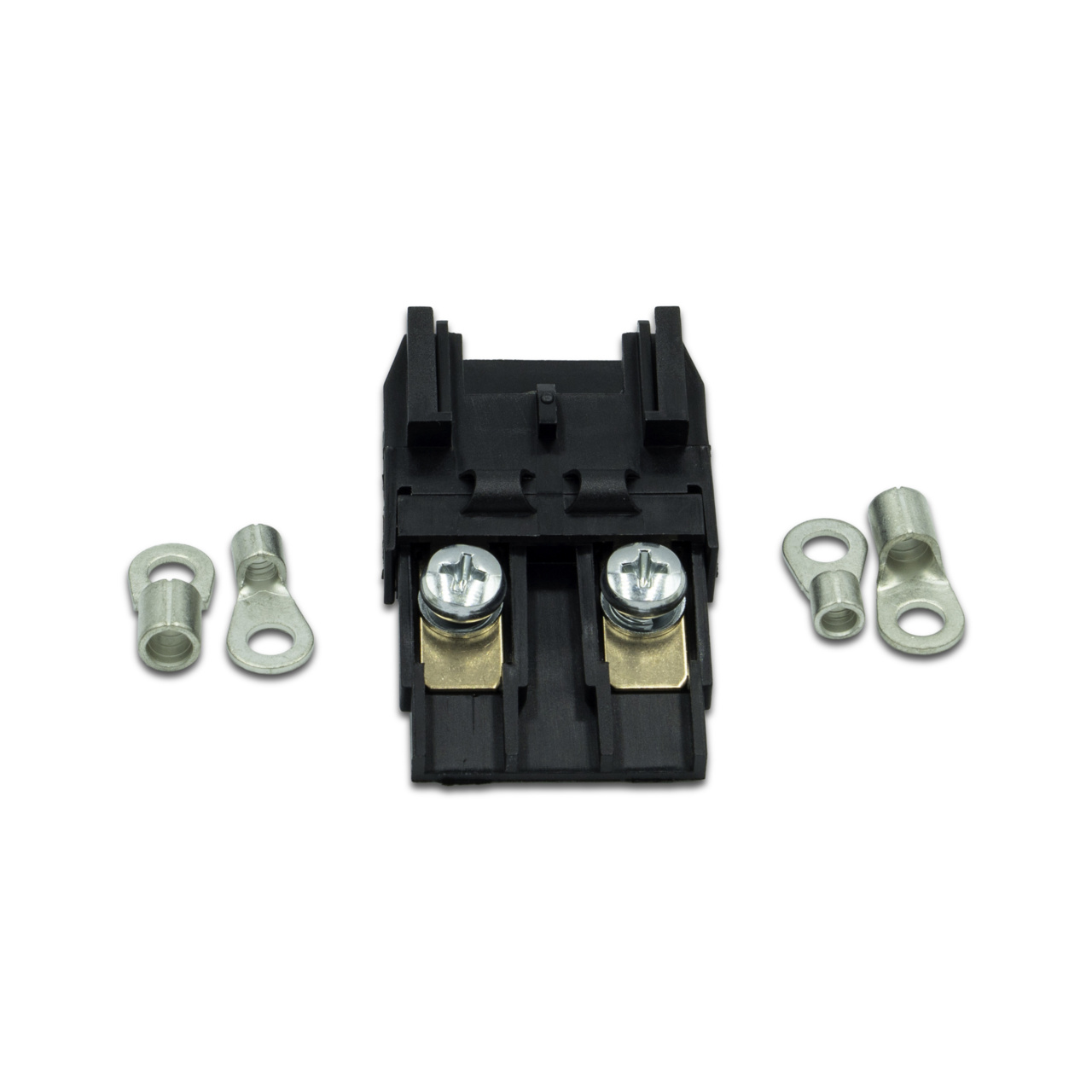

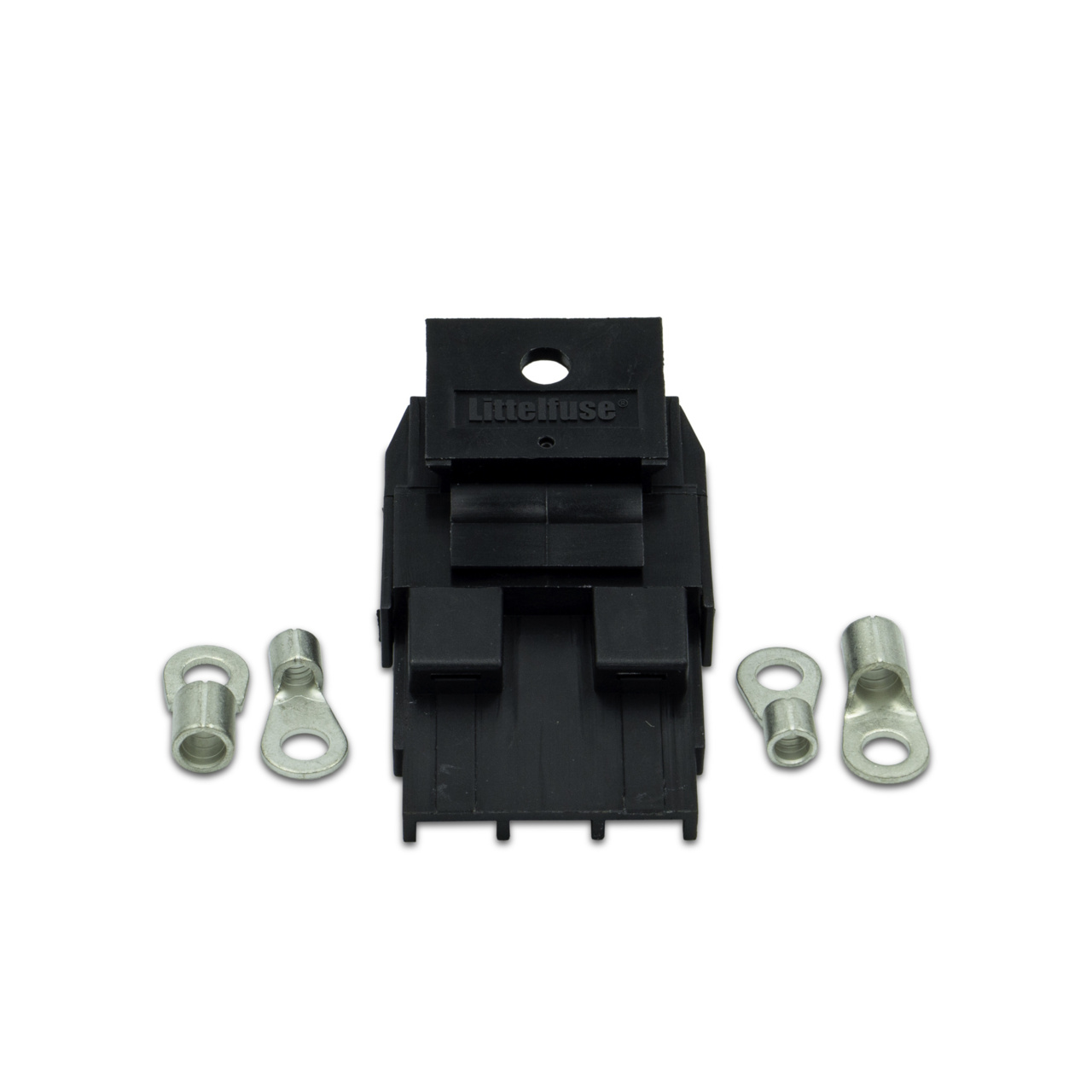

This configuration of the MAXI® MAB Series screw terminal fuse holder (01520001TXN940) includes a black body with a UL 94 V-2 flammability rating, terminals, and M5 screws.
| Property | Value |
|---|---|
Mounting Method | IN LINE FUSE HOLDER |
Fuse Type | Maxi |
Current Rating Max (A) | 60 |
Voltage Rating (V) | 32 |
Flammability Rating | UL94 |
Ignition protection | V-2 |
Input Terminals | 2.5 -6 MM² (DIN 46234) 6 -10 MM² (DIN 46234)" |
Wire Description | Cable Cross Section |
- Comes with a fuse holder body, terminals, and M5 screws for simple installation
- Includes 10 MAXI® MAB fuse holders
01520001TXN940 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 01520001TXN940 | FUSEHOLDER -ASSORT. WITH SREWS/TERMINALS |  8/3/2012 | No |  CoC_RoHS9_01520001TXN940 | REACH211_Declaration_Contain-_01520001TXN940ÿ | Contains | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
