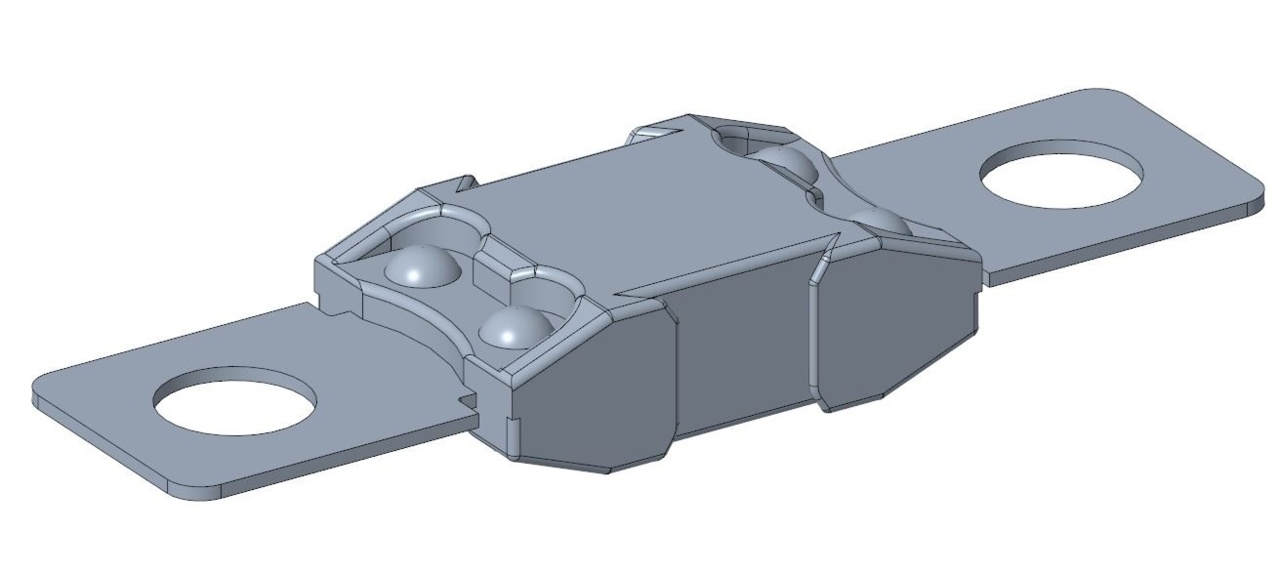

BF2 58V fuses use SLO-BLO® technology to provide reliable time-delayed protection to high-current wiring harnesses. The bolt-down automotive fuses feature transparent covers to simply the process of checking for blown fuses. Be sure to use the 150 A and 200 A fuses only for short circuit protection.
- Available with ampere ratings of 100 A to 300 A
- Interrupting rating of 1 kA at 58 V dc
- Operate at up to 125 ○C
- Tin-plated copper alloy terminals
- Color-coded PET-GF33 housings with UL 94 flammability ratings of V-0
- Transparent PES covers with UL flammability ratings of V-0
- M8 (12 Nm 1 Nm) mounting holes
- Refer to ISO 8820-5:2015
- UL Recognized in Canada and United States as UL Special Purpose Fuses
- Certified lead-free and RoHS compliant
- Color coding indicates ampere rating
- High-contrast ampere rating stamps aid identification
- Transparent covers make it easier to see when fuses blow
BF2 58V Parts
Link has been copied to clipboard
Filters
BF2 58V Applications
- Cars and SUVs
- Trucks
- Buses
- Offroad vehicles
- Watercraft as approved by Littelfuse
