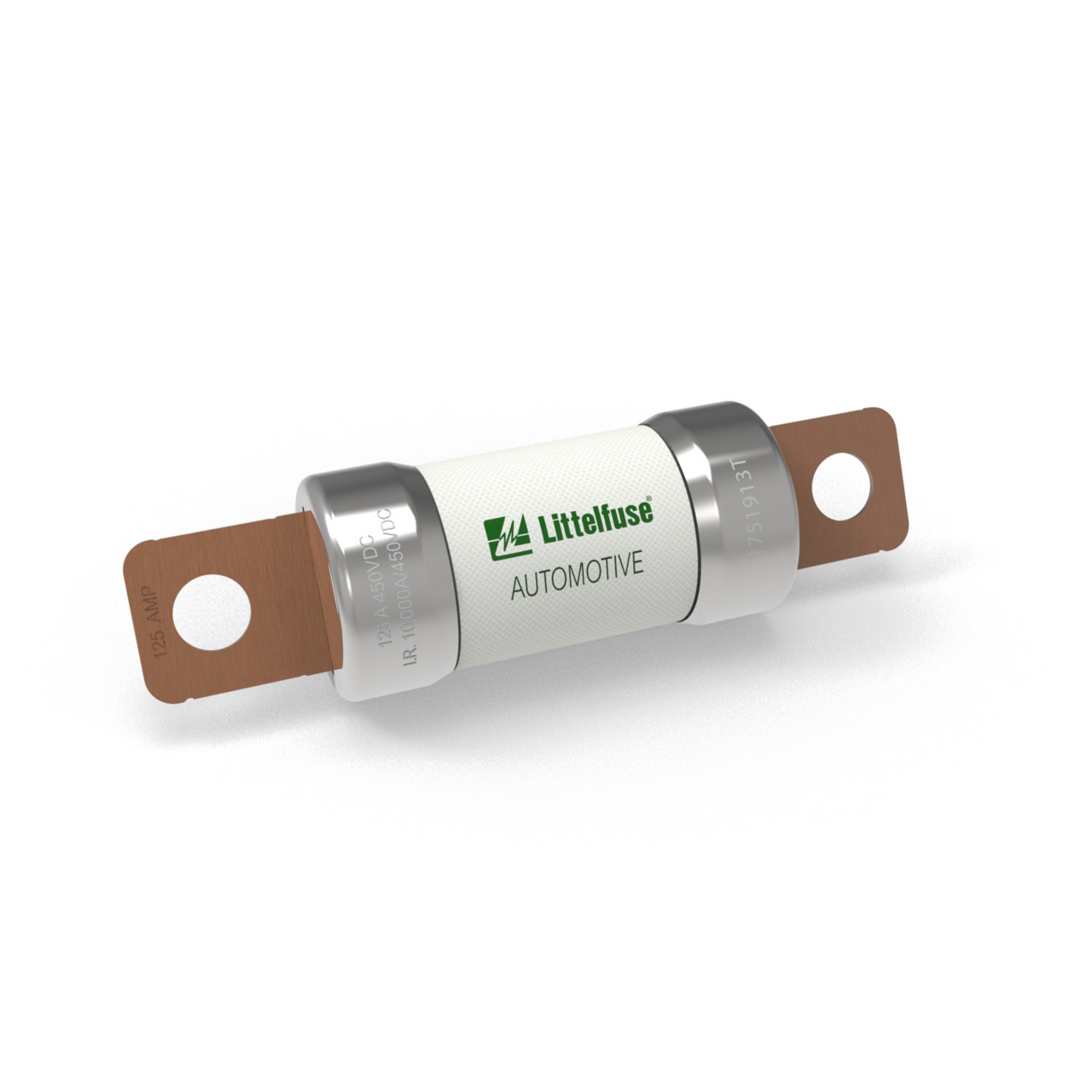

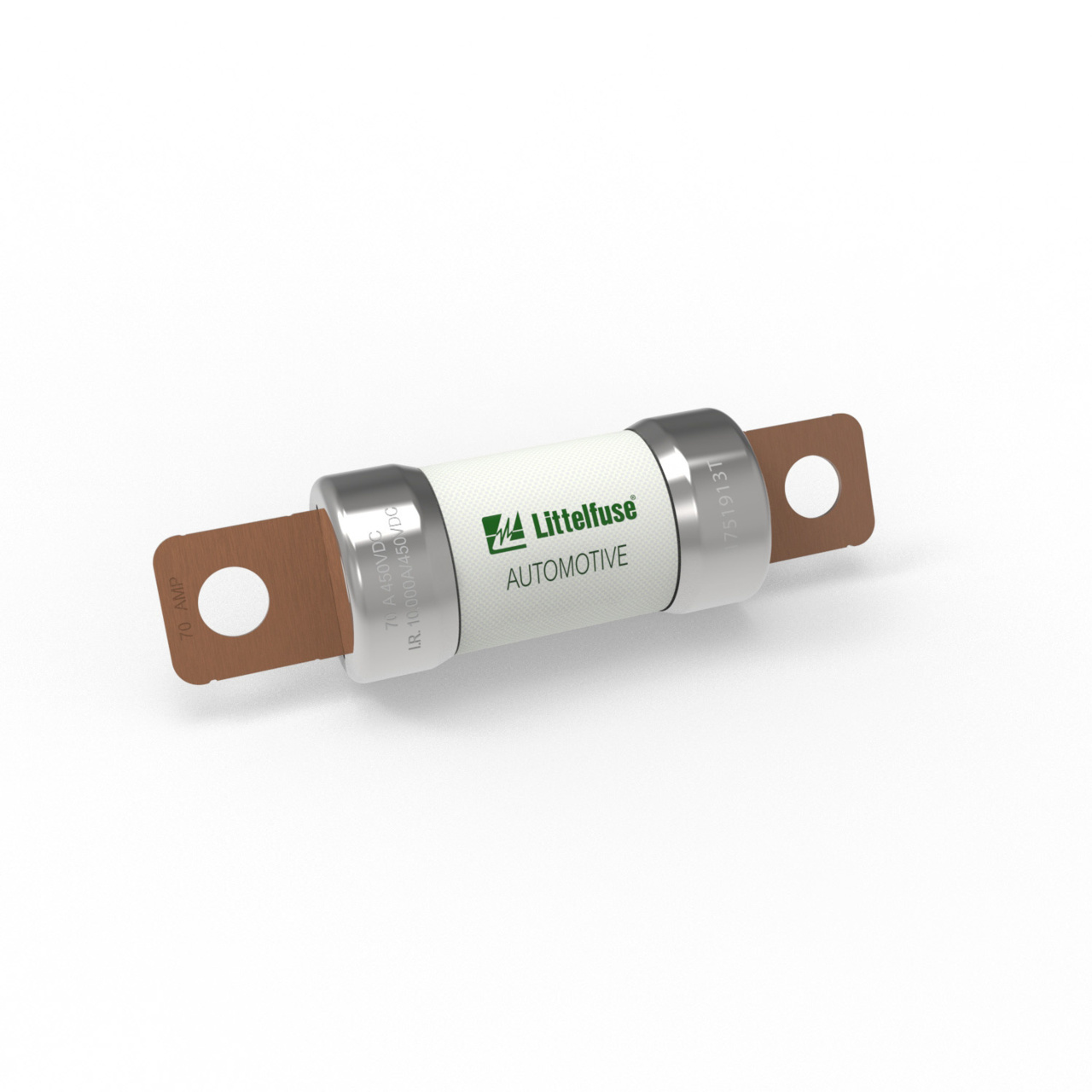

SHEV fuses employ diffusion pill technology. This enables them to provide predictable time-delayed circuit protection in high-voltage, high-current systems. These bolt down HC automotive fuses can be installed in most EVs and hybrid passenger vehicles.
- Available with ampere ratings of 60 A to 125 A
- Interrupting rating of 10 kA at 450 V dc
- Operates at up to 125 °C
- Melamine body with UL 94 flammability rating of V-0
- Copper alloy terminals and stainless steel end caps
- M6 mounting holes (5–7 Nm ISO prescription; 10 Nm maximum)
- Net weight 30 g ±5 g per fuse
- Refer to ISO 8820-8 and JASO D622
- Certified lead-free and RoHS compliant
- Ampere stamps on terminals aid identification
- Industry standard footprints
SHEV Applications
- EVs
- Hybrid vehicles
