0294070.MXJ-C

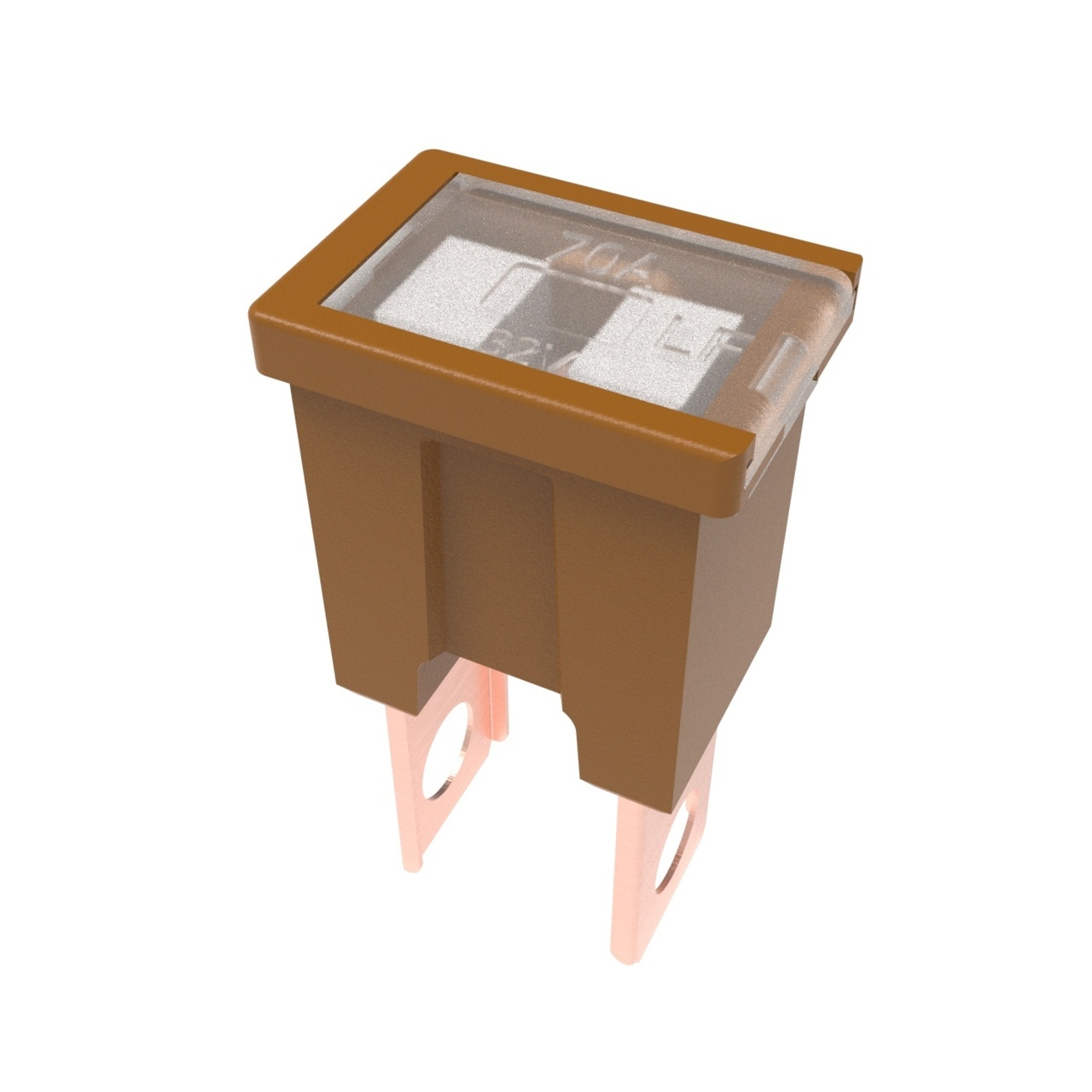

Fuse - PAL 294 ATK closed hole 32V 70A | Series: 294CThis 70 A 294C Series Auto Link PAL typically protects alternators and starters in Japanese automobiles. The fuse is rated at 32 V dc, and its blade terminals have lugs for mounting bolts.
OBSOLETE: 2017-07-28
| Property | Value |
|---|---|
Max Recommended Environmental Temperature (°C) | 125 |
Voltage Rating (V) | 32 |
Current Rating (A) | 70 |
Mounting Technology | Plug-In |
- Brown housing indicates 70 A rating
- Copper blade terminals with lugs
- Complies with JASO 0612
- Transparent cover makes it easier to see when fuse blows
- Can plug into a fuse box, be bolted in place, or both
0294070.MXJ-C Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 0294070.MXJ-C | Fuse - PAL 294 ATK closed hole 32V 70A | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
