L50QS125-100

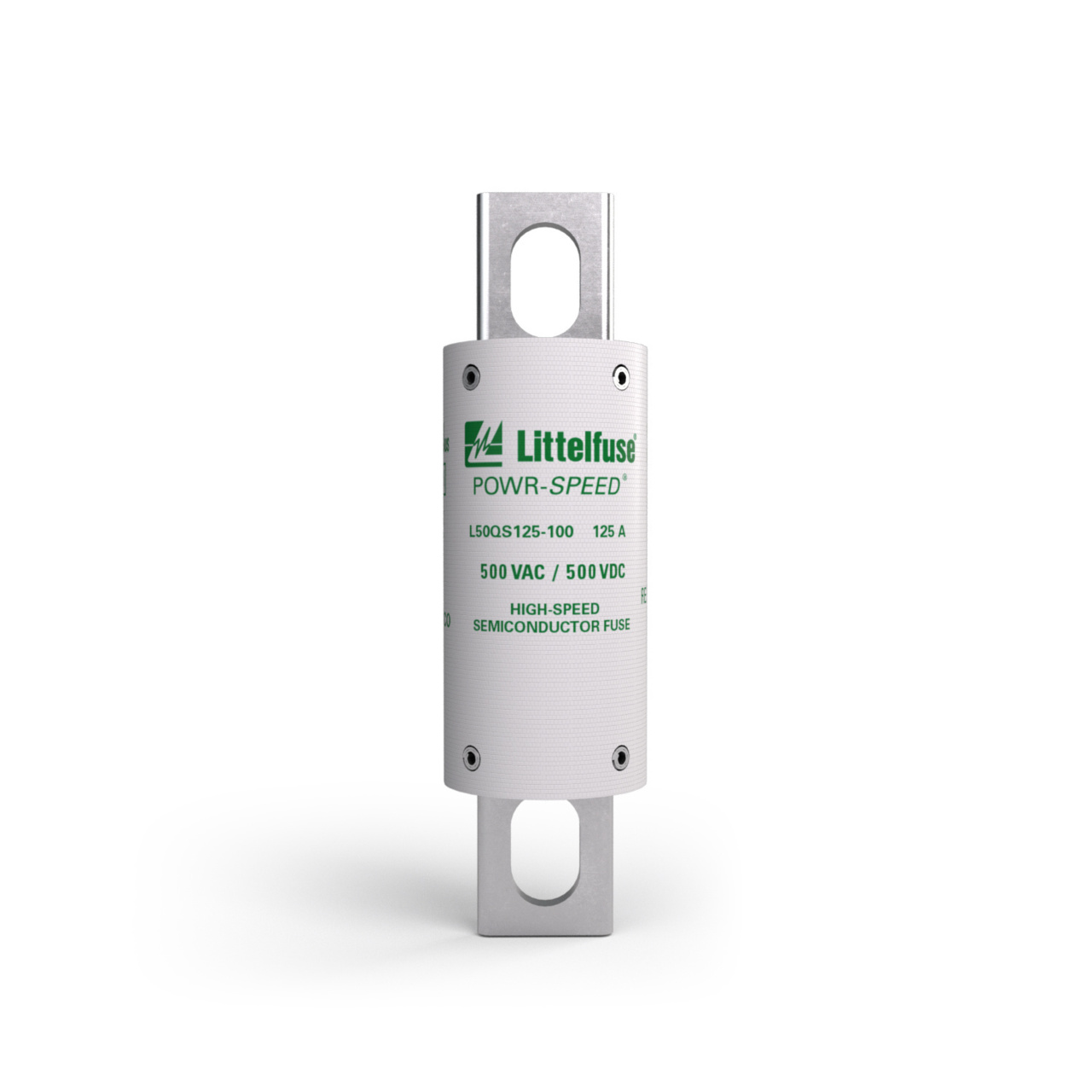

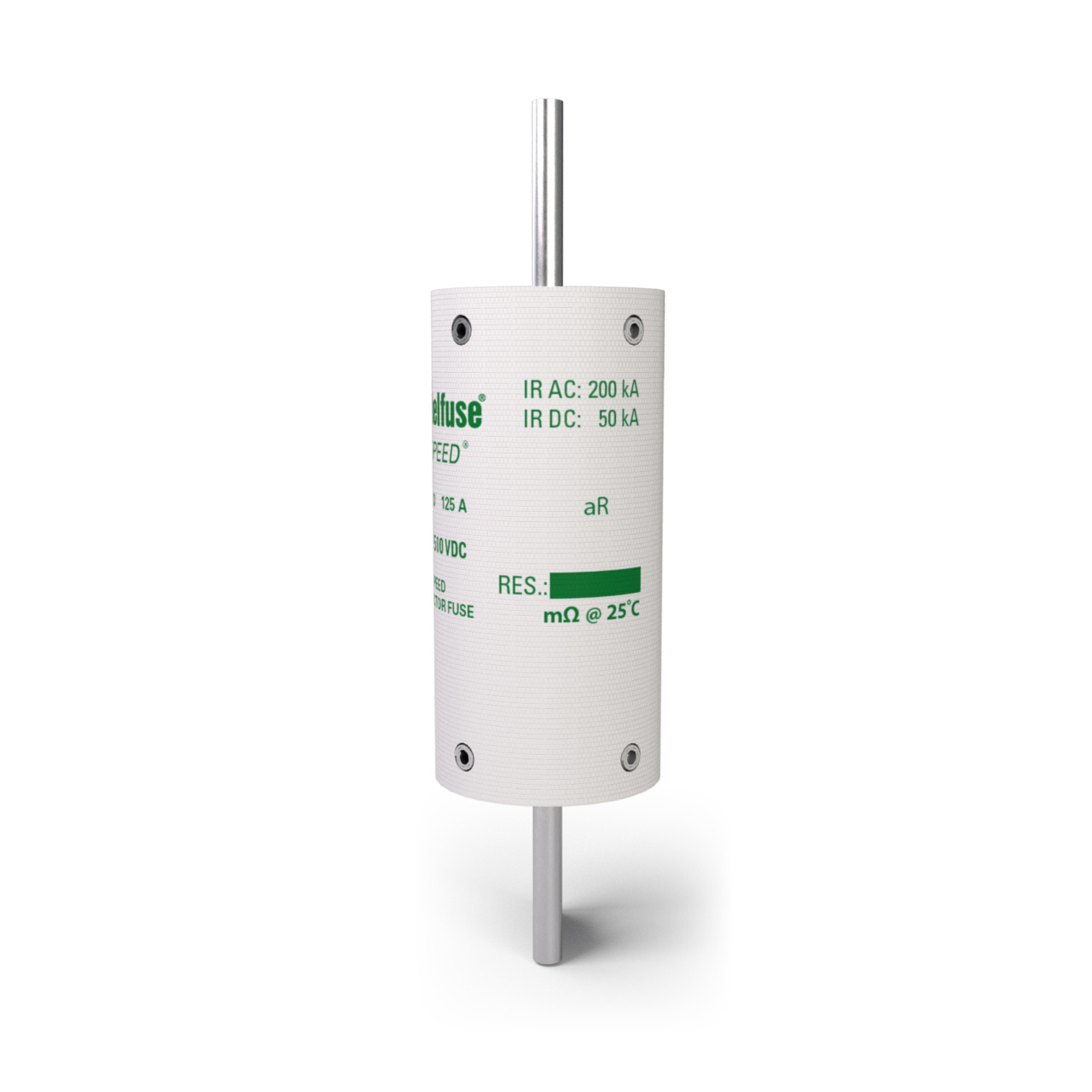

L50QS 125A-100 500V HIGH SPEED FUSE | Series: L50QS
The L50QS series is a next-generation high-speed fuse with optimized circuit protection for the safeguarding of sensitive, high-power semiconductor devices. These products are found in various sectors including pulp, paper and processing industries, cranes and heavy-lifting equipment, wastewater treatment plants, large factories and MRO facilities.
These POWR-SPEED fuses are extremely current limiting and are designed with lower energy let-through (I2t) characteristics, to provide balanced performance and extend longevity while lowering potentially equipment-damaging heat energy.
They are designed in the traditional North American bolted-style package and include a universal mounting option to meet customer requirements for a variety of application installation configurations.
These POWR-SPEED fuses are extremely current limiting and are designed with lower energy let-through (I2t) characteristics, to provide balanced performance and extend longevity while lowering potentially equipment-damaging heat energy.
They are designed in the traditional North American bolted-style package and include a universal mounting option to meet customer requirements for a variety of application installation configurations.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 125 |
Interrupting Rating
| 200 kA @ 500 Vac |
Opening | Very Fast-Acting (FF) |
Maximum AC Voltage (V) | 500 |
Voltage Rating (V) | 500 |
Amp Code (Part Number) | 125 |
Family style | Traditional Round Body |
Nominal Melting I2T (A2sec) | 1816 |
Indicating | No |
Interrupt Amperage | 200000 |
interrupt Amperage (A) - 2 | 50000 |
Interrupt Voltage Type ACDC - 1 | AC |
Interrupt Voltage Type ACDC - 2 | DC |
Interrupt Voltage | 500 |
interrupt Voltage (V) -2 | 500 |
Mounting Method | Bolt-In |
Operating Temperature Max (°C) | 125 |
Operating Temperature Min (°C) | -55 |
PG Holder | LSCR Series |
Product Marking | L50QS125A-100 |
Voltage Rating (Ac) | 500 |
Voltage Rating (Dc) | 500 |
Watts Loss 100 % | 20 |
Watts Loss 80 % | 11 |
