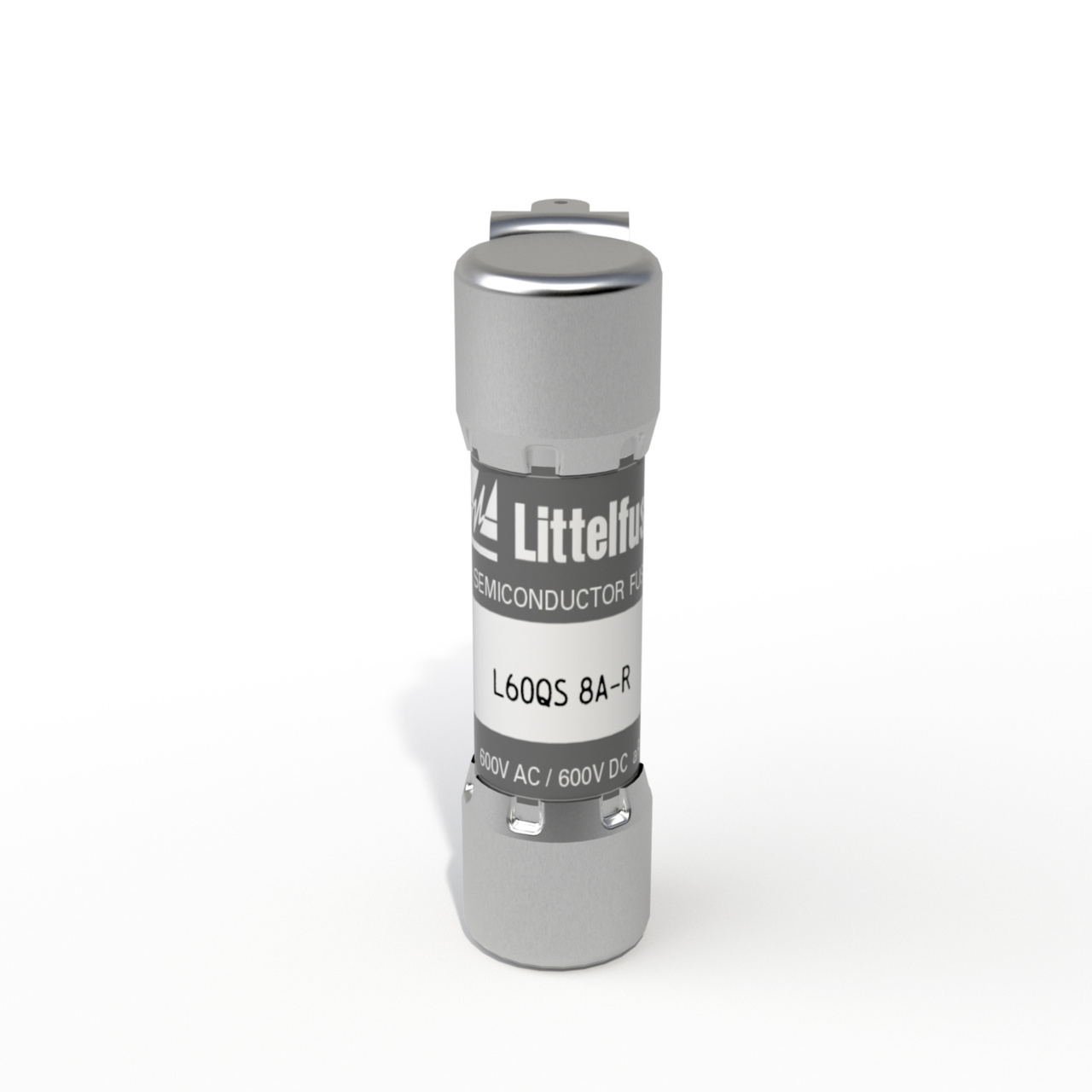

L60QS008R
FUSE HSF 10X38 CYL PCB 600V AC/DC 8A. | Series: L60QS
The Littelfuse QS series of High-speed Semiconductor Fuses is designed to safeguard power semiconductor devices. These cylindrical-shaped, 10x38 mm fuses with higher current ratings, are fast-acting and extremely current limiting. They provide balanced performance and reliable short-circuit protection to extend product longevity while lowering potentially damaging heat energy to the device being protected.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 8 |
Interrupting Rating
| 200 kA @ 600 Vac |
Nominal Melting I2T (A2sec) | 6 |
Resistance (Ω) | 0.0166 |
Opening | Very Fast-Acting (FF) |
Maximum AC Voltage (V) | 600 |
Maximum DC Voltage (V) | 600 |
Amp Code (Part Number) | 008 |
Body Material | Melamine |
Family style | Traditional Round Body |
Fuse Class | High-Speed |
IEC Standard | 60269-4 |
Indicating | No |
Interrupt Amperage | 200000 |
interrupt Amperage (A) - 2 | 100000 |
Interrupt Voltage Type ACDC - 1 | AC |
Interrupt Voltage Type ACDC - 2 | DC |
Interrupt Voltage | 600 |
interrupt Voltage (V) -2 | 600 |
Mounting Method | PCB Mount |
Operating Temperature Max (°C) | 125 |
Operating Temperature Min (°C) | -55 |
Product Marking | L60QS 8A-R |
Voltage Rating (Ac) | 600 |
Voltage Rating (Dc) | 600 |
Watts Loss 100 % | 1.3 |
Watts Loss 80 % | 0.7 |
