L60QS040

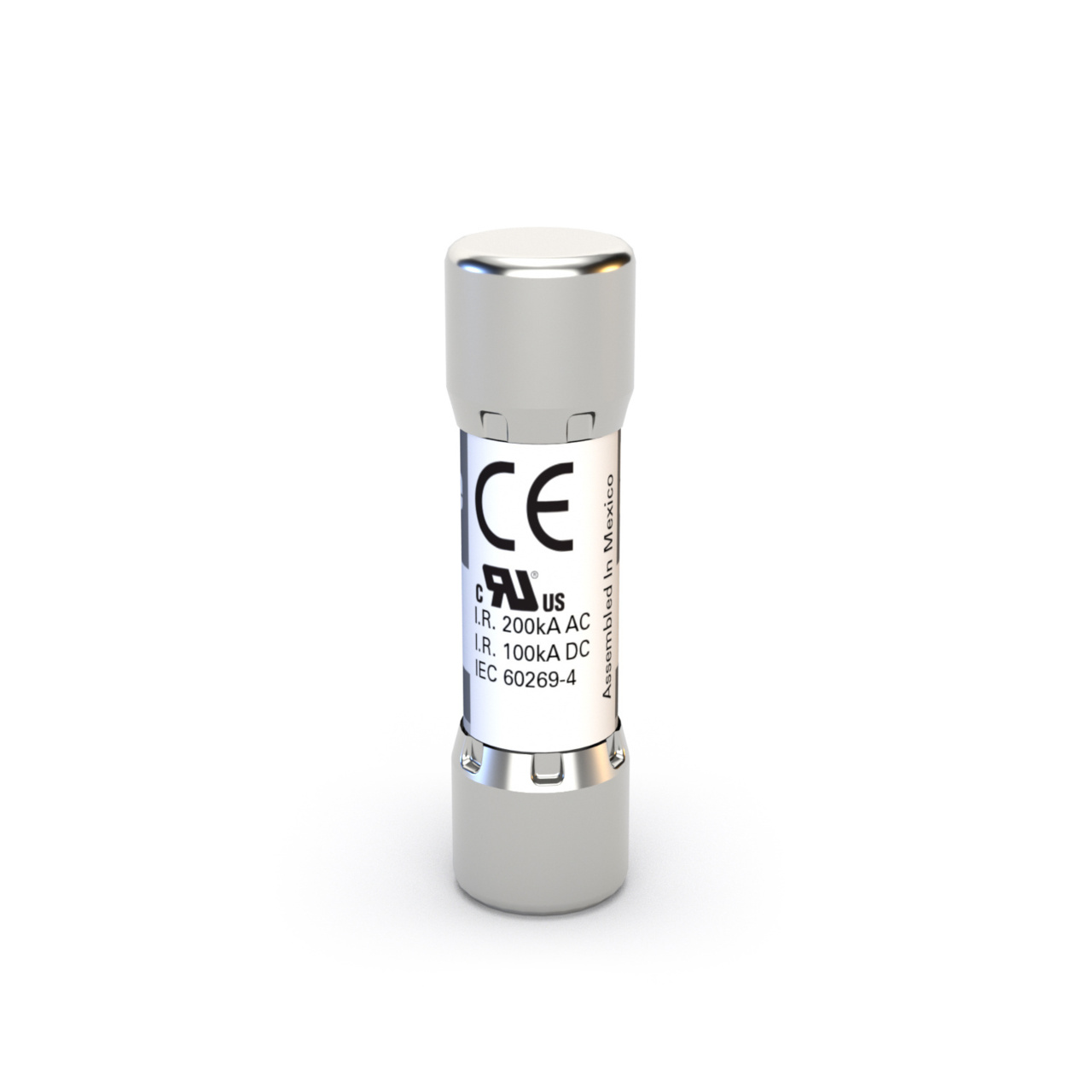

HSF 10X38 CYL FERRULE 600V AC/DC 40A | Series: L60QS
The Littelfuse QS series of High-speed Semiconductor Fuses is designed to safeguard power semiconductor devices.These cylindrical-shaped, 10x38 mm fuses with higher current ratings, are fast-acting and extremely current limiting. Theyprovide balanced performance and reliable short-circuit protection to extend product longevity while lowering potentiallydamaging heat energy to the device being protected.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 40 |
Interrupting Rating
| 200 kA @ 600 Vac |
Nominal Melting I2T (A2sec) | 277 |
Resistance (Ω) | 0.0024 |
Opening | Very Fast-Acting (FF) |
Maximum AC Voltage (V) | 600 |
Voltage Rating (V) | 600 |
Amp Code (Part Number) | 040 |
Family style | Traditional Round Body |
IEC Standard | 60269-4 |
Indicating | No |
Interrupt Amperage 1 | 200000 |
interrupt Amperage (A) - 2 | 100000 |
Interrupt Voltage Type ACDC - 1 | AC |
Interrupt Voltage Type ACDC - 2 | DC |
interrupt Voltage (V) -1 | 600 |
interrupt Voltage (V) -2 | 600 |
Mounting Method | Cartridge |
Operating Temperature Max (°C) | 125 |
Operating Temperature Minimum Celsius | -55 |
Product Marking | L60QS 40A |
Voltage Rating (Ac) | 600 |
Voltage Rating (Dc) | 600 |
Watts Loss 100 % | 6 |
