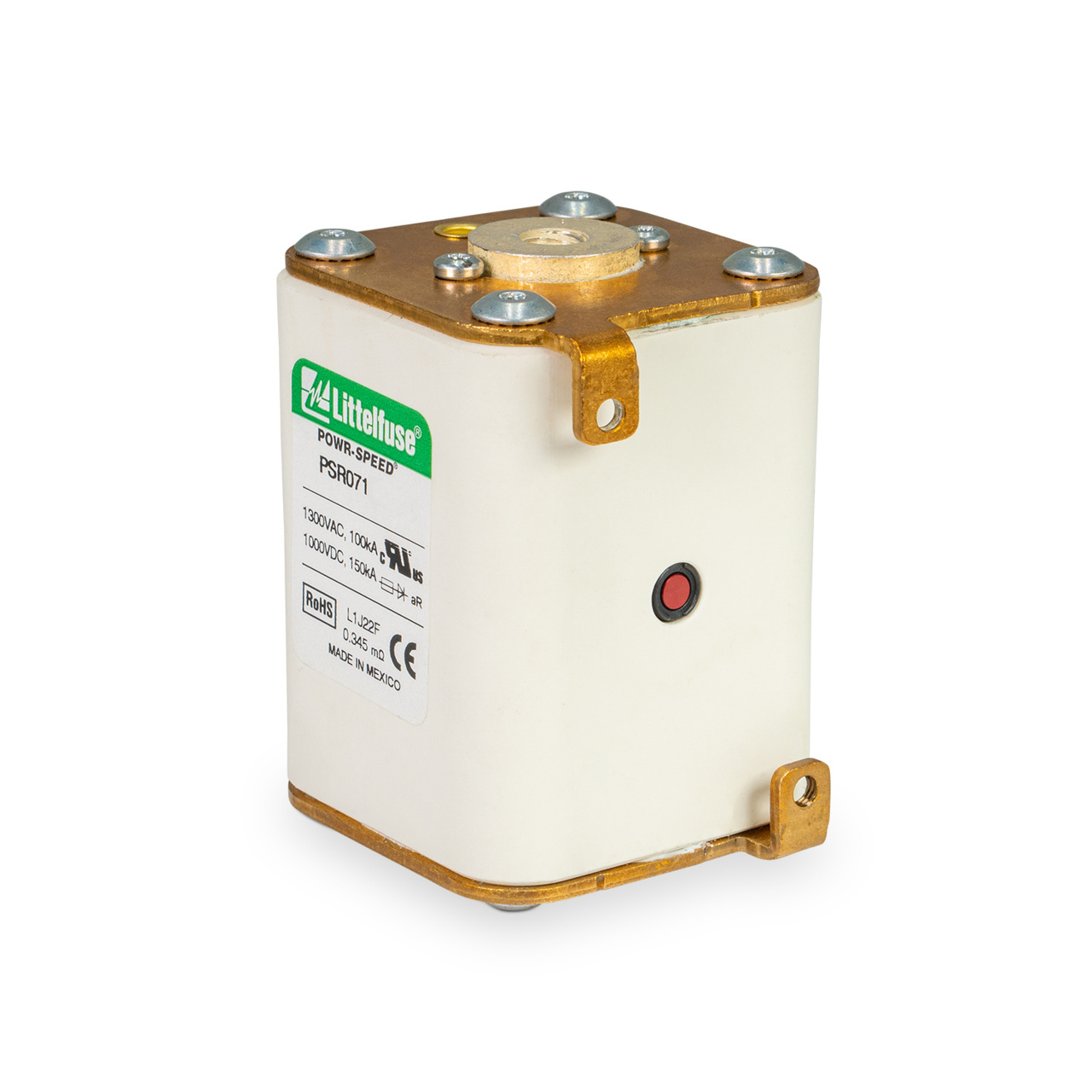

PSR071FL0315
POWR-SPEED SQB SIZE 71 FLUSH METRIC 315A | Series: PSR Flush End
Littelfuse PSR Series High-Speed Square Body Fuses are specially designed for protection of power semiconductor devices such as diodes, triacs, IGBTs, SCRs, MOSFETs and other solid state devices that are typically designed into power conversion and power conditioning equipment. Variable frequency drives, inverters, UPS, rectifiers and soft-starters are examples of typical equipment designed with sensitive power semiconductor devices that cannot withstand any line surge or overcurrent conditions and require high-speed protection.
Littelfuse POWR-SPEED® PSR Series products offer optimized circuit protection at the extremely fast speed required to protect modern day power conversion devices. Such products are commonly found in numerous applications including pulp and paper industries, cranes and heavy-lifting equipment, processing industries, wastewater treatment plants and various large factories and MRO facilities.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 315 |
Interrupting Rating
| 100 kA @ 1300 Vac |
Opening | Very Fast-Acting (FF) |
Case Size | 71 |
Amp Code (Part Number) | 315 |
Family style | Square Body |
Indicating | Yes |
interrupt Amperage (A) - 1 | 100000 |
interrupt Amperage (A) - 2 | 150000 |
Interupt Voltage Type | AC |
interrupt Voltage Type AC/DC) - 2 | DC |
interrupt Voltage (V) -1 | 1250/1300 |
interrupt Voltage (V) -2 | 1000 |
Mounting Method | Flush End |
Termination Type | Metric Thread |
- Best in class dc performance
- Extremely current limiting
- Superior cycling capability
- Global certification cURus, CCC, IEC
- Direct bus-bar mount design
- Visual and optional microswitch fuse blown indication
- Low watt-loss design
- Compliance with US and Canadian requirements
- Class aR performance according to IEC60269-4
PSR071FL0315 Applications
- Power Conversion Devices (UPS, Inverter, Rectifiers, Drives)
- DC Systems (DC Common Bus, DC Injection Braking)
- Battery Protection Application (Energy Storage Systems)
- Electric Vehicle Charging Stations
- Heaters and Power Supplies
PSR071FL0315 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| PSR071FL0315Z | POWR-SPEED SQB SIZE 71 FLUSH METRIC 315A |  2/23/2017 |  2/23/2017 |  CoC_RoHS10_PSR071FL0315Z | REACH209_Declaration_PSR071FL0315Z | Does Not Contain | Yes2/23/2017 | IPC_PSR071FL0315Z | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
