SPXI005M

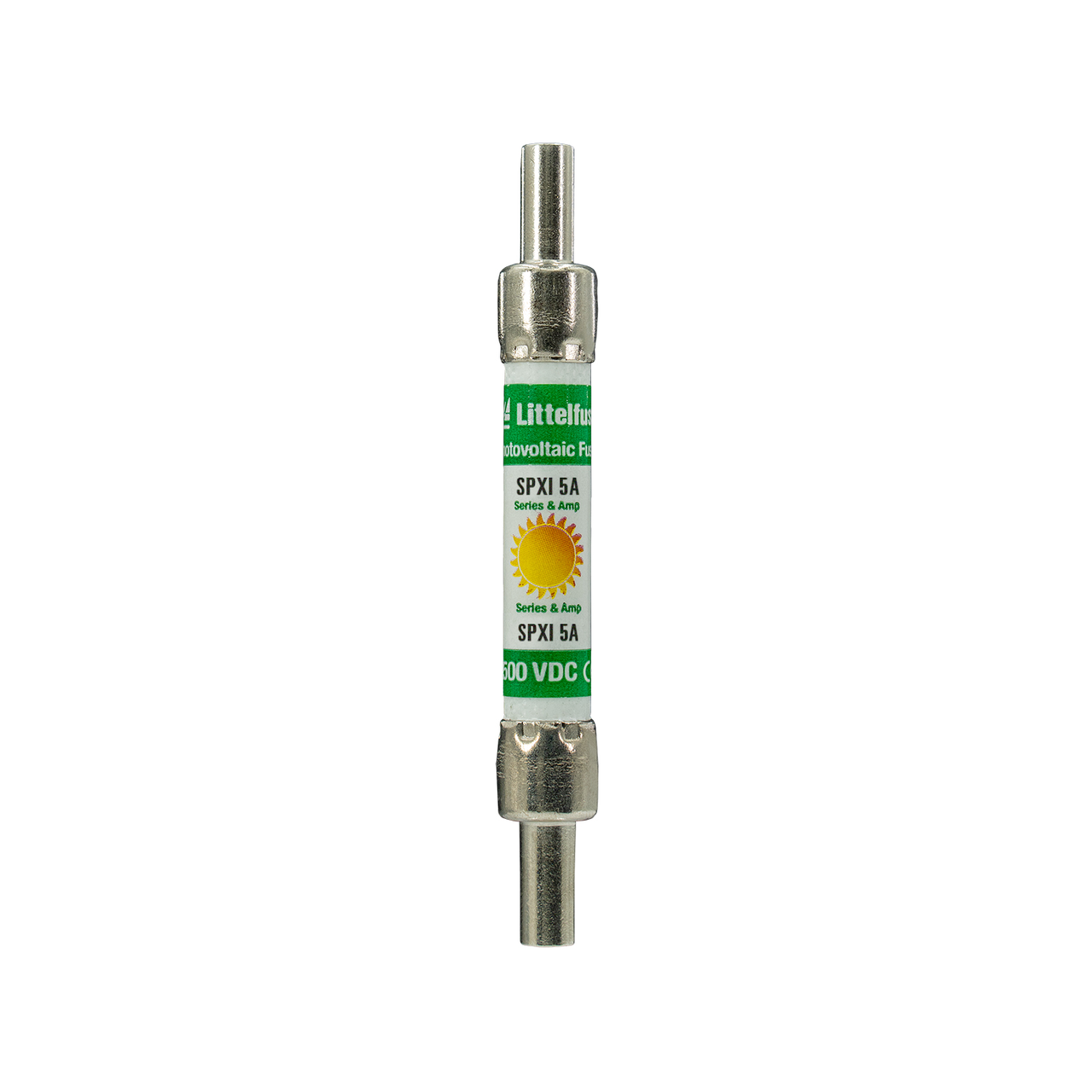

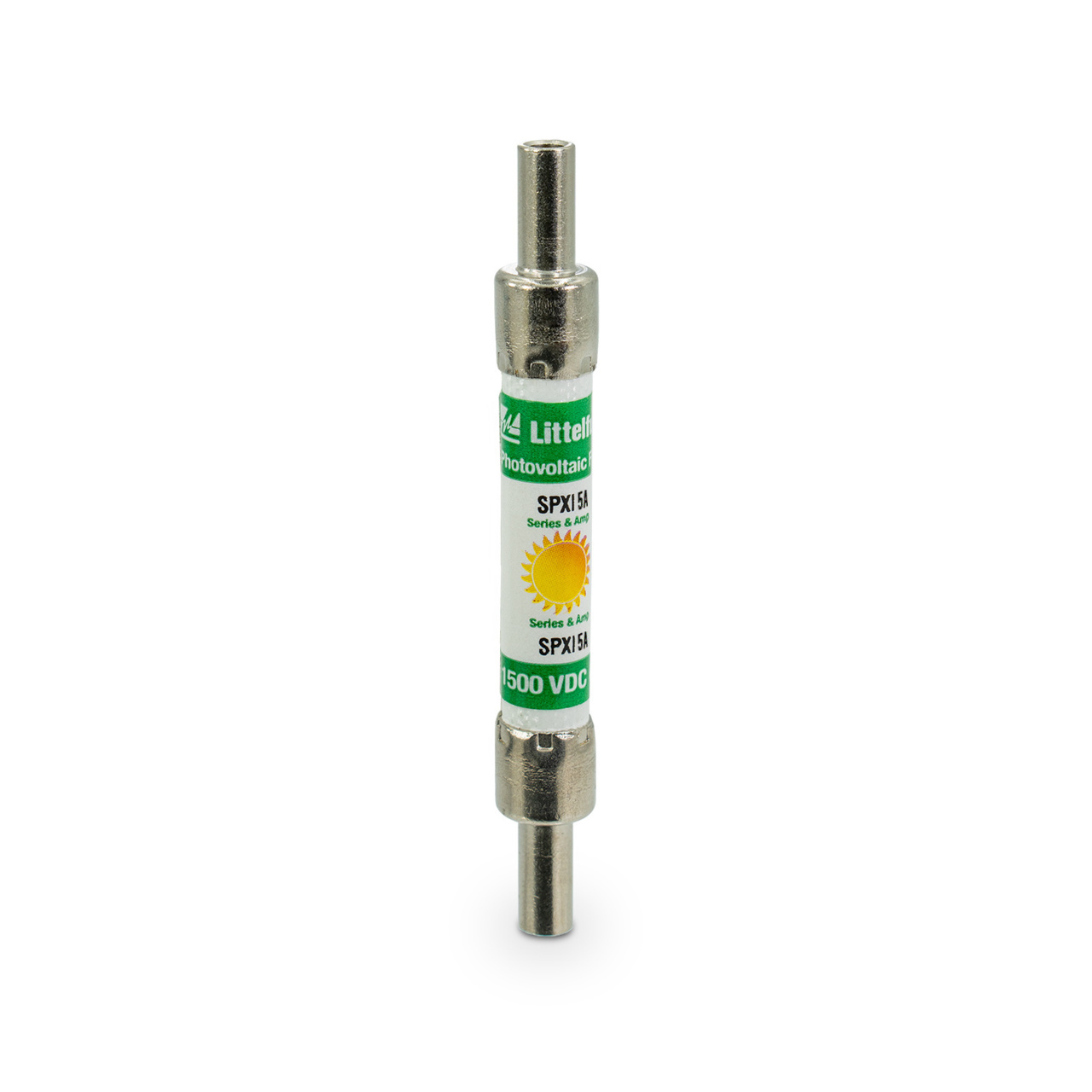

1500VDC 5 AMP INLINE COMPACT FUSE 10 PK | Series: SPXI
The Littelfuse SPXI solar fuse is designed to integrate into an in-line assembly within a wire harness. The fuse provides photovoltaic (PV) protection that meets UL 248-19 for photovoltaic applications. The SPXI can be electrically insulated by either overmolding or using heat-shrink.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 5 |
Interrupting Rating
| 30 kA |
Opening | Fast-Acting (F) |
Maximum DC Voltage (V) | 1500 |
Amp Code (Part Number) | 5 |
Body Material | Melamine |
Family style | Solar Protection |
Nominal Melting I2T (A2sec) | 38 |
Indicating | No |
Interrupt Voltage Type ACDC - 1 | DC |
Interrupt Voltage | 1500 |
Mounting Method | In-Line |
Nominal Power Dissipation (W) | 2.22 |
Resistance (Ω) | 0.04754 |
Operating Temperature Max (°C) | 125 |
Operating Temperature Min (°C) | -55 |
- UL 248-19 Recognized
- 50 kA interrupting rating
- No fuse holder required
- Compact footprint
SPXI005M Applications
- Photovoltaic high-capacity homerun, truck harness, and wire harness
SPXI005M Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| SPXI005.TXM | 1500VDC 5 AMP INLINE COMPACT FUSE 10 PK | View More |
