SPXV025

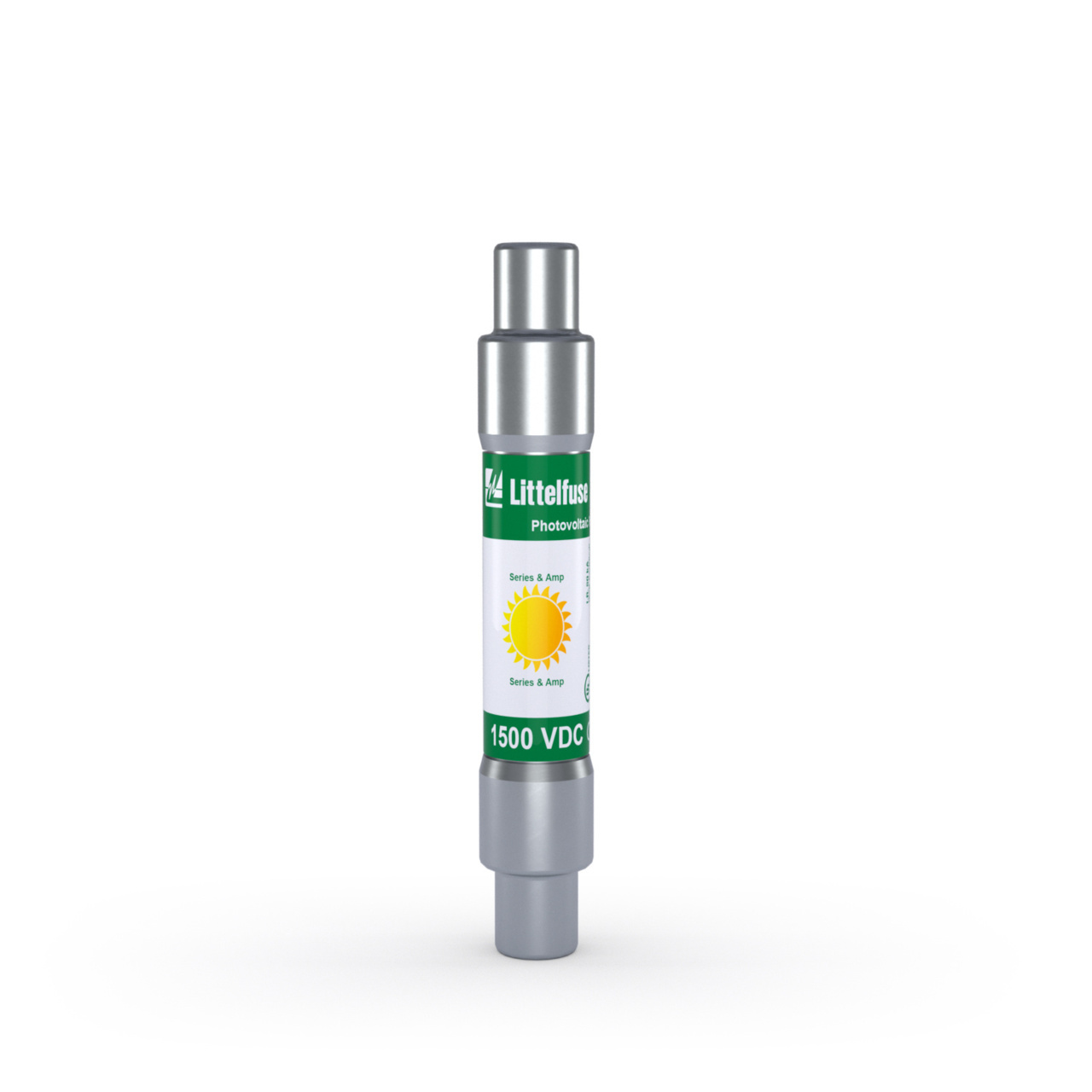

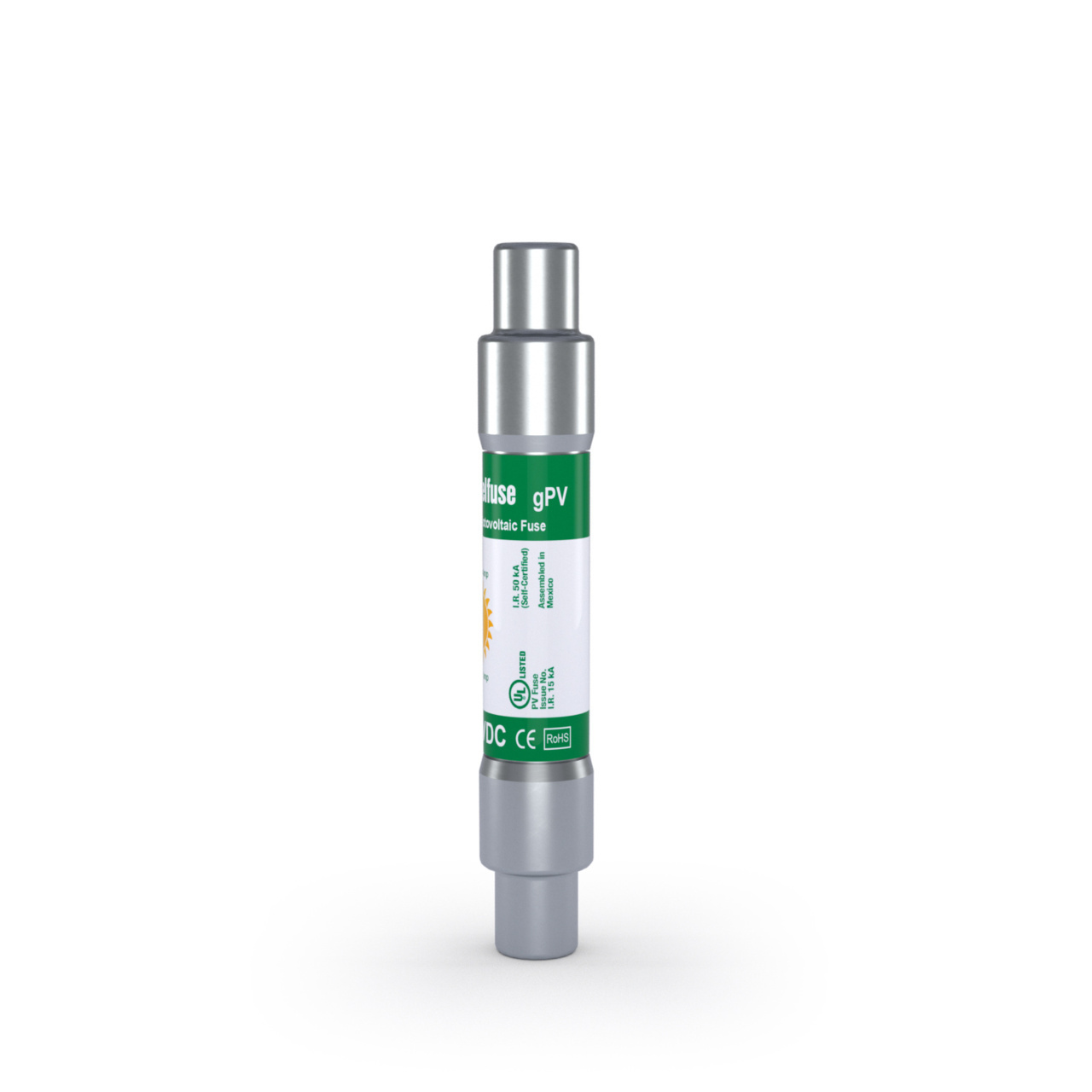

1500 VDC 25 AMP PHOTOVOLTAIC FUSE | Series: SPXV
The Littelfuse SPXV solar string fuse is designed specifically for 1–60 A 1500 V dc applications.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 25 |
Interrupting Rating
| 30 kA |
Opening | Fast-Acting (F) |
Voltage Rating (V) | 1500 |
Amp Code (Part Number) | 25 |
Body Material | Melamine |
Family style | Solar Protection |
IEC Standard | 60269-6 |
Indicating | No |
Interrupt Voltage Type ACDC - 1 | DC |
Interrupt Voltage | 1500 |
Mounting Method | Fuse Block |
- UL 248-19 Listed
- 50 kA interrupting rating
SPXV025 Applications
- Inverters
- Combiner boxes
SPXV025 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| SPXV025.T | 1500 VDC 25 AMP PHOTOVOLTAIC FUSE |  7/12/2015 |  7/12/2015 | View More |
