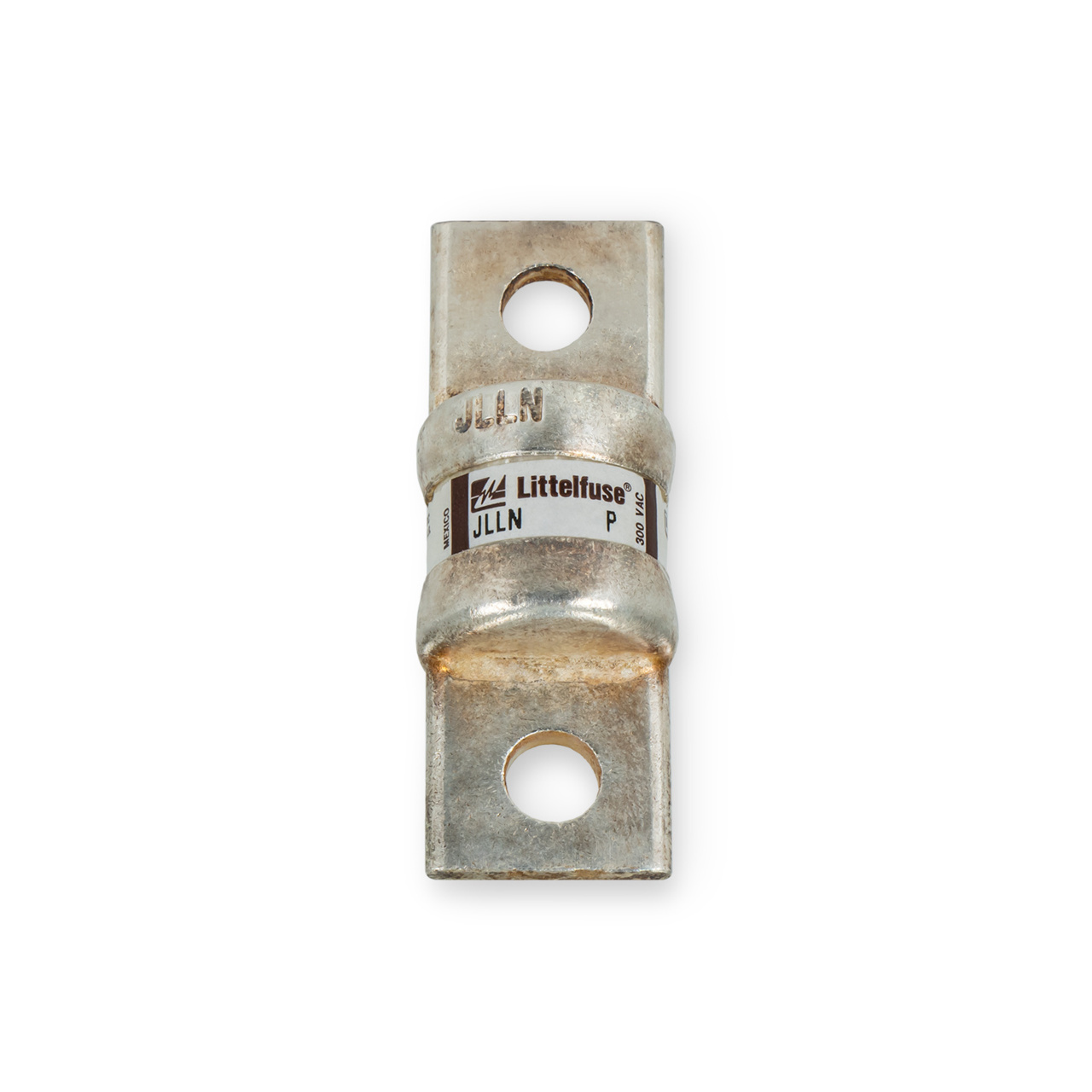

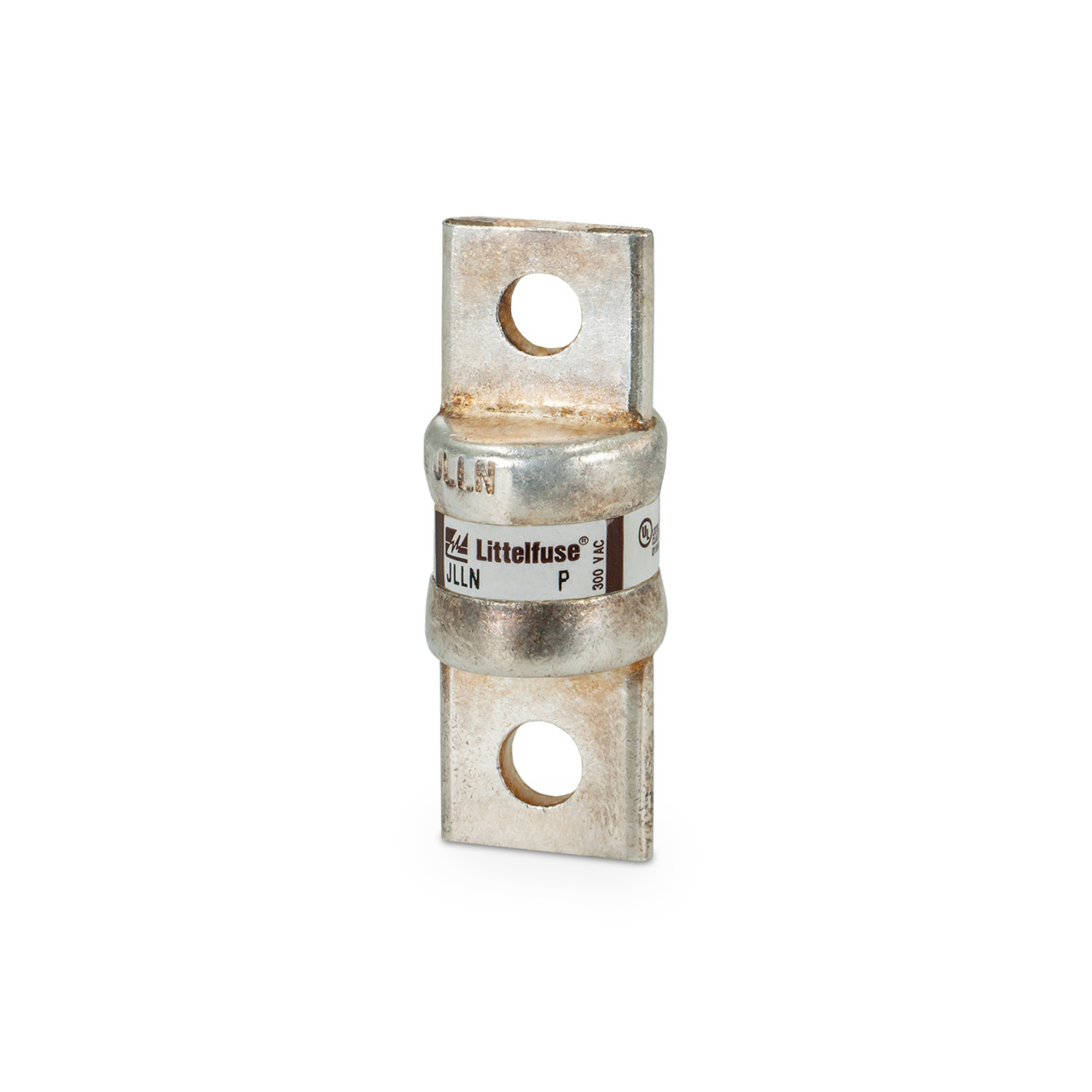

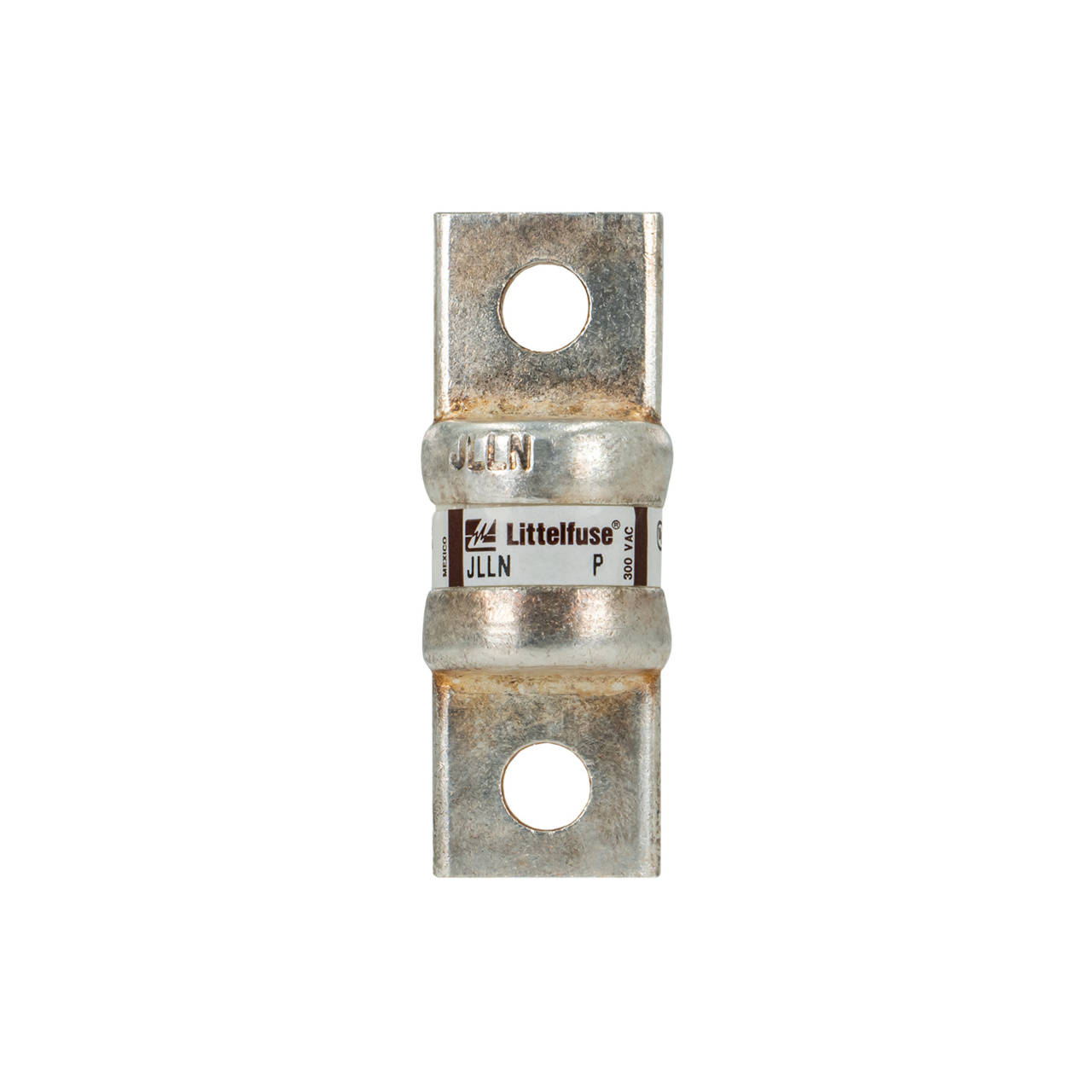

JLLN070P
FUS 300V F/A CLASS T 70A PLTD | Series: JLLN
JLLN070P is a Class T fuse with an ampere rating of 70 and knife-blade-style construction.
| Property | Value |
|---|---|
Current Rating (Continuous) in Amps | 70 |
Interrupting Rating
| 20 kA @ 125 Vdc |
Opening | Fast-Acting (F) |
Maximum AC Voltage (V) | 300 |
Voltage Rating (V) | 125 |
Size | Knife-Blade/Bolt-In |
Family style | Current Limiting |
Fuse Class | Class T |
Indicating | No |
Interrupt Amperage 1 | 200000 |
interrupt Amperage (A) - 2 | 20000 |
Interrupt Voltage Type ACDC - 1 | AC |
Interrupt Voltage Type ACDC - 2 | DC |
interrupt Voltage (V) -1 | 300 |
interrupt Voltage (V) -2 | 125 |
Mounting Method | Fuse Block / Clip / Holder |
PG Holder | LFT30100 Series |
JLLN070P Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| JLLN070.VXP | FUS 300V F/A CLASS T 70A PLTD |  CoC_RoHS10_JLLN070.VXP | REACH_SVHC Declaration_JLLN070.VXP | Does Not Contain | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
