VTP175F

Product Status| Activei

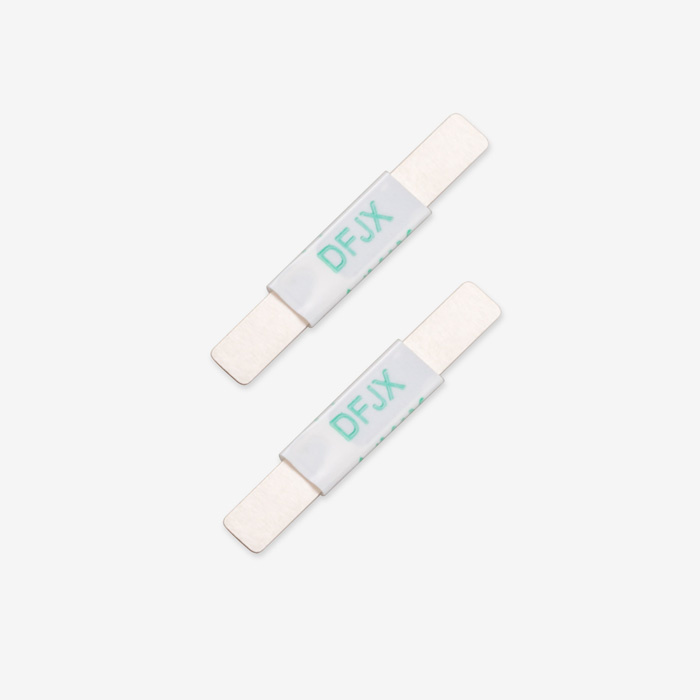

VTP175F

VTP175F | Series: PPTC VTP
info

Littelfuse PolySwitch, a pioneer of polymeric positive temperature coefficient (PPTC) resettable devices, offers several material platforms to help protect battery applications. The low trip temperature and broad range of hold current ratings combined with a broad range of form-factors and high current interrupt capability are a unique combination for the VTP series.

PropertyValue
IH (A)
1.75
Trip Current (A)
3.6
Max Voltage Rating (V)
16
Max Fault Current Rating (A)
100
PDMAX (W)
1.4
RMIN (Ω)
0.029
Resistance (Max) (Ω)
0.051
R1max (Ω)
0.1
Max Time to Trip Time (Sec)
5
RTYP (Ω)
0.04
Activation Temperature (Typical) (°C)
90
Interrupt Current Max
100
Max Operating Temperature (°C)
Not Applicable
  • Low trip temperature
  • Current ratings from 1.1 A to 2.1 A
  • Voltage ratings from 16V
  • Safely interrupt high fault current
  • Low-resistance devices increase battery operating time
  • Halogen-free and RoHS compliant
  • Compatible with high-volume electronics assembly
  • UL Recognized to UL 1434 CSA Certified to CSA TIL No. CA-3A TUV Certified to EN 60730-1

VTP175F Applications

Highlights Section

  • Rechargeable batteries for mobile devices
  • Video game controller
  • Electronic tooth brush
  • Battery-powerd shaver
  • Portable medical devices

VTP175F Resources

Showing 1 to 1 of 1 Total Results
Download
|
Share
Part NumberPart DescriptionRoHSPb-FreeRoHS (2015/863/EU) CertificateREACH (SVHC's) DeclarationREACH (SVHC's)Halogen FreeIPC-Material Declaration
A57199-000VTP175FRoHS7/4/2019Pb-Free7/4/2019Pdf IconCoC_RoHS10_A57199-000 (VTP175F)Pdf IconREACH_SVHC Declaration_A57199-000 (VTP175F)Does Not ContainYes7/4/2019

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
