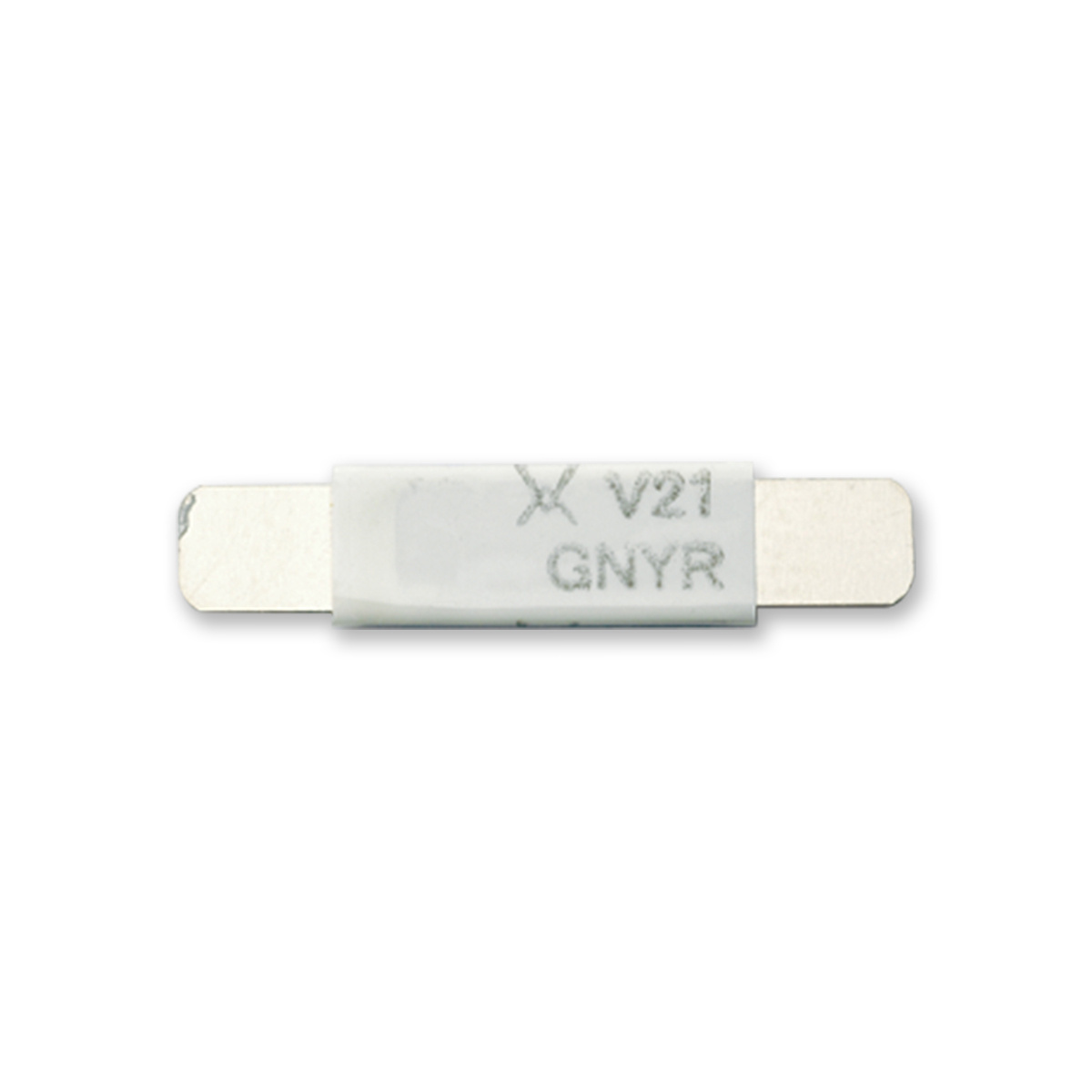

VTP210GF
VTP210GF | Series: PPTC VTP
Littelfuse PolySwitch, a pioneer of polymeric positive temperature coefficient (PPTC) resettable devices, offers several material platforms to help protect battery applications. The low trip temperature and broad range of hold current ratings combined with a broad range of form-factors and high current interrupt capability are a unique combination for the VTP series.
| Property | Value |
|---|---|
IH (A) | 2.1 |
Trip Current (A) | 4.7 |
Max Voltage Rating (V) | 16 |
Max Fault Current Rating (A) | 100 |
PDMAX (W) | 1.5 |
RMIN (Ω) | 0.018 |
Resistance (Max) (Ω) | 0.03 |
R1max (Ω) | 0.06 |
Max Time to Trip Time (Sec) | 5 |
RTYP (Ω) | 0.024 |
Activation Temperature (Typical) (°C) | 90 |
Interrupt Current Max
| 100 |
Max Operating Temperature (°C) | Not Applicable |
- Low trip temperature
- Current ratings from 1.1 A to 2.1 A
- Voltage ratings from 16V
- Safely interrupt high fault current
- Low-resistance devices increase battery operating time
- Halogen-free and RoHS compliant
- Compatible with high-volume electronics assembly
- UL Recognized to UL 1434 CSA Certified to CSA TIL No. CA-3A TUV Certified to EN 60730-1
VTP210GF Applications
- Rechargeable batteries for mobile devices
- Video game controller
- Electronic tooth brush
- Battery-powerd shaver
- Portable medical devices
VTP210GF Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3122-000 | VTP210GF |  8/14/2017 |  8/14/2017 |  CoC_RoHS10_RF3122-000_VTP210GF | REACH_SVHC Declaration_RF3122-000 (VTP210GF) | Does Not Contain | Yes8/14/2017 | IPC_RF3122-000 (VTP210GF) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
