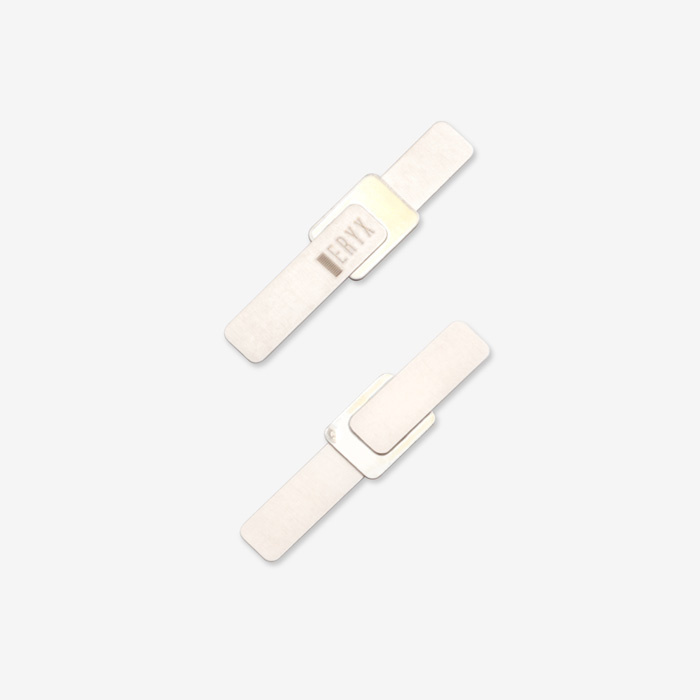

VLP120UF
VLP120UF | Series: VLP
ALittelfuse PolySwitch, a pioneer of polymeric positive temperature coefficient (PPTC) resettable devices, offers several material platforms to help protect battery applications. The low trip temperature and broad range of hold current ratings combined with a broad range of form-factors are a unique combination for the VLP series.
| Property | Value |
|---|---|
IH (A) | 1.2 |
Max Voltage Rating (V) | 16 |
Trip Current (A) | 3.6 |
Max Operating Temperature (°C) | Not Applicable |
Max Time to Trip Time (Sec) | 5 |
R1max (Ω) | 0.134 |
RMIN (Ω) | 0.039 |
PDMAX (W) | 1.6 |
Max Fault Current Rating (A) | 60 |
Resistance (Max) (Ω) | 0.067 |
Activation Temperature (Typical) (°C) | 90 |
Interrupt Current Max
| 60 |
RTYP (Ω) | 0.053 |
- Low trip temperature
- Current ratings from 1.2A to 2.7A
- Voltage ratings from 16V
- Multiple form factors for added design flexibility
- Low-resistance devices increase battery operating time
- Halogen-free and RoHS compliant
- Compatible with high-volume electronics assembly
- UL Recognized to UL 1434 CSA Certified to CSA TIL No. CA-3A TUV Certified to EN 60730-
VLP120UF Applications
- Rechargeable batteries for mobile devices
- Video game controller
- Electronic tooth brush
- Battery-powerd shaver
- Portable medical devices
