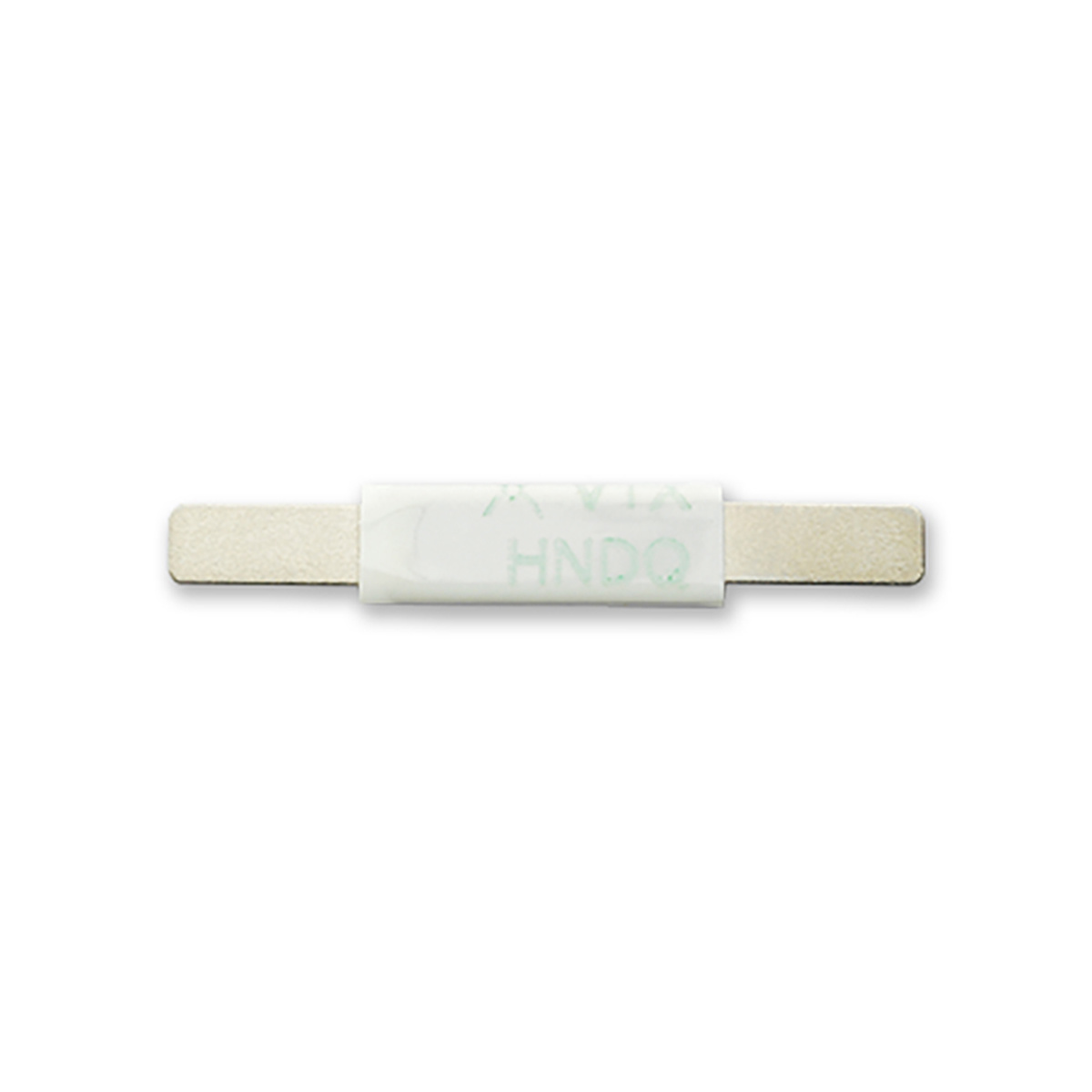

VLR170F
VLR170F | Series: VLR
Littelfuse PolySwitch, a pioneer of polymeric positive temperature coefficient (PPTC) resettable devices, offers several material platforms to help protect battery applications. The lower trip temperature and broad range of hold current ratings combined with a broad range of form-factors and high current interrupt capability are a unique combination for the VLR series.
| Property | Value |
|---|---|
IH (A) | 1.7 |
Max Voltage Rating (V) | 12 |
Trip Current (A) | 4.1 |
Max Operating Temperature (°C) | Not Applicable |
Max Time to Trip Time (Sec) | 5 |
R1max (Ω) | 0.064 |
RMIN (Ω) | 0.018 |
PDMAX (W) | 1.4 |
Max Fault Current Rating (A) | 100 |
Resistance (Max) (Ω) | 0.032 |
Activation Temperature (Typical) (°C) | 85 |
Interrupt Current Max
| 100 |
RTYP (Ω) | 0.025 |
- Low trip temperature
- Current ratings from 1.1 A to 2.3 A
- Voltage ratings from 12V
- Safely interrupt high fault current
- Low-resistance devices increase battery operating time
- Halogen-free and RoHS compliant
- Compatible with high-volume electronics assembly
- UL Recognized to UL 1434 CSA Certified to CSA TIL No. CA-3A TUV Certified to EN 60730-1
VLR170F Applications
- Rechargeable batteries for mobile devices
- Video game controller
- Electronic tooth brush
- Battery-powered shaver
- Portable medical devices
VLR170F Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3533-000 | VLR170F |  4/26/2016 |  4/26/2016 |  CoC_RoHS10_RF3533-000_VLR170F | REACH_SVHC Declaration_RF3533-000 (VLR170F) | Does Not Contain | Yes4/26/2016 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
