AHRF100

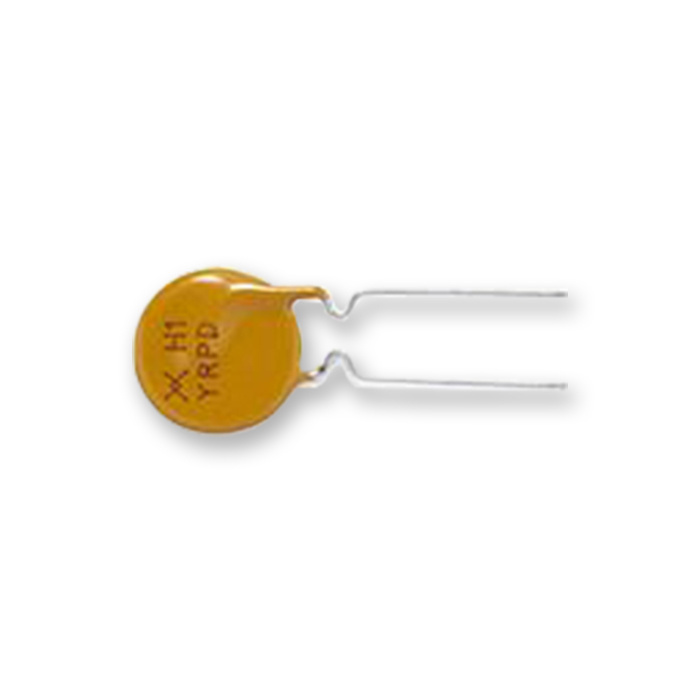

AHRF100 | Series: AHRF
The AHRF Series is a PPTC resettable device designed specifically for the automotive industry. It is a 16V high-temperature, leadfree, radial leaded resettable device that meets Littelfuse’s Automotive qualification. This qualification is based on AEC-Q200: Stress Test Qualification for Passive Components.
| Property | Value |
|---|---|
IH (A) | 1 |
Trip Current (A) | 1.9 |
Max Fault Current Rating (A) | 40 |
RMIN (Ω) | 0.15 |
R1max (Ω) | 0.43 |
Resistance Automotive (Max) (Ω) | 0.43 |
Max Time to Trip Time (Sec) | 6.2 |
Max Operating Temperature (°C) | 125 |
Power Dissipation (Typical) (W) | 1.4 |
- Overcurrent and overvoltage circuit protection devices
- Resettable and single-use overcurrent devices
- Wide range of form factor and termination methods
- Products meet applicable automotive industry standards
- Devices compatible with high-volume electronics assembly
- Lead-free, halogen-free, and RoHS compliant
AHRF100 Applications
- Motor and motor circuit protection including power door-locks, mirrors, lumbar umps, seats, sunroofs and windows
- Electronic Control Unit (ECU) I/O protection
- Heating, Ventilation and Cooling (HVAC) motor and I/O protection
- Telematics, infotainment and navigations systems
- Liquid Crystal Display (LCD) back-light heaters
- Power and cigarette lighter outlets, plugs and adapter/ chargers
- Powered networks and buses
- Air-flow detection and overcurrent protection in HVAC and cooling fan systems
- Stall detection in express window and sunroof circuits
- Resettable overcurrent protection for power distribution, electrical centers and junction boxes
AHRF100 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3331-000 | AHRF100 |  4/26/2016 |  4/26/2016 |  CoC_RoHS10_RF3331-000 (AHRF100) | REACH_SVHC Declaration_RF3331-000 (AHRF100) | Does Not Contain | Yes4/26/2016 | View More |
