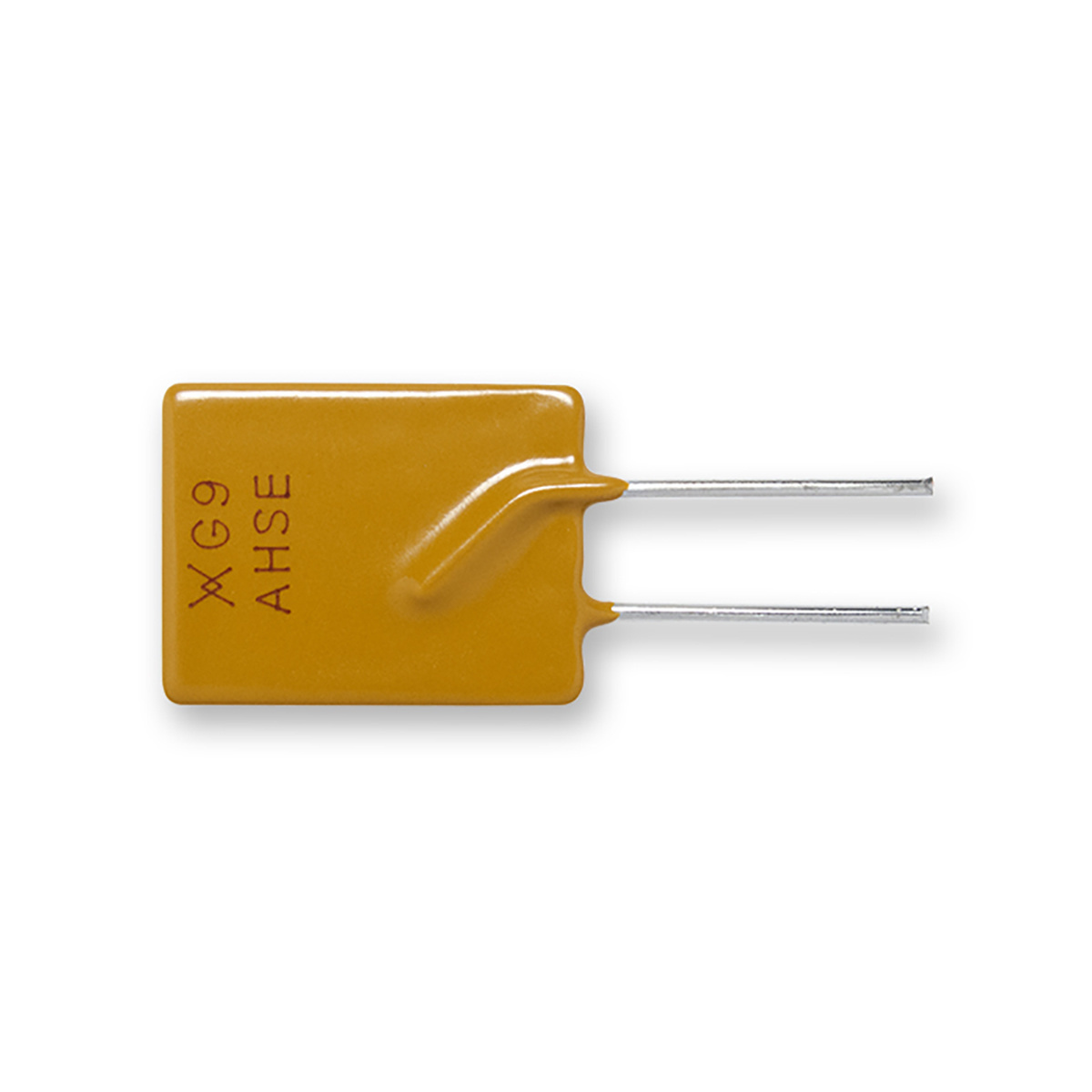

RGEF900
RGEF900 | Series: RGEF
Littelfuse PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RGEF series offers low hold currents up to 14A.
| Property | Value |
|---|---|
IH (A) | 9 |
Trip Current (A) | 15.3 |
Max Fault Current Rating (A) | 100 |
RMIN (Ω) | 0.0047 |
Resistance (Max) (Ω) | 0.0091 |
R1max (Ω) | 0.0135 |
Max Time to Trip Time (Sec) | 5.5 |
Max Operating Temperature (°C) | 85 |
Power Dissipation (Typical) (W) | 3.3 |
- Resettable and single-use overcurrent devices
- Wide range of form factor and termination methods
- Devices compatible with high-volume electronics assembly
- Lead-free, halogen-free, and RoHS compliant
RGEF900 Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- IEEE 1394 ports
- CD-ROMs
- Game machines
- Battery packs
RGEF900 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3256-000 | RGEF900 |  5/29/2017 |  5/29/2017 |  CoC_RoHS10_RF3256-000_RGEF900 | REACH_SVHC Declaration_RF3256-000 (RGEF900) | Does Not Contain | Yes5/29/2017 | IPC_RF3256-000 (RGEF900) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
