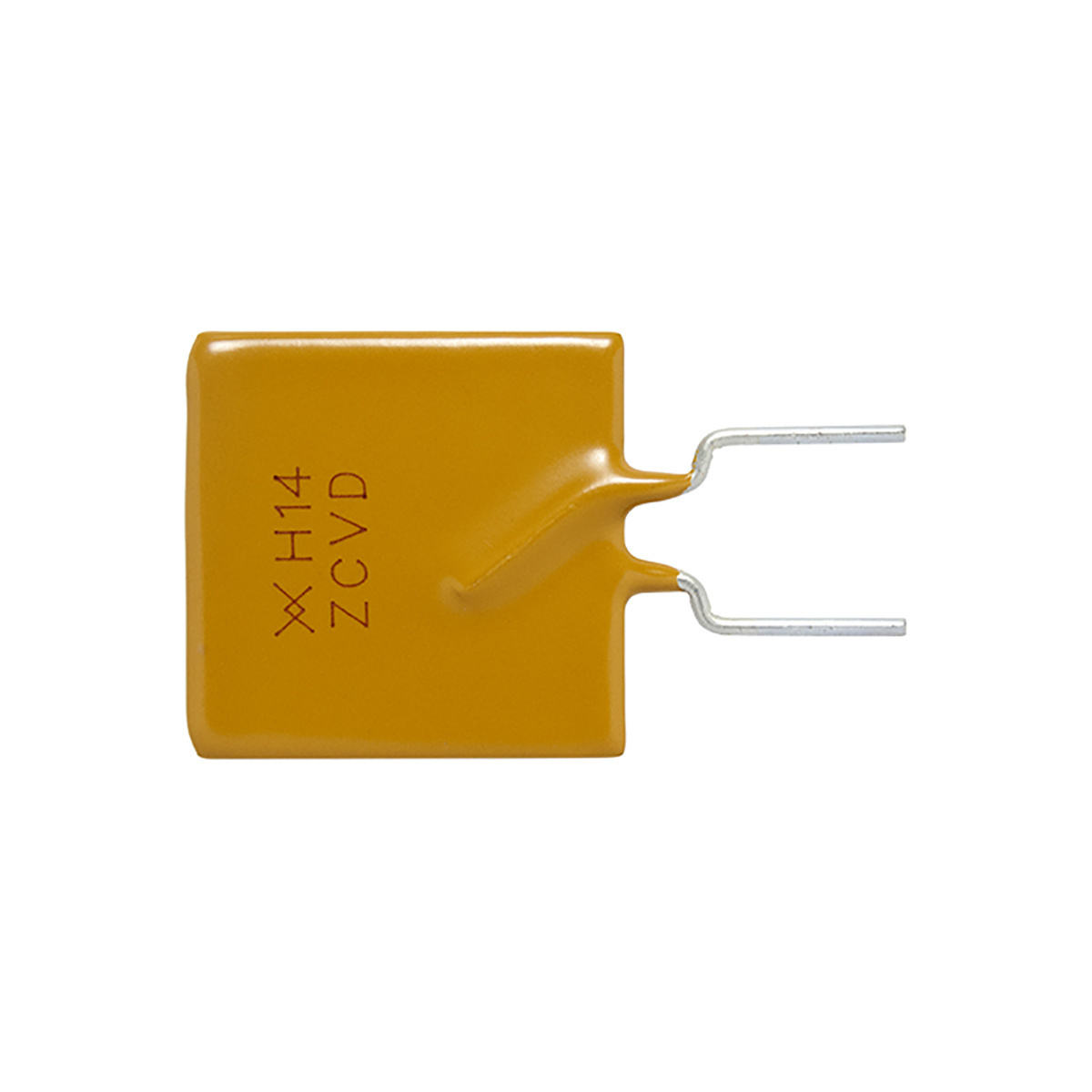

RHEF1400
RHEF1400 | Series: RHEF
Littelfuse PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RHEF series offers flatter thermal derating and operating temperatures up to 125°C.
| Property | Value |
|---|---|
IH (A) | 14 |
Trip Current (A) | 27 |
Max Fault Current Rating (A) | 100 |
RMIN (Ω) | 0.003 |
Resistance (Max) (Ω) | 0.006 |
R1max (Ω) | 0.009 |
Max Time to Trip Time (Sec) | 13 |
Max Operating Temperature (°C) | 125 |
Power Dissipation (Typical) (W) | 6.9 |
- Resettable and single-use overcurrent devices
- Wide range of form factor and termination methods
- Devices compatible with high-volume electronics assembly
- Lead-free, halogen-free, and RoHS compliant
RHEF1400 Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- IEEE 1394 ports
- CD-ROMs
- Game machines
- Battery packs
RHEF1400 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3326-000 | RHEF1400 |  1/13/2017 |  1/13/2017 |  CoC_RoHS10_RF3326-000_RHEF1400 | REACH_SVHC Declaration_RF3326-000 (RHEF1400) | Does Not Contain | Yes1/13/2017 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
