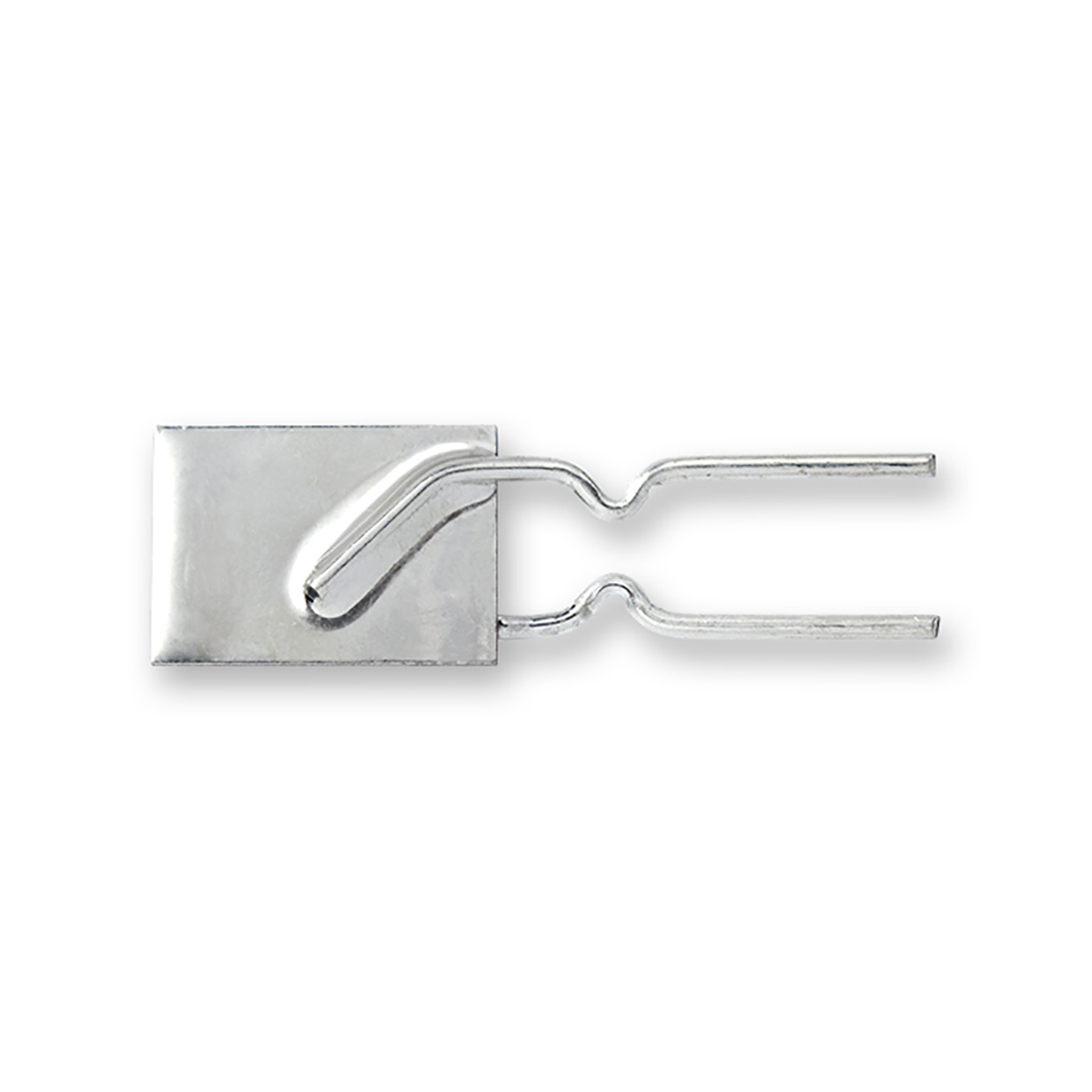

RUEF250U
RUEF250U | Series: RUEF
Littelfuse PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RUEF series is for balance of voltage rating (30V) and hold current (up to 9A).
| Property | Value |
|---|---|
IH (A) | 2.5 |
Trip Current (A) | 4.9 |
Max Fault Current Rating (A) | 100 |
PDMAX (W) | 2.05 |
RMIN (Ω) | 0.031 |
Resistance (Max) (Ω) | 0.044 |
R1max (Ω) | 0.08 |
Max Time to Trip Time (Sec) | 5 |
Max Operating Temperature (°C) | 85 |
Power Dissipation (Typical) (W) | 1.75 |
- Resettable and single-use overcurrent devices
- Wide range of form factor and termination methods
- Devices compatible with high-volume electronics assembly
- Lead-free, halogen-free, and RoHS compliant
RUEF250U Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- IEEE 1394 ports
- CD-ROMs
- Game machines
- Battery packs
RUEF250U Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| E17350-000 | RUEF250U |  12/5/2016 |  12/5/2016 |  CoC_RoHS10_E17350-000_RUEF250U | REACH211_Declaration_E17350-000_RUEF250U | Does Not Contain | Yes12/5/2016 | IPC_E17350-000 (RUEF250U) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
