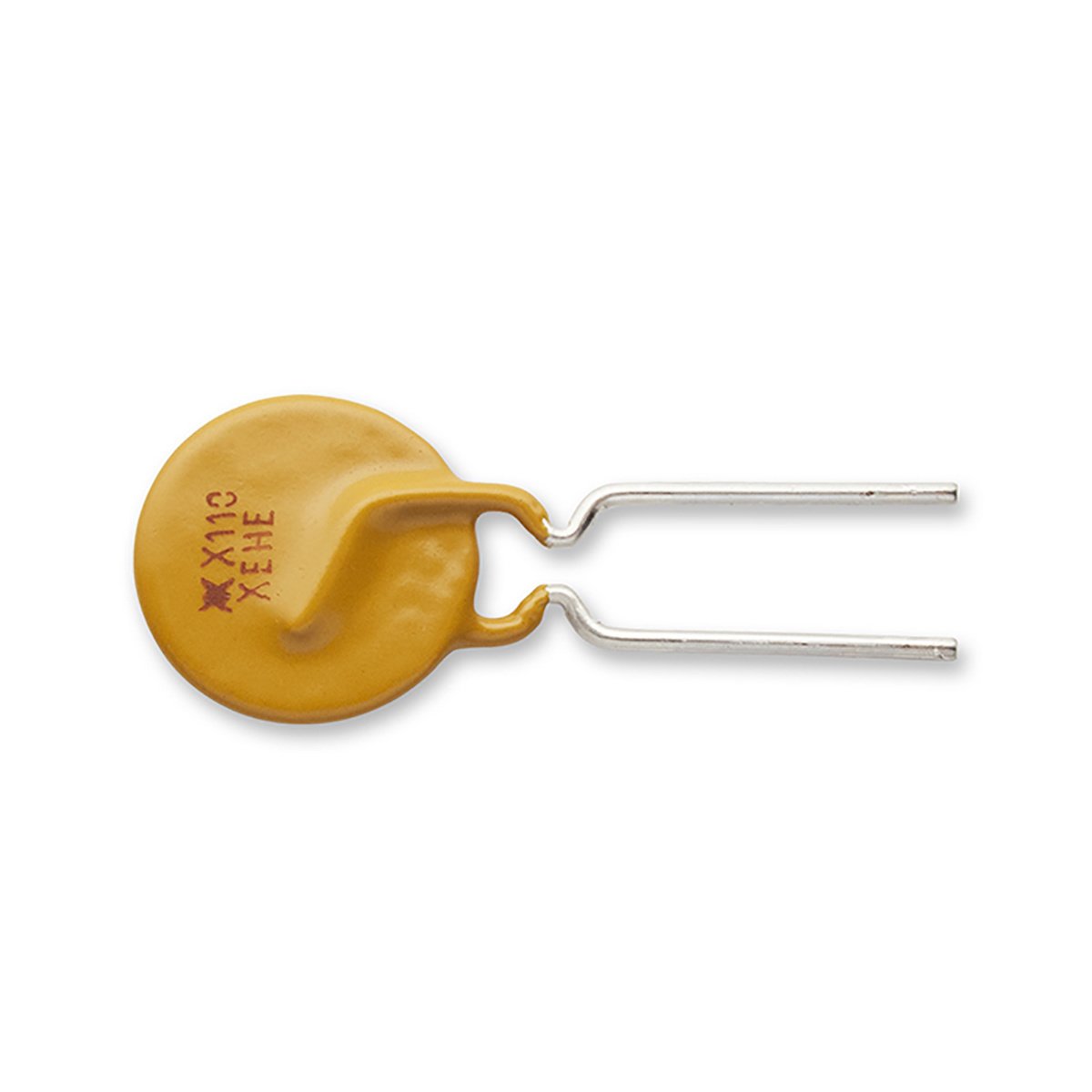

RXEF110K-AP
RXEF110K-AP | Series: RXEF
Littelfuse PolySwitch radial-leaded devices represent the most comprehensive and complete set of PPTC products available in the industry today. RXEF series offers low hold currents (down to 50mA) and high voltage rating (up to 72V).
| Property | Value |
|---|---|
IH (A) | 1.1 |
Trip Current (A) | 2.2 |
Max Fault Current Rating (A) | 40 |
PDMAX (W) | 2.5 |
RMIN (Ω) | 0.15 |
Resistance (Max) (Ω) | 0.25 |
R1max (Ω) | 0.38 |
Max Time to Trip Time (Sec) | 8.2 |
Max Operating Temperature (°C) | 85 |
Power Dissipation (Typical) (W) | 1.5 |
- Resettable and single-use overcurrent devices
- Wide range of form factor and termination methods
- Devices compatible with high-volume electronics assembly
- Lead-free, halogen-free, and RoHS compliant
- UL Recognized to UL 1434
- CSA Approved to CSA TIL No. CA-3A
- TUV Approved to EN 60730-1
- CQC Approved to GB 8898, GB/T 7153, GB 14536.1
RXEF110K-AP Applications
- Satellite video receivers
- Industrial controls
- Transformers
- Computer motherboards
- Modems
- USB hubs, ports and peripherals
- IEEE 1394 ports
- CD-ROMs
- Game machines
- Battery packs
RXEF110K-AP Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHC's) Declaration | REACH (SVHC's) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF2688-000 | RXEF110K-AP |  4/2/2018 |  4/2/2018 |  CoC_RoHS10_RF2688-000_RXEF110K-AP | REACH211_Declaration_RF2688-000_RXEF110K-AP | Does Not Contain | No | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
