3425L300/36

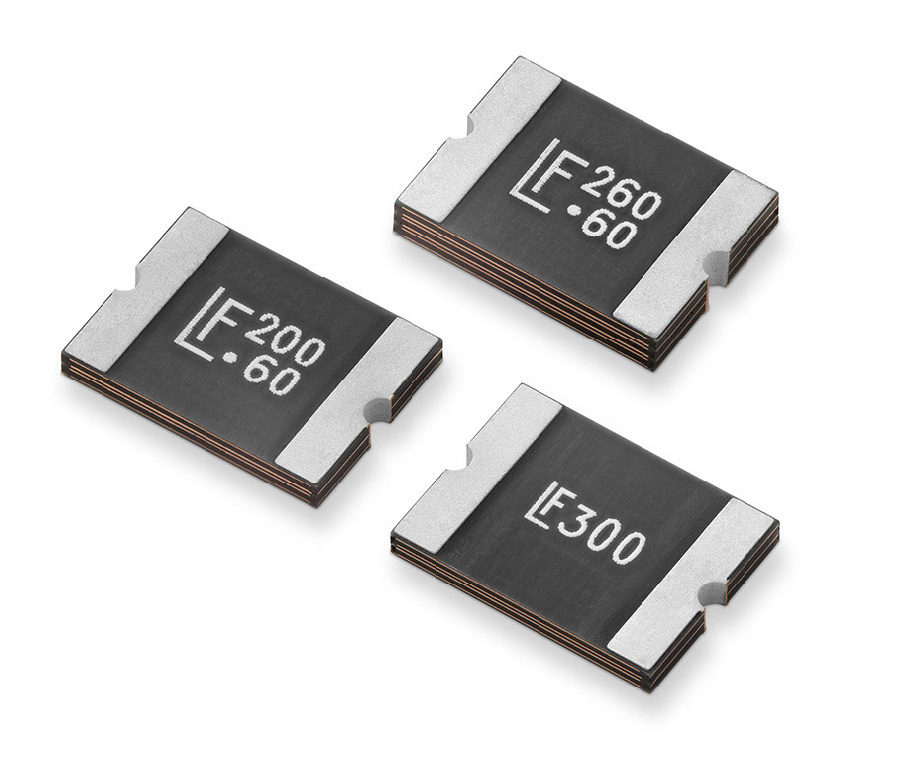

PTC 36V POLYFUSE SURF MOUNT 3425 3.0A | Series: 3425L
Littelfuse 3425L Series PPTC provides surface mount overcurrent protection for high voltage applications where resettable protection is desired.
| Property | Value |
|---|---|
IH (A) | 3 |
Trip Current (A) | 6 |
Max Voltage Rating (V) | 36 |
Max Fault Current Rating (A) | 20 |
RMIN (Ω) | 0.01 |
R1max (Ω) | 0.06 |
Max Time to Trip Current (A) | 8 |
Max Time to Trip Time (Sec) | 20 |
Operating Temperature | -40° to 85°C |
Power Dissipation (Typical) (W) | 2.5 |
Packaging Code | T and R |
MSL | Level 1 |
Vibration | No Change |
- Lead-free and RoHS compliant
- Halogen-free
- High voltage
- Low profile
- Fast response to fault current
- Compatible with high-volume electronics assembly
- Higher voltage ratings allow use in new applications
3425L300/36 Applications
- IEEE 1394 port protection
- Powered ethernet port protection (IEEE 802.3 af)
- Automotive electronic control module protection
- Low voltage telecom equipment protection
