NANOASMDCH016F-2

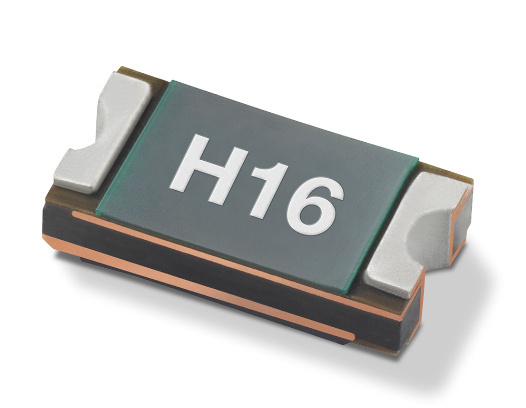

NANOASMDCH016F-2 | Series: Automotive High Temperature SMD
Helping to reduce weight of wire harnesses. PPTC devices distributed in a circuit can allow the use of smaller wire sizes with the resulting harnesses. Forego looping back and forth around a fuse box and place your protection wherever you see fit. The solid state composition of PPTC devices helps provide reliability.
| Property | Value |
|---|---|
IH (A) | 0.16 |
Max Voltage Rating (V) | 30 |
Trip Current (A) | 0.8 |
Max Operating Temperature (°C) | 125 |
Max Time to Trip Time (Sec) | 0.1 |
R1max (Ω) | 6 |
RMIN (Ω) | 0.7 |
PDMAX (W) | 0.9 |
Max Fault Current Rating (A) | 20 |
Resistance Automotive (Max) (Ω) | 6 |
- ROHS compliant
- Products meet applicable automotive industry standards
- Compatible with high-volume electronics assembly
- High Operating temperature ˗ -40℃~125℃
- Resettable solution against overcurrent and short-circuit
- AEC-Q200 qualified, RoHS compliant, and ISO/TS16949 certificated
- Surface-mount Form Factor
- Expertise from the world’s leading resettable overcurrent protection manufacturer
- Wide range of dedicated automotive surface-mount and radial-leaded resettable overcurrent devices
- Meets ever-increasing demand for compact and space-saving designs due to more electronics content in vehicle
- Restores system operation after reset when fault condition is removed, thus provides safety and protection
- Able to meet most stringent requirements for the extreme harsh automotive environment
- Suitable for standard PCB assembly to enable automated mass production
NANOASMDCH016F-2 Applications
- Automotive and Industrial Transportation
- Actuators and medium motors
- Trace protection
- Harness/junction box protection
- Powered outputs
- Electronic control modules
- Telematics/Infotainment
- Security and Communication Systems
NANOASMDCH016F-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF4896-000 | NANOASMDCH016F-2 |  7/2/2020 |  7/2/2020 |  CoC_RoHS10_RF4896-000_NANOASMDCH016F-2 | REACH_SVHC Declaration_RF4896-000 (NANOASMDCH016F-2) | Does Not Contain | Yes7/2/2020 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
