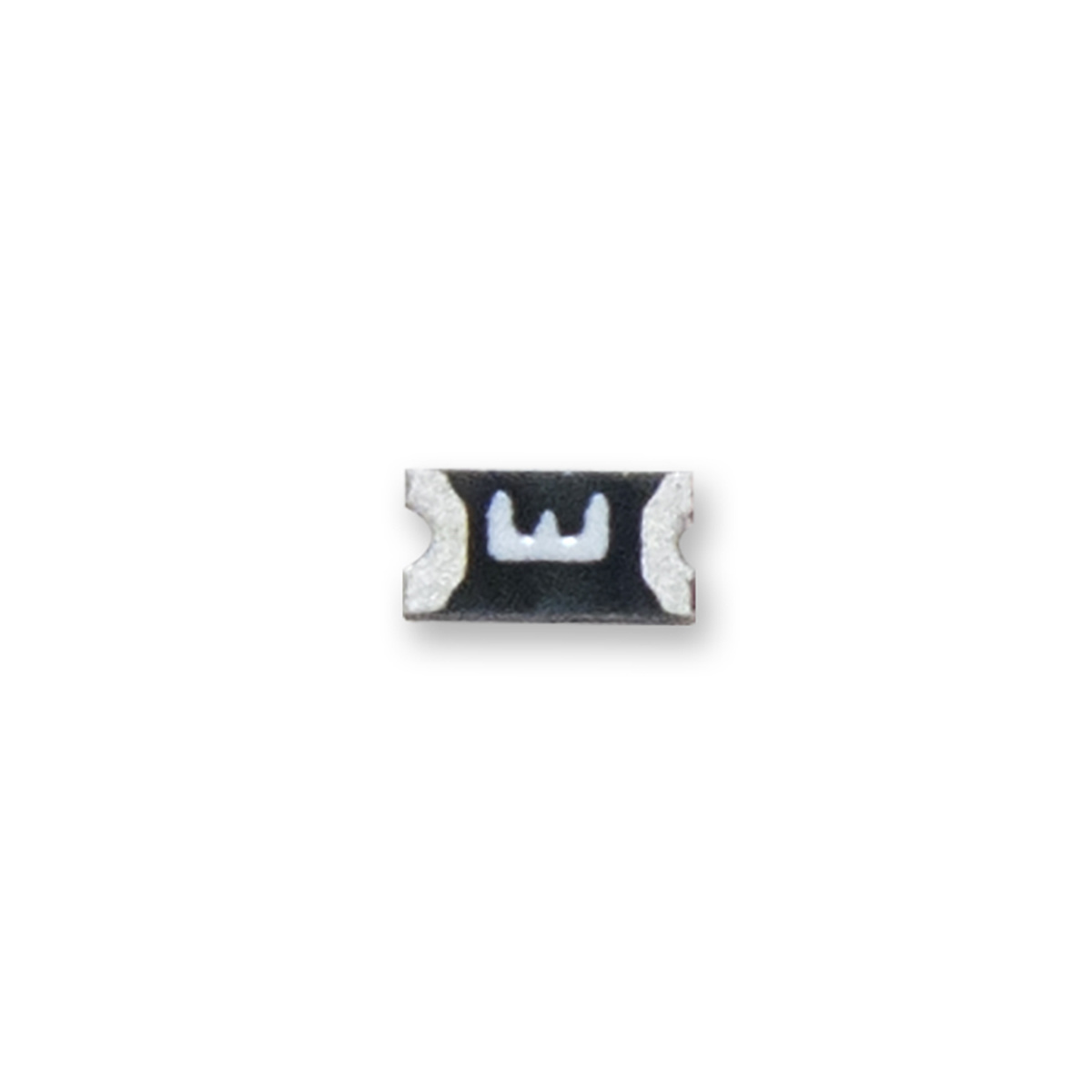

femtoSMDC016F-2
FEMTOSMDC016F-2 | Series: femtoSMDC
The femtoSMDC series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired..
| Property | Value |
|---|---|
IH (A) | 0.16 |
Max Voltage Rating (V) | 9 |
Trip Current (A) | 0.4 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 0.1 |
R1max (Ω) | 4.2 |
RMIN (Ω) | 1 |
PDMAX (W) | 0.5 |
Max Fault Current Rating (A) | 40 |
- Broadest range of resettable devices available in industry
- Low resistance
- Small 0603 footprint
- Fast time-to-trip
- RoHS complaint, lead-free and halogen-free
femtoSMDC016F-2 Applications
- Mobile Electronics
- Batteries
- Computer
- Portable electronics
- Multimedia
- Game machines
- Telephone and broadband
- Automotive
- Industrial controls
femtoSMDC016F-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF3696-000 | FEMTOSMDC016F-2 |  7/25/2017 |  7/25/2017 |  CoC_RoHS10_RF3696-000_FEMTOSMDC016F-2 | REACH219_Declaration_RF3696-000_(FEMTOSMDC016F-2) | Does Not Contain | Yes7/25/2017 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
