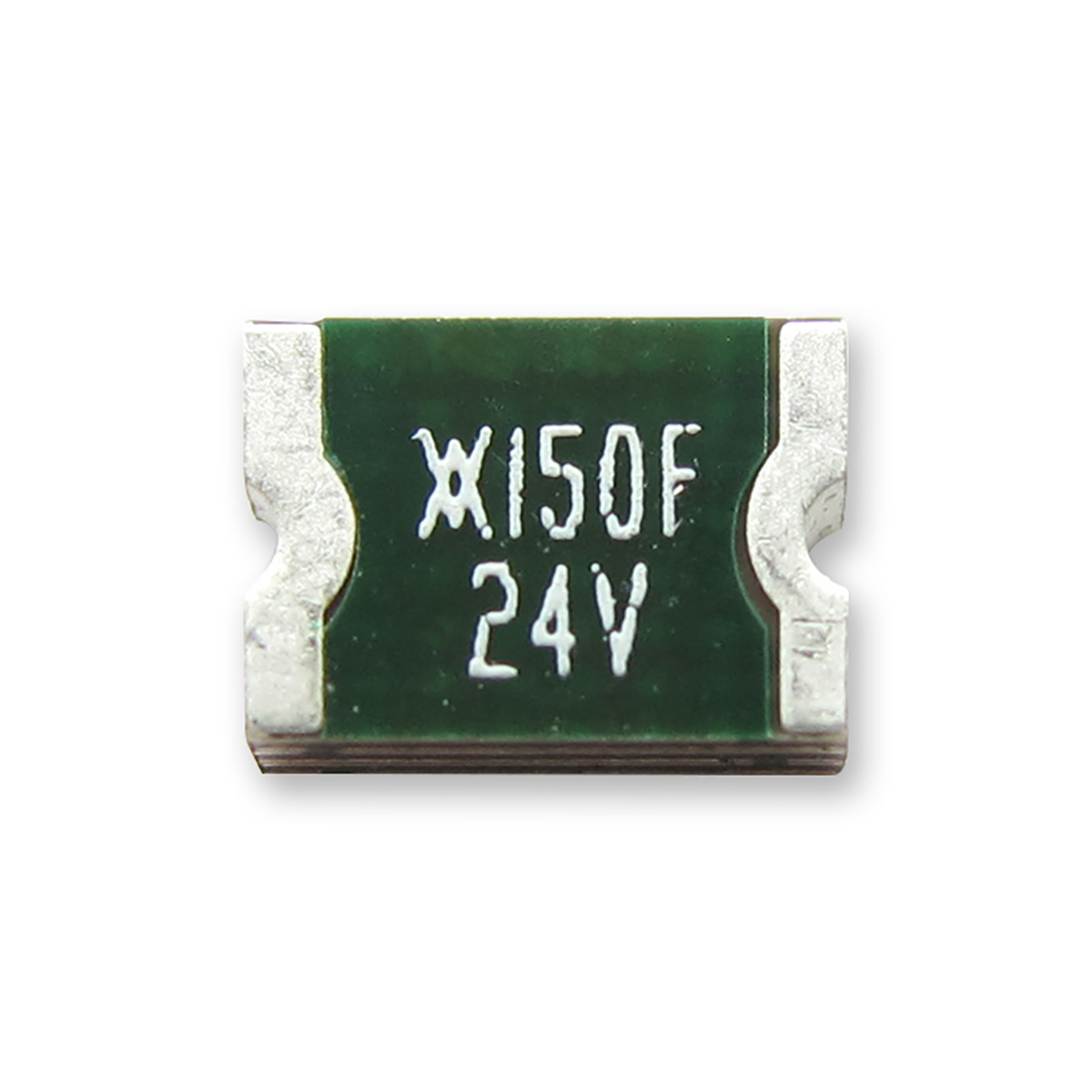

miniASMDC150F/24-2
MINIASMDC150F/24-2 | Series: miniASMD
Helping to reduce weight of wire harnesses. PPTC devices distributed in a circuit can allow the use of smaller wire sizes with the resulting harnesses. Forego looping back and forth around a fuse box and place your protection wherever you see fit. The solid state composition of PPTC devices helps provide reliability.
| Property | Value |
|---|---|
IH (A) | 1.5 |
Max Voltage Rating (V) | 24 |
Trip Current (A) | 3 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 1.5 |
R1max (Ω) | 0.12 |
RMIN (Ω) | 0.04 |
PDMAX (W) | 1 |
Max Fault Current Rating (A) | 20 |
Resistance Automotive (Max) (Ω) | 0.12 |
- ROHS compliant
- Products meet applicable automotive industry standards
- Compatible with high-volume electronics assembly
- Expertise from the world’s leading resettable overcurrent protection manufacturer
- Wide range of dedicated automotive surface-mount and radial-leaded resettable overcurrent devices
miniASMDC150F/24-2 Applications
- Automotive and Industrial Transportation
- Actuators and medium motors
- Trace protection
- Harness/junction box protection
- Powered outputs
- Electronic control modules
- Telematics/Infotainment
miniASMDC150F/24-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF2161-000 | MINIASMDC150F/24-2 |  2/19/2018 |  2/19/2018 |  CoC_RoHS10_RF2161-000_MINIASMDC150F-24-2 | REACH_SVHC Declaration_RF2161-000 (miniASMDC075F-24) | Does Not Contain | Yes2/19/2018 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
