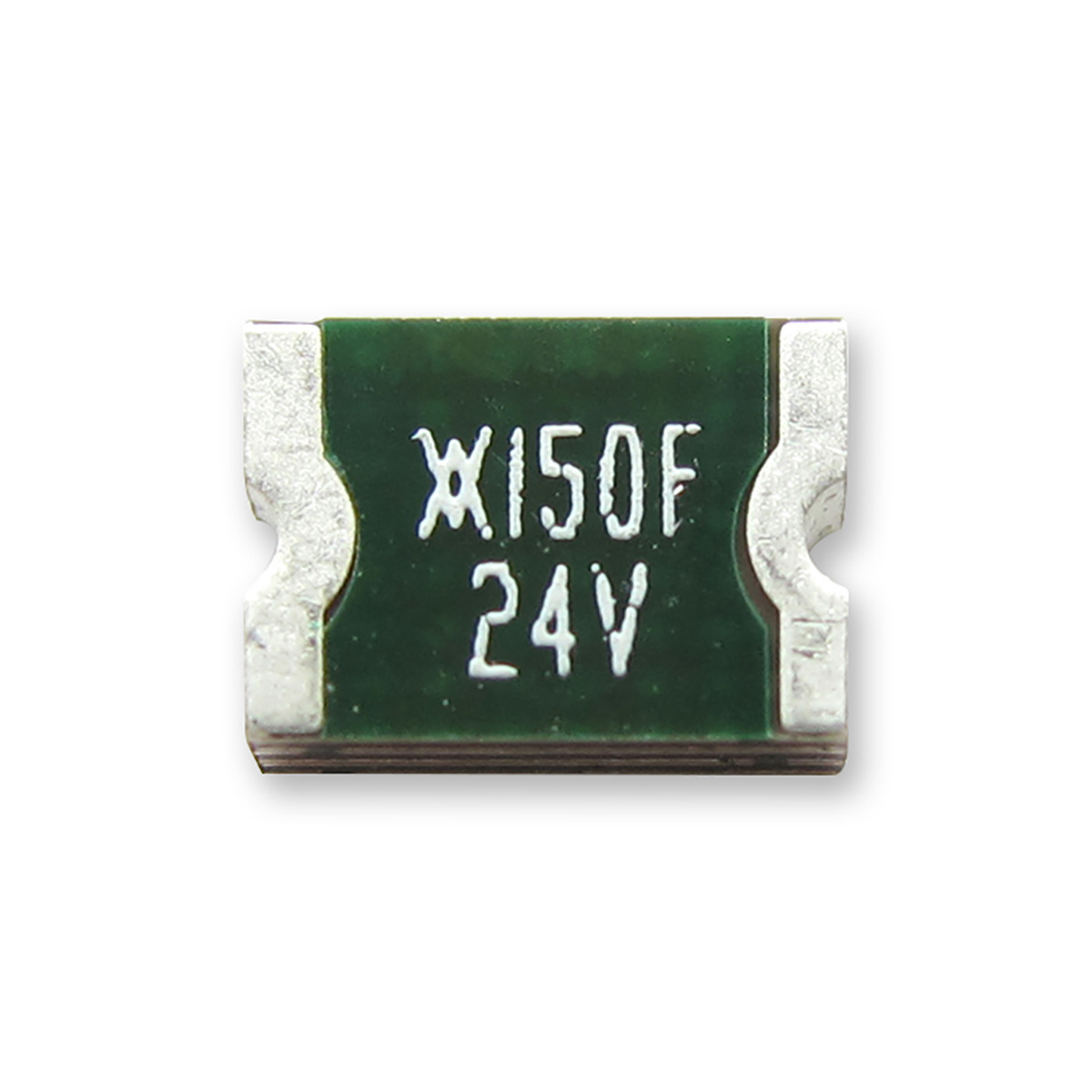

miniSMDC150F/24-2
MINISMDC150F/24-2 | Series: miniSMD
The miniSMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
| Property | Value |
|---|---|
IH (A) | 1.5 |
Max Voltage Rating (V) | 24 |
Trip Current (A) | 3 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 1.5 |
R1max (Ω) | 0.12 |
RMIN (Ω) | 0.04 |
PDMAX (W) | 1 |
Max Fault Current Rating (A) | 20 |
- Broadest range of resettable devices available in industry
- Low resistance
- Compact design and high voltage ratings
- Smaller size helps reduce board space and cost
- Many product choices optimizes design flexibility
- Compatible with high-volume electronics assembly
- Higher voltage ratings allow use in new applications
miniSMDC150F/24-2 Applications
- Mobile Electronics and Batteries
- Computer
- Portable electronics
- Multimedia
- Game machines
- Telephone and broadband
- Automotive
- Industrial controls
- Battery
miniSMDC150F/24-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF1180-000 | MINISMDC150F/24-2 |  11/7/2016 |  11/7/2016 |  CoC_RoHS10_RF1180-000 (MINISMDC150F-24-2) | REACH_SVHC Declaration_RF1180-000 (MINISMDC150F-24-2) | Does Not Contain | Yes11/7/2016 | IPC_RF1180-000 (MINISMDC150F/24-2) | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
