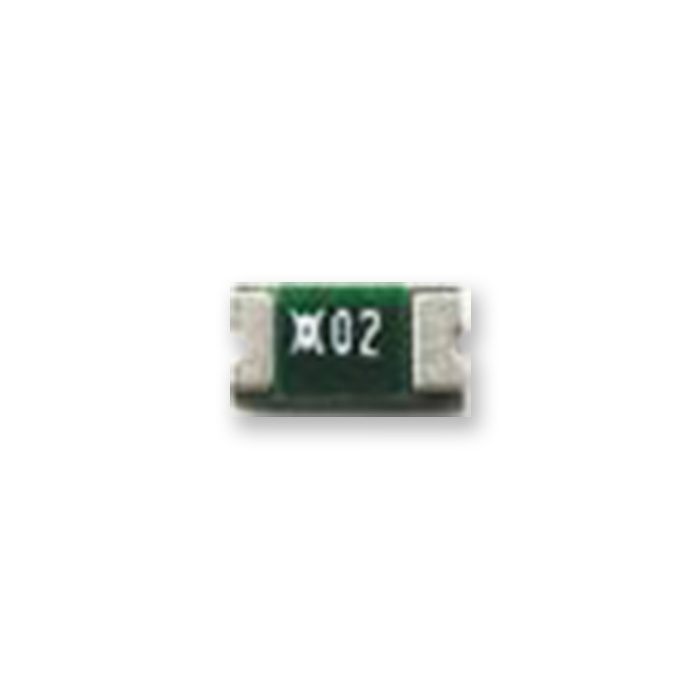

nanoASMDC020F-2
NANOASMDC020F-2 | Series: nanoASMD
Helping to reduce weight of wire harnesses. PPTC devices distributed in a circuit can allow the use of smaller wire sizes with the resulting harnesses. Forego looping back and forth around a fuse box and place your protection wherever you see fit. The solid state composition of PPTC devices helps provide reliability.
| Property | Value |
|---|---|
IH (A) | 0.2 |
Max Voltage Rating (V) | 24 |
Trip Current (A) | 0.42 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 0.1 |
R1max (Ω) | 3.1 |
RMIN (Ω) | 0.65 |
PDMAX (W) | 0.6 |
Max Fault Current Rating (A) | 100 |
Resistance Automotive (Max) (Ω) | 3.1 |
- ROHS compliant
- Products meet applicable automotive industry standards
- Compatible with high-volume electronics assembly
- Expertise from the world’s leading resettable overcurrent protection manufacturer
- Wide range of dedicated automotive surface-mount and radial-leaded resettable overcurrent devices
nanoASMDC020F-2 Applications
- Automotive and Industrial Transportation
- Actuators and medium motors
- Trace protection
- Harness/junction box protection
- Powered outputs
- Electronic control modules
- Telematics/Infotainment
nanoASMDC020F-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF2147-000 | NANOASMDC020F-2 |  3/14/2018 |  3/14/2018 |  CoC_RoHS10_RF2147-000_NANOASMDC020F-2 | REACH_SVHC Declaration_RF2147-000 (NANOASMDC020F-2) | Does Not Contain | Yes3/14/2018 | View More |
