PICOSMDC005S-2
PICOSMDC005S-2 | Series: picoSMD
As electronic devices shrink, designers need reliable low-current overcurrent protection that fits compact PCB layouts without the cost and downtime of manually replacing a blown fuse.

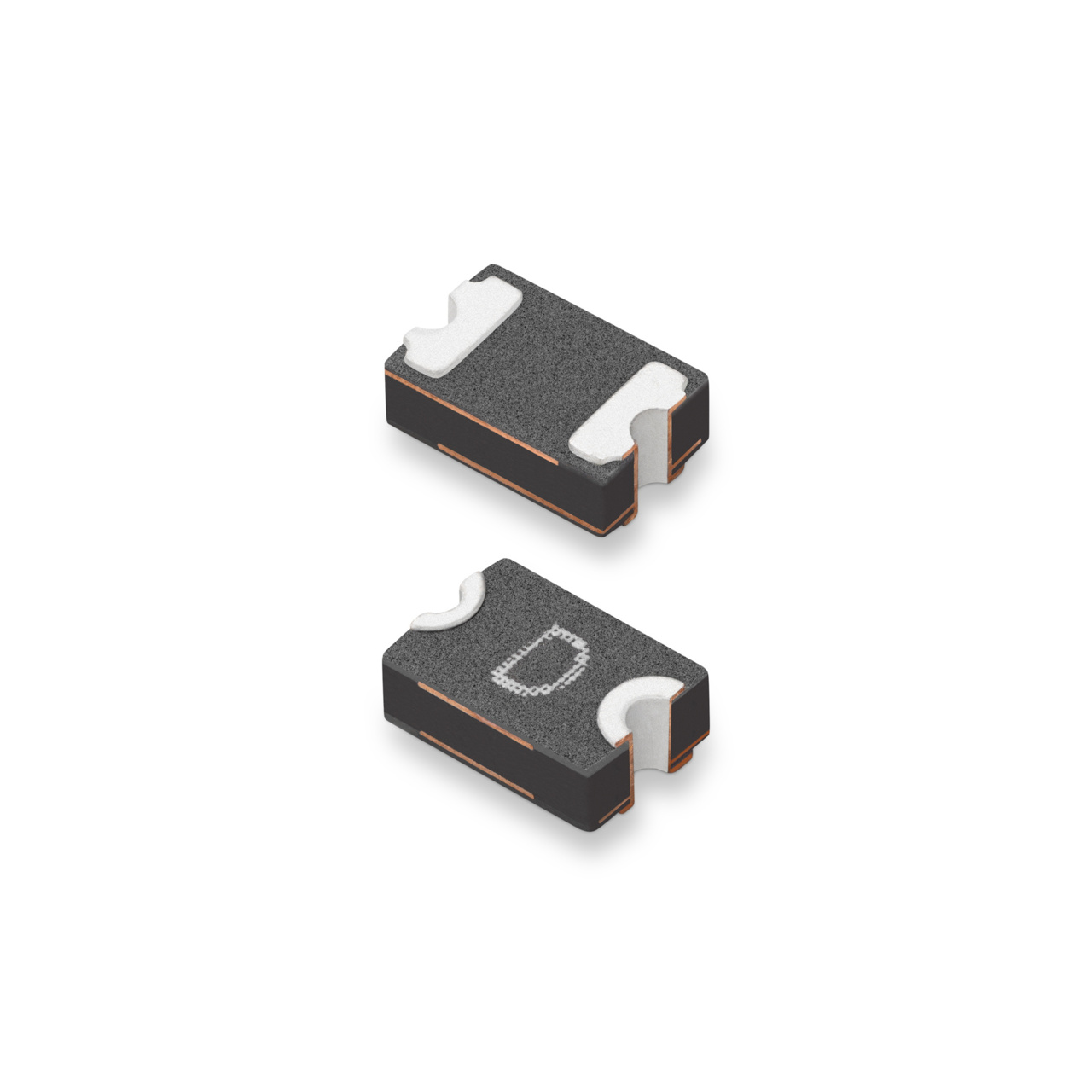

The Littelfuse picoSMDC005S with PPTC resettable technology provides a solution with a 50 mA hold current in a small 0805 surface-mount package. Designed for portable electronics, wearables, IoT sensors and industrial control, this resettable PPTC fuse protects sensitive low-current circuits while eliminating field service interruptions.
| Property | Value |
|---|---|
IH (A) | 0.05 |
Max Voltage Rating (V) | 30 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 1.5 |
R1max (Ω) | 3.6 |
RMIN (Ω) | 3.6 |
PDMAX (W) | 0.5 |
Max Fault Current Rating (A) | 40 |
Resistance (Max) (Ω) | 20 |
Power Dissipation (Typical) (W) | 0.5 |
Operating Temperature Min (°C) | -40 |
Packaging Code | T and R |
MSL | Level 1 |
Vibration | No Change |
Size | 0805 |
Operating Temperature Max (°C) | 85 |
Form Factor | Surface Mount |
Max Time to Trip Current (A) | 0.5 |
- Hold current ratings: 50 mA for DC circuits rated up to 30 VDC
- Trip time: 1.5 s maximum for 0.5 A overcurrent
- Compact: 0805 surface mount package
- UL and TUV recognized
PICOSMDC005S-2 Applications
- Wearable products
- Industrial controls/IoT sensors
- Home automation
- Industrial controls
