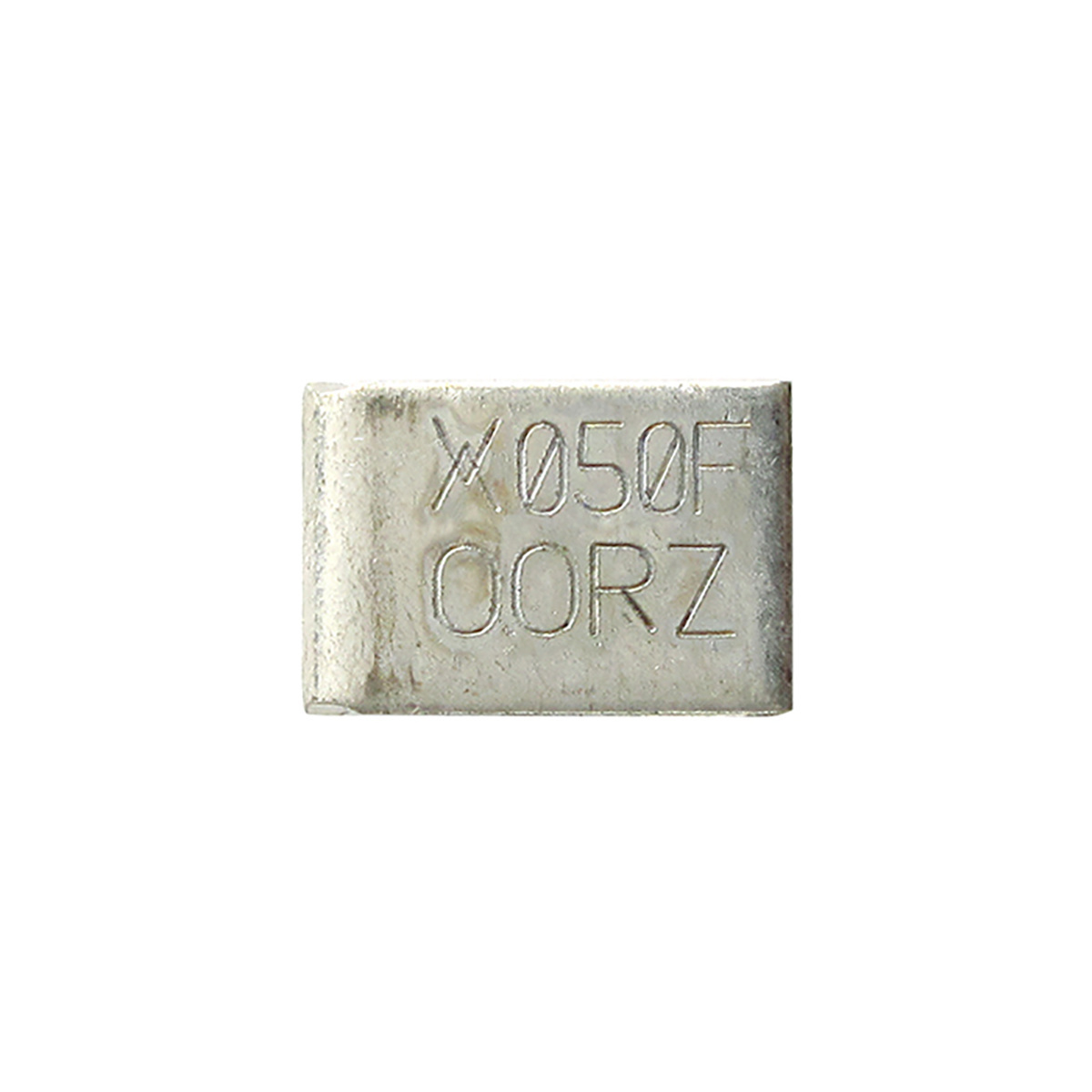

SMD050F-2
SMD050F-2 | Series: SMD
The SMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
| Property | Value |
|---|---|
IH (A) | 0.5 |
Max Voltage Rating (V) | 60 |
Trip Current (A) | 1 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 4 |
R1max (Ω) | 1.4 |
RMIN (Ω) | 0.35 |
PDMAX (W) | 1.7 |
Max Fault Current Rating (A) | 10 |
- Broadest range of resettable devices available in industry
- Low resistance
- Small footprint - 2018, 2920 and 3425
- Fast time-to-trip
- RoHS complaint, lead-free and halogen-free
- Compact design and high voltage ratings
- Smaller size helps reduce board space and cost
- Many product choices optimizes design flexibility
- Compatible with high-volume electronics assembly
- Higher voltage ratings allow use in new applications
SMD050F-2 Applications
- Mobile Electronics and Batteries
- Computer
- Portable electronics
- Multimedia
- Game machines
- Telephone and broadband
- Automotive
- Industrial controls
- Battery
SMD050F-2 Resources
