SMD200F-2018-2

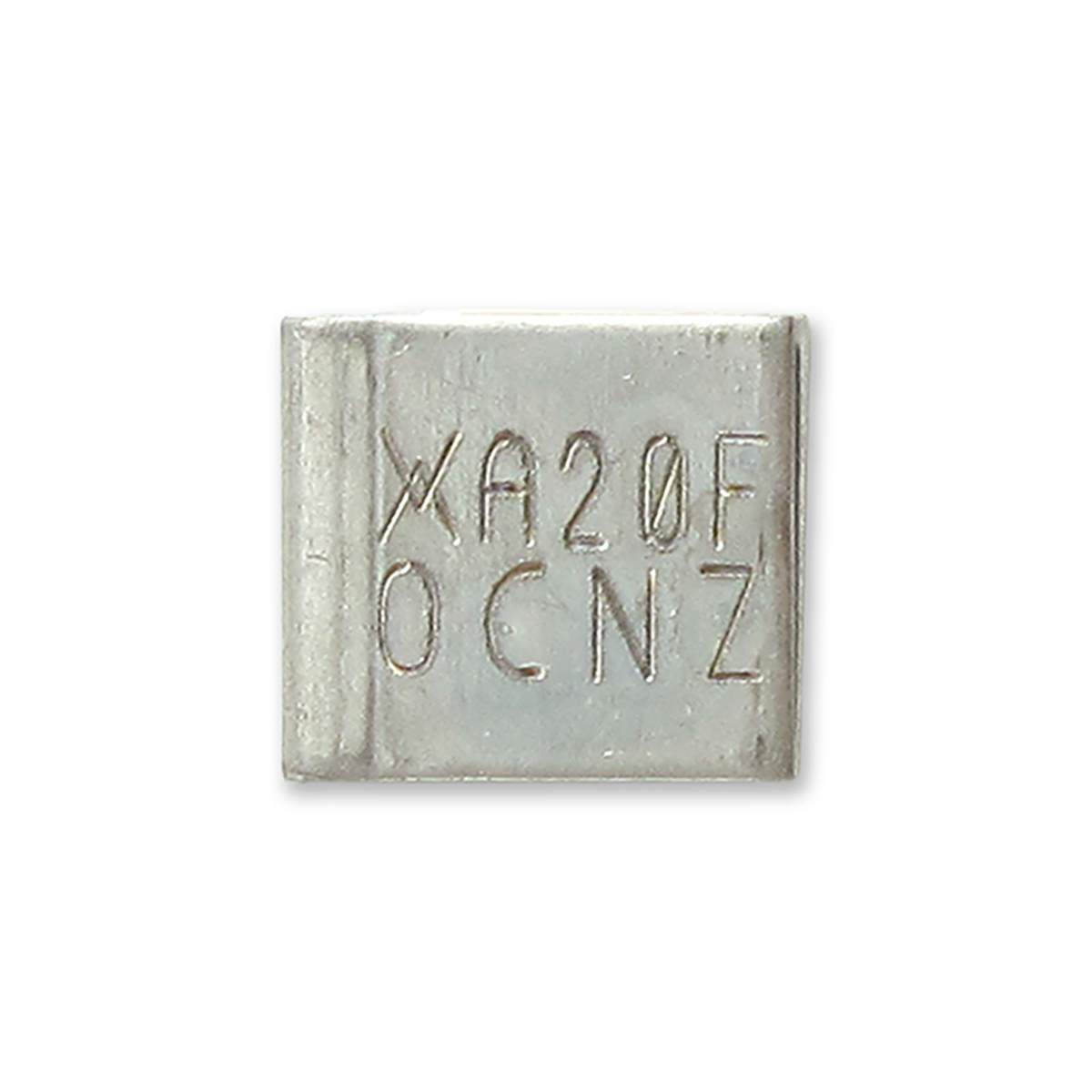

SMD200F-2018-2 | Series: SMD
The SMD series provides surface mount overcurrent protection for applications where space is at a premium and resettable protection is desired.
| Property | Value |
|---|---|
IH (A) | 2 |
Max Voltage Rating (V) | 6 |
Trip Current (A) | 4.2 |
Max Operating Temperature (°C) | 85 |
Max Time to Trip Time (Sec) | 3 |
R1max (Ω) | 0.1 |
RMIN (Ω) | 0.048 |
PDMAX (W) | 1.5 |
Max Fault Current Rating (A) | 40 |
- Broadest range of resettable devices available in industry
- Low resistance
- Small footprint - 2018, 2920 and 3425
- Fast time-to-trip
- RoHS complaint, lead-free and halogen-free
- Compact Design and New HV Ratings
- Smaller size helps reduce board space and cost
- Many product choices optimizes design flexibility
- Compatible with high-volume electronics assembly
- Higher voltage ratings allow use in new applications
SMD200F-2018-2 Applications
- Mobile Electronics and Batteries
- Computer
- Portable electronics
- Multimedia
- Game machines
- Telephone and broadband
- Automotive
- Industrial controls
- Battery
SMD200F-2018-2 Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| RF0326-000 | SMD200F-2018-2 |  2/20/2019 |  2/20/2019 |  CoC_RoHS10_RF0326-000_SMD200F-2018-2 | REACH201_Declaration_RF0326-000_SMD200F-2018-2 | Does Not Contain | Yes2/20/2019 | View More |
If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
