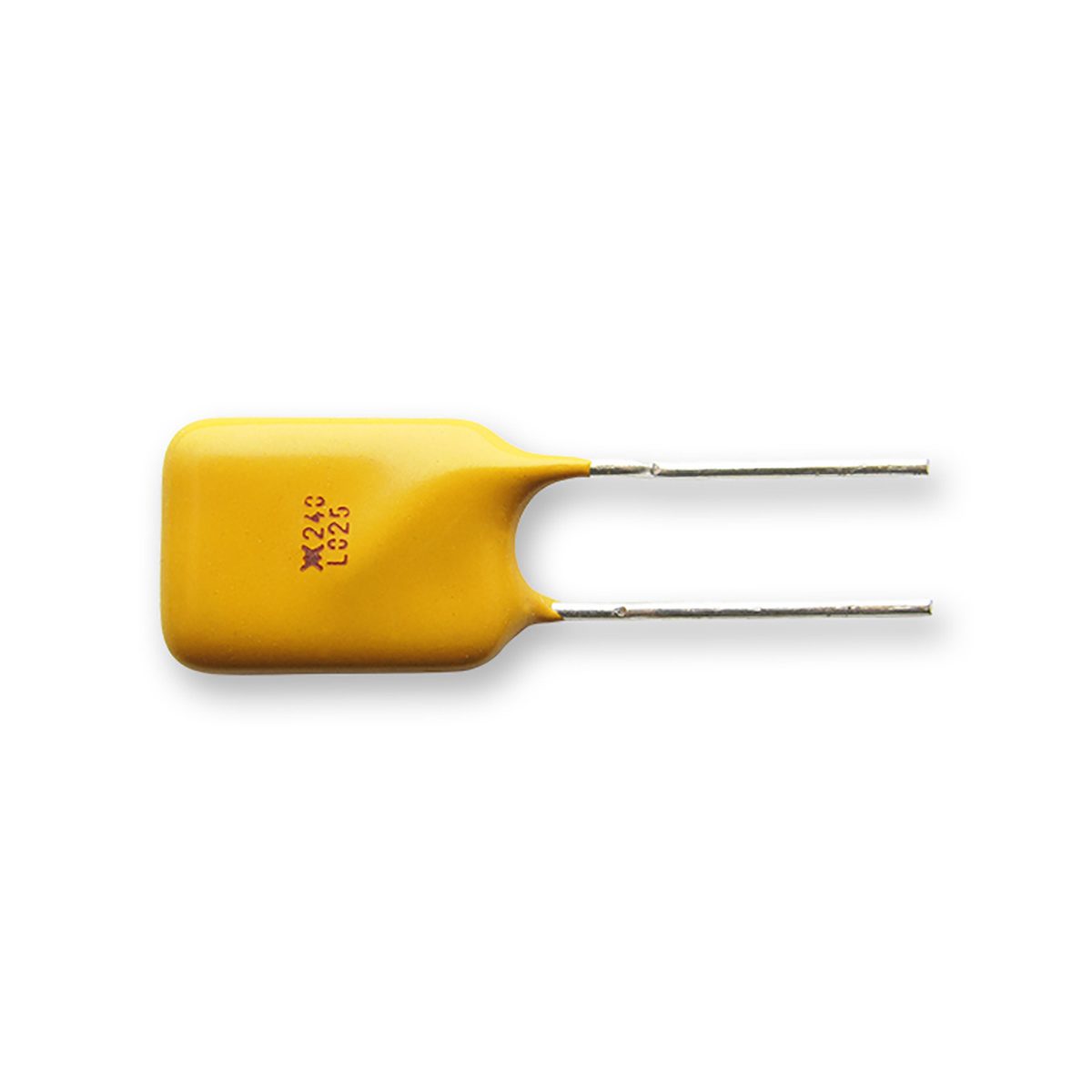

LVR025K
LVR025K | Series: LVR
Littelfuse PolySwitch line-voltage-rated (LVR) devices help protect electric motors and transformers used in commercial and home appliances from damage caused by mechanical overloads, overheating, stall, lost neutral and other potentially harmful conditions.
The LVR line-voltage product line of polymeric positive temperature coefficient (PPTC) devices include components that are rated for line voltages of 120VAC, VDC and 240VAC, VDC for up to 2A of operating current at 20°C. They help protect against damage caused by both overcurrent surges and overtemperature faults. They also offer low resistance and are compatibly sized with fuse solutions.
| Property | Value |
|---|---|
IH (A) | 0.25 |
Trip Current (A) | 0.56 |
RMIN (Ω) | 1.3 |
Resistance (Max) (Ω) | 2.1 |
R1max (Ω) | 3.8 |
Max Time to Trip Time (Sec) | 18.5 |
Interrupt Current Max
| 3.5 |
Interrupt Voltage (Max) V | 265 |
Max Operating Temperature (°C) | 85 |
Power Dissipation (Typical) (W) | 1.5 |
- RoHS and Halogen-free compliant
- Broadest range of radial-leaded resettable devices available in the industry
- Current ratings from 50 mA to 2 A
- Available with line voltage ratings of 120 V ac and 120 V dc or 240 V ac and 240 V dc
- Fast time-to-trip
- Low resistance
- UL Recognized to UL 1434
- CSA Approved to CSA TIL No. CA-3A
- TUV Approved to EN 60730-1
- CQC Approved to GB 8898, GB/T 7153, GB 14536.1
LVR025K Applications
- Electromagnetic loads
- Game machines
- Industrial controls
- Lighting ballasts
- Loudspeakers
- Medical equipment
- Motors, fans and blowers
- POS equipment
- Satellite video receivers
- Security and fire alarm systems
LVR025K Resources
Link has been copied to clipboardShowing 1 to 1 of 1 Total Results
Share
| Part Number | Part Description | RoHS | Pb-Free | RoHS (2015/863/EU) Certificate | REACH (SVHCs) Declaration | REACH (SVHCs) | Halogen Free | IPC-Material Declaration | |
|---|---|---|---|---|---|---|---|---|---|
| 657076-000 | LVR025K |  5/4/2018 |  5/4/2018 |  CoC_RoHS10_657076-000_LVR025K | REACH_SVHC Declaration_657076-000 (LVR025K) | Does Not Contain | No | IPC LVR025S_K | View More |
