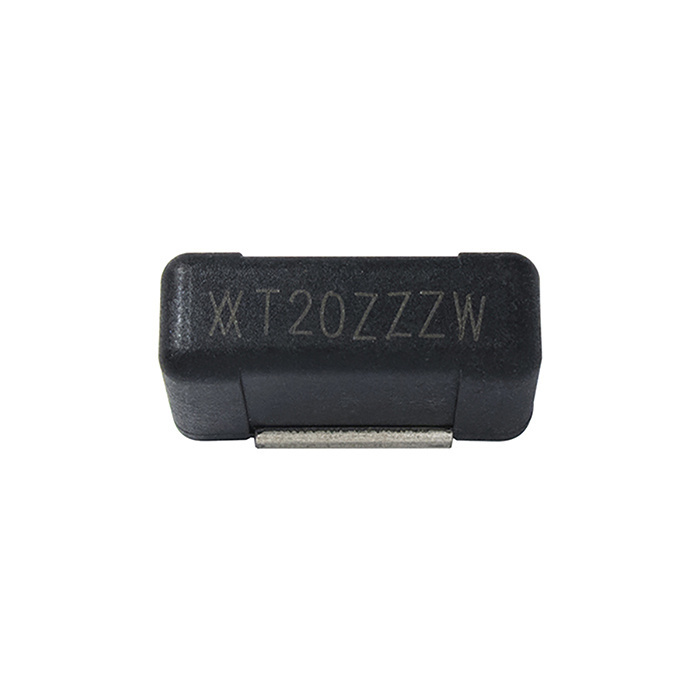

TS600-200F-RA-B-0.5-2
TS600-200F-RA-B-0.5-2 | Series: TS600
Littelfuse PolySwitch® products for telecommunication and networking devices help to meet the growing demand for resettable overcurrent protection. They also provide protection against damage caused by power cross and induced power surges as defined by ITU, Telcordia GR1089, and IEC 62368-1. Littelfuse offers chip, surface mount, and radial-leaded configurations.
| Property | Value |
|---|---|
IH (A) | 0.2 |
Trip Current (A) | 0.4 |
Max Voltage Rating (V) | 60 |
RMIN (Ω) | 4 |
Resistance (Max) (Ω) | 7.5 |
R1max (Ω) | 13.5 |
Interrupt Current Max
| 3 |
Interrupt Voltage (Max) V | 600 |
Max Operating Temperature (°C) | 85 |
Power Dissipation (Typical) (W) | 2.5 |
- Resettable overcurrent protection
- Fast time-to-trip
- Resistance sorted and matched devices available
- Low parasitic capacitance/flat impedance with frequency
- Recognized to UL 1434, approved to CSA TIL No. CA-3A and EN 60730-1
TS600-200F-RA-B-0.5-2 Applications
- Networking equipment and telecom systems
- Modems
- Phone sets
- Fax machines
- Phone wall outlets
- Alarm systems
- PBX systems
- MDF modules
- T1/E1 equipment
- Analog and digital line cards
TS600-200F-RA-B-0.5-2 Resources
