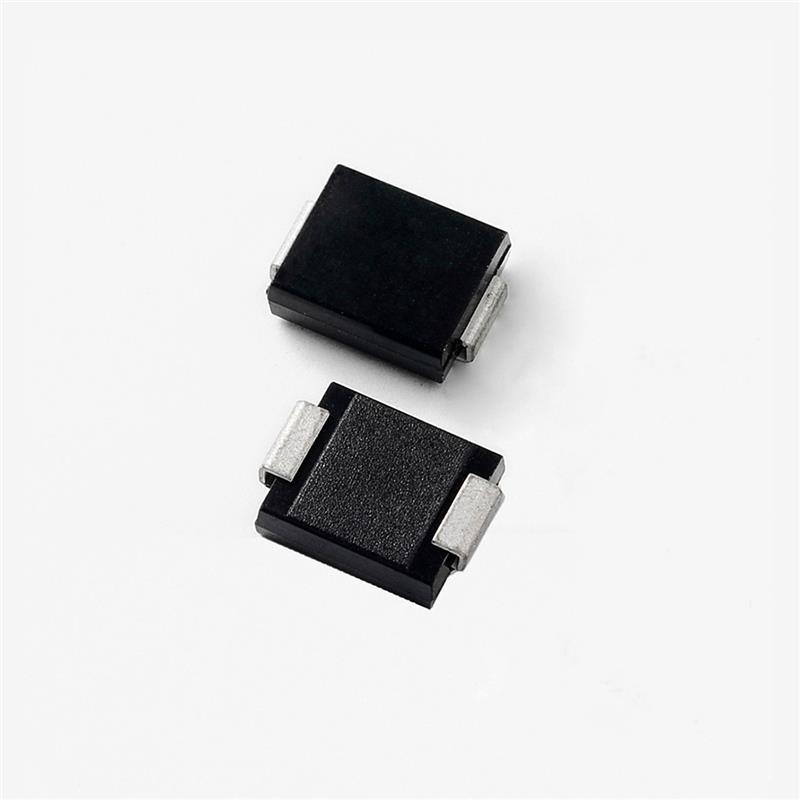

P3100S3GLRP-A
SIDACtor® Bi 275V 3000A DO214AB RoHS | Series: Pxxx0S3G-A
The automotive grade Pxxx0S3G-A series DO-214AB protection thyristors are components designed to protect AC power line located in hostile environments from overvoltage transients. The Pxxx0S3G-A series protect exposed interfaces in industrial and ICT applications, such as RS-485 data interfaces or AC and DC power supplies. These components switching voltage VS are much lower than alternative component. Designed to withstand a 4.0 kV (1.2/50 voltage, 8/20 current) combination wave surge per IEC 61000-4-5 and provide both overcurrent and overvoltage protection for the AC line
| Property | Value |
|---|---|
Surge Rating | G |
IH (A) | 50 |
Ipp8x20 | 2000 |
CO 2V T-R MAX (pF) | 150 |
CO 2V T-R MIN (pF) | 450 |
IDRM @ VDRM (µA) | 0.4 |
ITSM 60Hz (A) | 250 |
On-State Voltage Vt | 4 |
VDRM T-R (V) | 275 |
VS T-R (V) | 350 |
Iscurr | 800 |
Configuration | Single Device |
Circuit Diagram | Single Chip |
Circuit Name | Single Chip |
Type | SIDACTOR DEVICE |
- High reliability application and automotive grade AEC-Q101 qualified
- High surge rating 8/20 2000A protection20
- High surge SIDACtor designed in a surface mount and compact DO-214AB package
- Low voltage overshoot
- Low on-state voltage
- Fails short circuit when surged in
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c pass class 1/1A/2
- IEC 61000-4-2 ESD 20kV (Air), 30 kV (Contact)
- UL recognized compound meeting flammability rating V-0
- Component properties do not degrade after multiple surge events within its limits
P3100S3GLRP-A Applications
- TIA-968-A
- TIA-968-B
- ITU K.20/21 Enhanced Level
- ITU K.20/21 Basic Level
- GR 1089 Inter-building
- GR 1089 Intra-building
- IEC 61000-4-5, 2nd edition
- YD/T 1082
- YD/T 993
- YD/T 950
