SDP0120T023G5RP

Product Status| Activei

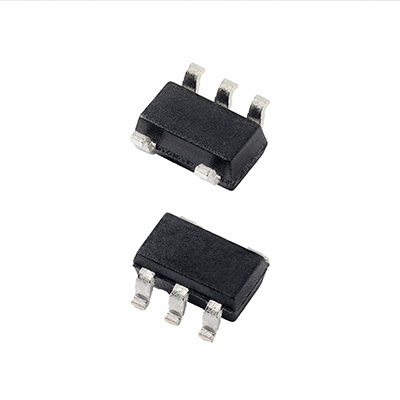

SIDACtor SDP SOT23_5 Image

SDP0120T023G5RP

SIDACTOR, 12V, 30A SOT23-5L, RoHS | Series: SDP SOT23-5
info

SDP Series SOT23-5, SIDACtor® Protection Thyristors provide tertiary or line driver side protection for VDSL2+, ADSL2 applications and more

SDP Series SOT23-5, SIDACtor® Protection Thyristors are ideal for use in the tertiary or line driver side protection position for ADSL2 and VDSL2, and the 30MHz bandplan of VDSL2+ applications and general I/O protection functions. This new solution for low capacitance over-voltage protection does not require a bias voltage and offers protection that’s robust enough for use in the chip-side position behind the coupling transformer. The flow-through design of the SOT23-5 package minimizes PCB trace layout routing, while the device’s four different stand-off voltage values offer compatibility with a variety of line drivers. Its back-to-back configuration provides symmetrical ESD protection for data lines and can be used when AC signals are present.

PropertyValue
VDRM T-R (V)
12
VS T-R (V)
20
Pins Tip to Ring
1 5-3 4
CO 2V T-R MAX (pF)
7.2
CO 2V T-R MIN (pF)
4.8
Iscurr
500
IDRM @ VDRM (µA)
5
IH (A)
30
Ipp8x20
50
Package
SOT23-5
Circuit Diagram
Single Chip
Type
SIDACTOR DEVICE
Configuration
Single Device
On-State Voltage Vt
4
Circuit Name
Single Chip
Dye Type Rating
G
  • Provides bidirectional transient voltage protection.
  • Offers lower overshooting protection than clamping.
  • Starts to switch in nanoseconds to provide surge protection sooner.
  • Small surface mount SOT23-5 package with its flow-through design PCB minimizes trace layout routing.
  • Provides robust surge rating performance up to 50A (8/20μs).
  • Low capacitance and low insertion loss ensures compatibility with ADSL2 and VDSL2, and the 30MHz bandplan of VDSL2+.
  • Helps designs comply with regulatory standards such as YD/T 950, GR 1089 Inter-building, IEC 61000-4, ITU K.20/21 Basic Level, and TIA-968-A.-B.

SDP0120T023G5RP Applications

Highlights Section

  • Tertiary Protection
  • Line Driver Side Protection
  • ADSL2 protection
  • VDSL2+
  • Ethernet Interface protection
