SDP0242Q12FLRP

Product Status| Obsoletei

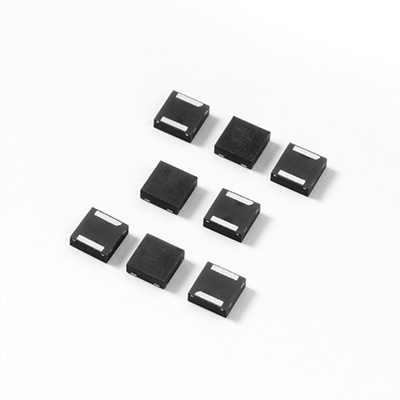

SIDACtor SDP TwinChip 3x3QFN Image

SDP0242Q12FLRP

SIDACtor® Bi 24V 50A QFN 3X3 2L RoHS | Series: TwinChip_SDP
info
The new SIDACtor based Broadband Driver Protector provides overvoltage protection on the secondary side of the coupling transformer used in xDSL driver circuits. This SDP0242Q12F provides a fast switching, robust, solution that is referenced to neither ground nor power. This prevents the surge events from being dumped into these rails. The integrated TwinChip design reduces any negative solid-state-effects on the broadband signals.

Protection Solution for:
  • YD/T 950
  • YD/T 993
  • GR1089 Intra-building
  • GR1089 Inter-building
  • IEC 61000-4-5
  • ITU K.20/21 Basic Level
  • ITU K.20/21 Enhanced Level
  • TIA-968-A
    • PropertyValue
    VDRM T-R (V)
    16
    VS T-R (V)
    43
    Pins Tip to Ring
    1-2
    CO 2V T-R MAX (pF)
    15
    CO 2V T-R MIN (pF)
    10
    Iscurr
    800
    IDRM @ VDRM (µA)
    5
    IH (A)
    30
    Regulatory Requirements
    GR1089 INTER-BUILDING (SERIES
    ITU K.20 (SERIES RESISTANCE NE
    TIA-968-A (SERIES RESISTANCE N
    Ipp5x310
    37.5
    Ipp2x10
    100
    Ipp8x20
    80
    Surge Rating
    F
    Circuit Diagram
    TwinChip
    Type
    Broadband Optimized SIDACtor Device
    Configuration
    Single Device
    On-State Voltage Vt
    8
    ITSM 60Hz (A)
    15
    Circuit Name
    TwinChip
    • RoHS compliant
    • QFN (Quad Flatpak No-lead) surface mount package
    • Low insertion loss
    • Low log linear voltage dependant capacitance
    • Bidirectional transient voltage protection
    • Crowbarring speed of nanoseconds
    • Teccor® branded SIDACtor Technology
    • TwinChip Technology
    • Small footprint/low profile
    • Protection Solution for:

    SDP0242Q12FLRP Resources

    Showing 1 to 1 of 1 Total Results
    Share
    Share
    Part NumberPart DescriptionRoHSPb-FreeRoHS (2015/863/EU) CertificateREACH (SVHC's) DeclarationREACH (SVHC's)Halogen FreeIPC-Material Declaration
    SDP0242Q12FLRPSIDACtor® Bi 24V 50A QFN 3X3 2L RoHSRoHSNoNo

    If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
