AQ24ETH-02HTG

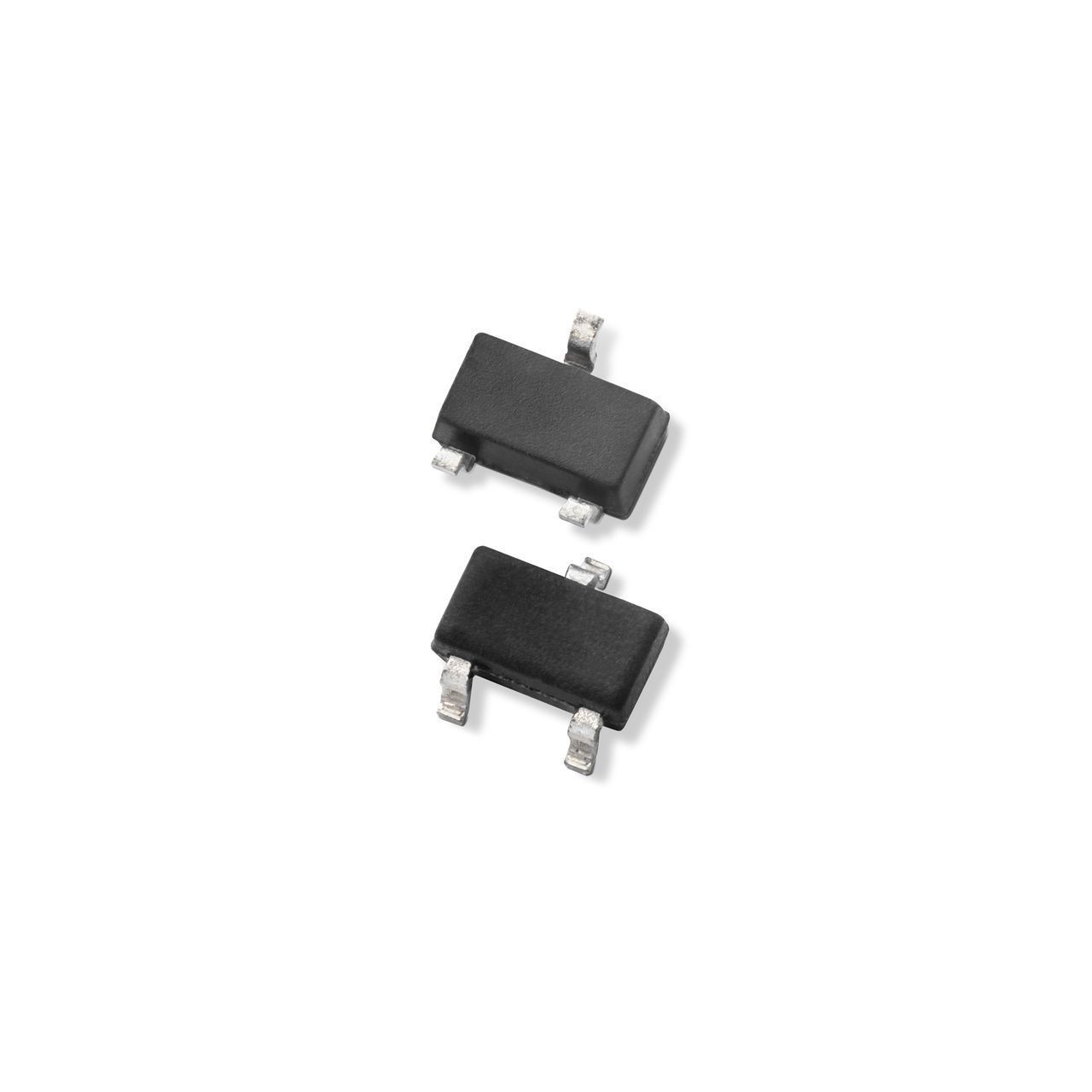

24V 30kV SOT23-3L Diode Array | Series: AQ24ETH-02HTG
The AQ24ETH-02HTG bidirectional TVS is fabricated in a proprietary silicon avalanche technology to protect sensitive automotive electronics against ESD (electrostatic discharge) for compliance to OPEN Alliance 100/1000 BASE-T1 Ethernet and other high speed data networks applications.
This robust device can safely absorb repetitive 1000 times ESD strikes (OPEN Alliance specification) with ±30 kV contact discharge as defined in ISO10605 (discharge storage capacitor C = 150 pF and discharge resistor R = 330 Ω ) without any performance degradation.
| Property | Value |
|---|---|
AEC-Q101 Qualified | Yes |
VR (Vstandoff) | 24 |
Lightning Immunity (8x20µs)(A) | 3 |
CI/O TYP (pF) | 1.6 |
ESD Contact (kV) | ±30 |
ESD Air (kV) | ±30 |
Package | SOT23-3L |
Dynamic Resistance | 0.5 |
Polarity | Bidirectional |
Channels | 2 |
ILeak (µA) | 100 |
Operating Temperature Min (°C) | -40 |
Operating Voltage (V) | 24 |
Device Description_string | 24V 30kV SOT23-3L Diode Array |
Device Description | 24V 30kV SOT23-3L Diode Array |
Operating Temperature Max (°C) | 150 |
- ESD, IEC 61000-4-2, ±30 kVcontact/air
- ESD, ISO10605 150 pF 330Ω, ±15 kV contact dischargeat 1000 times (OPENAlliance specification)
- ESD, ISO10605 330 pF 330Ω, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A(5/50 ns)
- Maximum surge tolerance,IEC 61000-4-5 2nd edition, 3 A(8/20 μs)
- Low leakage current of 0.1 μA(Max) at 24 V
- High trigger voltage of 100 V(Min) at Vt1
- Halogen free, lead free and RoHS compliant
- Moisture sensitivity level(MSL-1)
- AEC-Q101 qualified and PPAP capable
AQ24ETH-02HTG Applications
- OPEN Alliance 100/1000BASE-T1 Ethernet
- High Speed Data Networks
- Low-Voltage Differential Signaling (LVDS)
AQ24ETH-02HTG Resources
