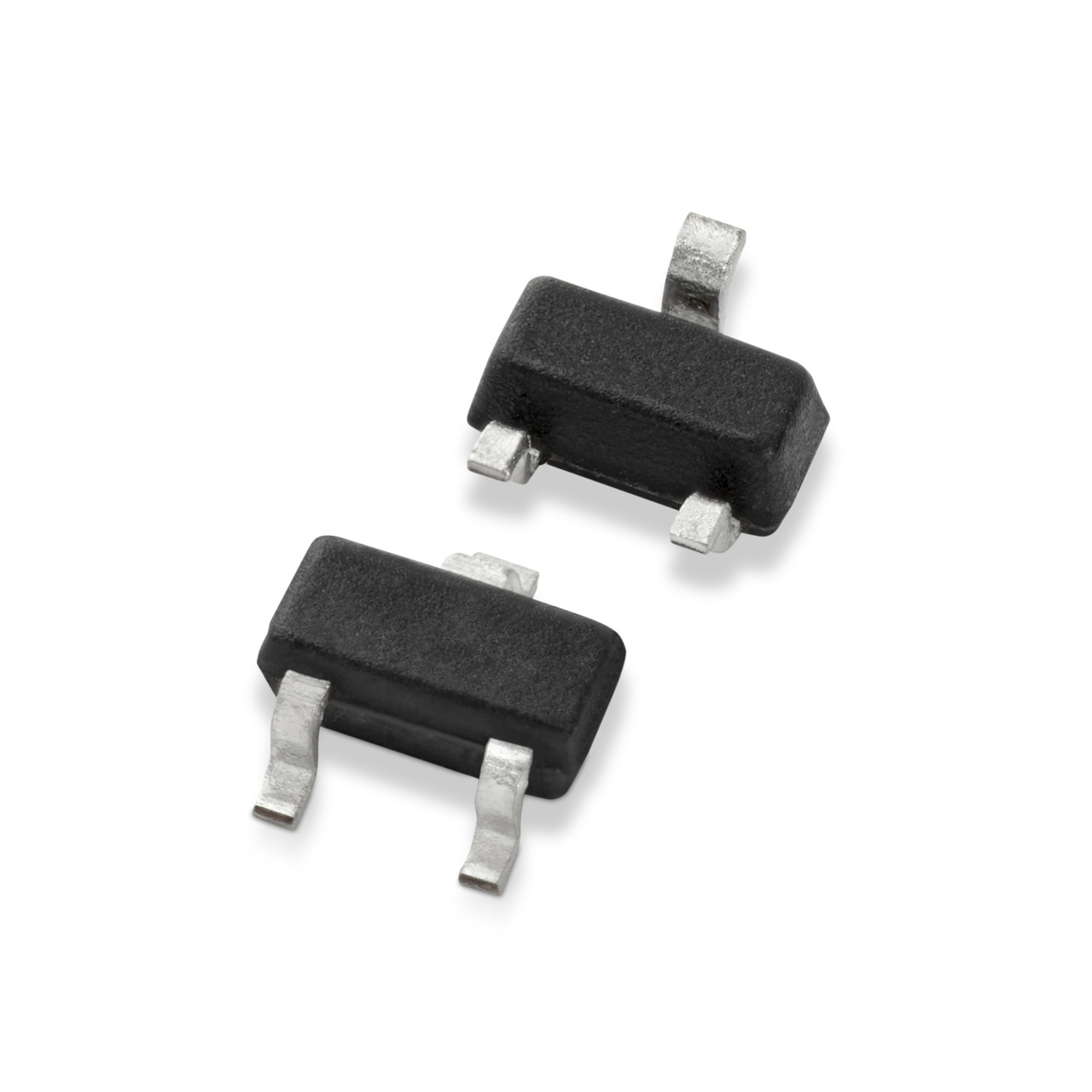

The AQ3052-02RTG is a low-capacitance, TVS Diode Array designed to provide 2 channel protections against ESD (electrostatic discharge) and lightning induced surges. This robust device can safely absorb repetitive ESD strikes at the maximum level specified in the IEC 61000-4-2 international standard (Level 4, ±8 kV contact discharge) without performance degradation and safely dissipate 10 A of 8/20 μs surge current (IEC61000-4-5 2nd edition).
- ESD, IEC 61000-4-2, ±30 kV contact/air
- ESD, ISO10605 330 pF 330 Ω, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5 2nd edition, 10 A (8/20 μs)
- Low capacitance of 1 pF@1 MHz (typ @ VR = 0 V)
- Low clamping voltage
- Halogen-free, lead-free and RoHS compliant
- Moisture sensitivity level (MSL-1)
- AEC-Q101 qualified and PPAP capable
AQ3052-02RTG Parts
Link has been copied to clipboard
Filters
AQ3052-02RTG Applications
- Automotive
- USB 2.0
- Display Port
- 10/100/1000 ethernet
- LVDS line video lines
