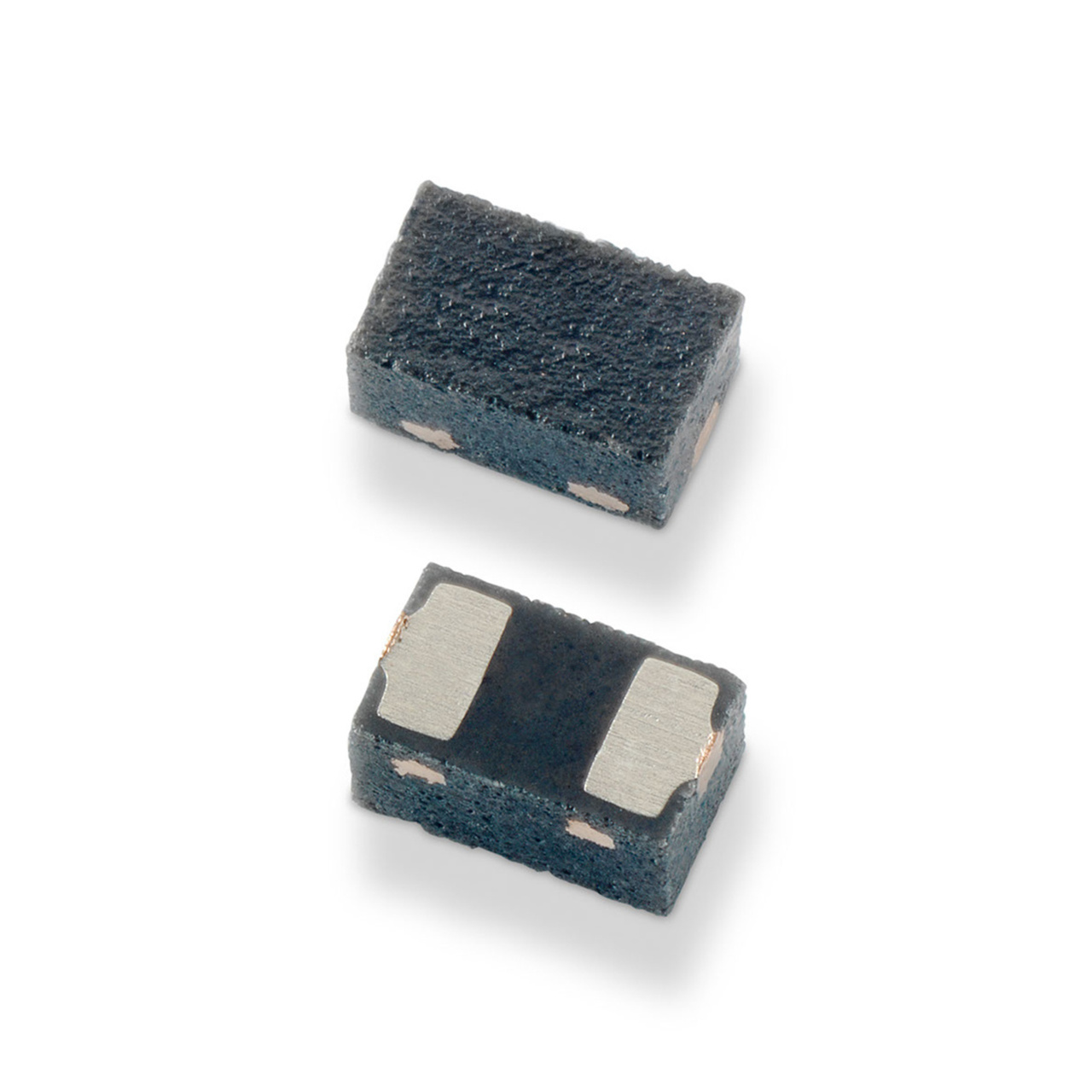

The AQ4324-01ETG provides ultra-low capacitance, bidirectional and a high level of protection for 1 channel electronic equipment that may experience destructive electrostatic discharges (ESD). The typical capacitance of 0.4 pF helps ensure excellent signal integrity on the most challenging consumer electronics interfaces, such as DisplayPort interfaces, Thunderbolt and high speed USB. It can safely absorb repetitive ESD strikes at ±12 kV (contact, IEC 61000-4-2 and ISO10605) without performance degradation.
- AEC-Q101-qualified and PPAP-capable
- Low leakage current of 50 nA (MAX) at 24 V
- Ultra low capacitance of 0.4 pF (Typ @ VR = 0 V)
- Low Clamping Voltage 10V @ 6 A
- ESD, IEC 61000-4-2, ±12 kVcontact, ±22 kV air
- ESD, ISO10605 330 pF 330 Ω, ±12 kV contact, ±15 kV air
AQ4324-01ETG Parts
Link has been copied to clipboard
Filters
AQ4324-01ETG Applications
- Automotive Antenna ESD Protection
- RF Signal ESD Protection
- Near Field Communications (NFC)
- Automotive SerDes w/Power over Coax
- USB Type-C (short-to-VBUS tolerant)
