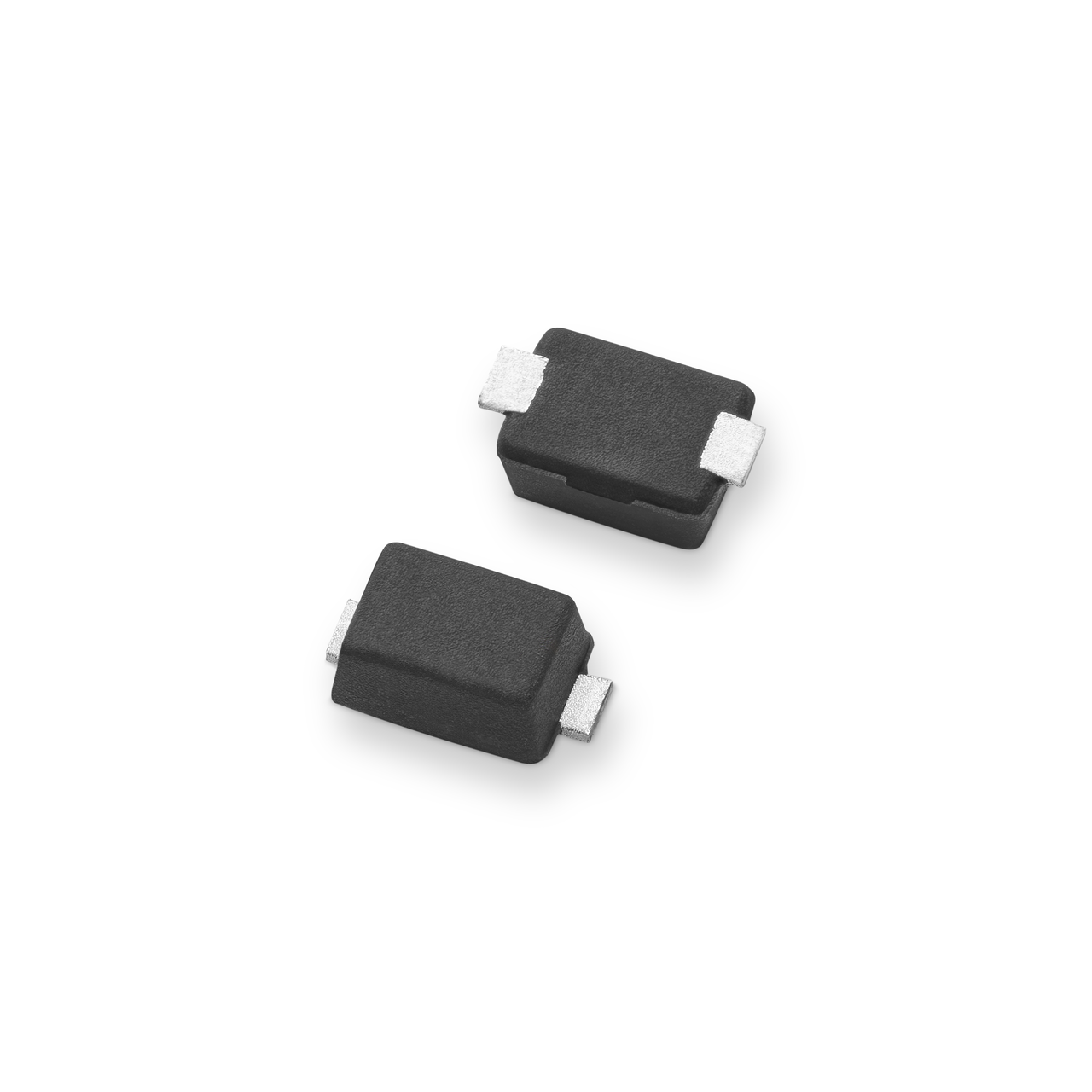

AQ06-01FLTG
6V 120A 30kV SOD323FL Uni-dir TVS | Series: AQxx-01FLTG
The AQxx-01FLTG series unidirectional TVS diode utilizes a proprietary silicon avalanche technology. These diodes provide electronic equipment with high ESD (electrostatic discharge) protection. Pb The AQxx-01FLTG series TVS diodes can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 200 W peak pulse power at 10/1000 μs waveform.
| Property | Value |
|---|---|
AEC-Q101 Qualified | Yes |
VR (Vstandoff) | 6 |
ILeak (µA) | 400 |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 99 |
Clamp Voltage | 7.5V@1A |
CI/O TYP (pF) | 1200 |
Polarity | Unidirectional |
Channels | 1 |
MIN VBR@IT (V) | 6.6 |
Operating Temperature | -40° to 150°C |
Package | SOD323FL |
Dynamic Resistance | 0.03 |
- AEC-Q101-qualified and PPAP-capable
- Surge tolerance: IEC 61000-4-5 2nd edition, 10~99 A (tP = 8/20 μs)
- ESD, ISO 10605, 330 pF 330 Ω, ±30 kV contact/air
- Overtemperature and overcurrent protection for Lithium (Ion) Polymer and prismatic cells
- Peak pulse power, 200 W, 10/1000 μs waveform
- ESD, IEC 61000-4-2, ±30 kV contact/air
AQ06-01FLTG Applications
- Automotive applications
- Battery protection
- Computer peripherals
- Medical equipment
- Notebooks/desktops/servers
- Test equipment/instrumentation
