TPSMF70CA
"Auto TVS SMF 70V Bi, T&R" | Series: TPSMF

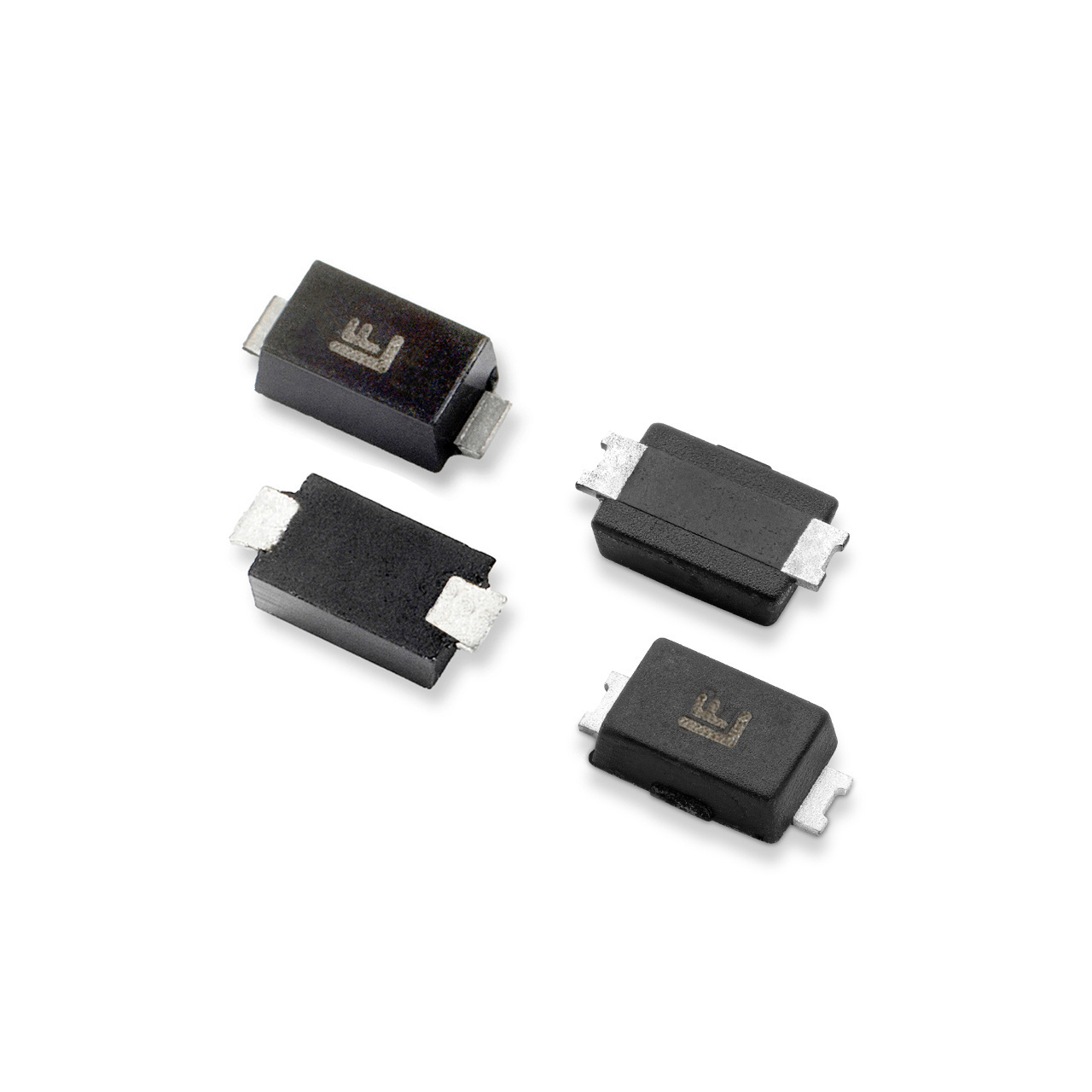

The TPSMF series is designed specifically to protect sensitive electronic equipment from voltage transients induced by lightning and other transient voltage events. TPSMF package is 50 % smaller in footprint when compare to SMA package and deliverying one of the low height profiles (1.1 mm) in the industry.
| Property | Value |
|---|---|
VR (Vstandoff) | 70 |
Watts (W) | 200 |
I PP 10x1000µs (A) | 1.7 |
MIN VBR@IT (V) | 77.8 |
MAX VBR@IT (V) | 86 |
Vc (V) | 113 |
IT (mA) | 1 |
Operating Temperature Max (°C) | 150 |
Uni / Bi-Directional | Bidirectional |
Package | SOD-123FL |
Ir@Vr(µA) | 1 |
Peak Pulse Power - 10x1000 (W) | 200 |
TYP VBR@IT (V) | 81.9 |
Surge Life | 30 |
Tolerance % | 5 |
- High reliability application and automotive grade AEC-Q101 qualified
- 200 W peak pulse power capability at 10/1000 μs waveform, repetition rate (duty cycle): 0.01 %
- Compatible with industrial standard package SOD-123FL
- Low profile: maximum height of 1.1 mm.
- Low inductance, excellent clamping capability
- For surface mounted applications to optimize board space
- High temperature to reflow soldering guaranteed: 260°C/30 sec
- Typical failure mode is short from over-specified voltage or current
- Whisker test is conducted based on JEDEC JESD201A per its table 4a and 4c
- IEC-61000-4-2 ESD 30 kV(Air), 30 kV (Contact)
TPSMF70CA Applications
- I/O interfaces
- Vcc bus
- Cellular phone
- Portable electronics
- Business machines
- Power supplies
- Other consumer applications
