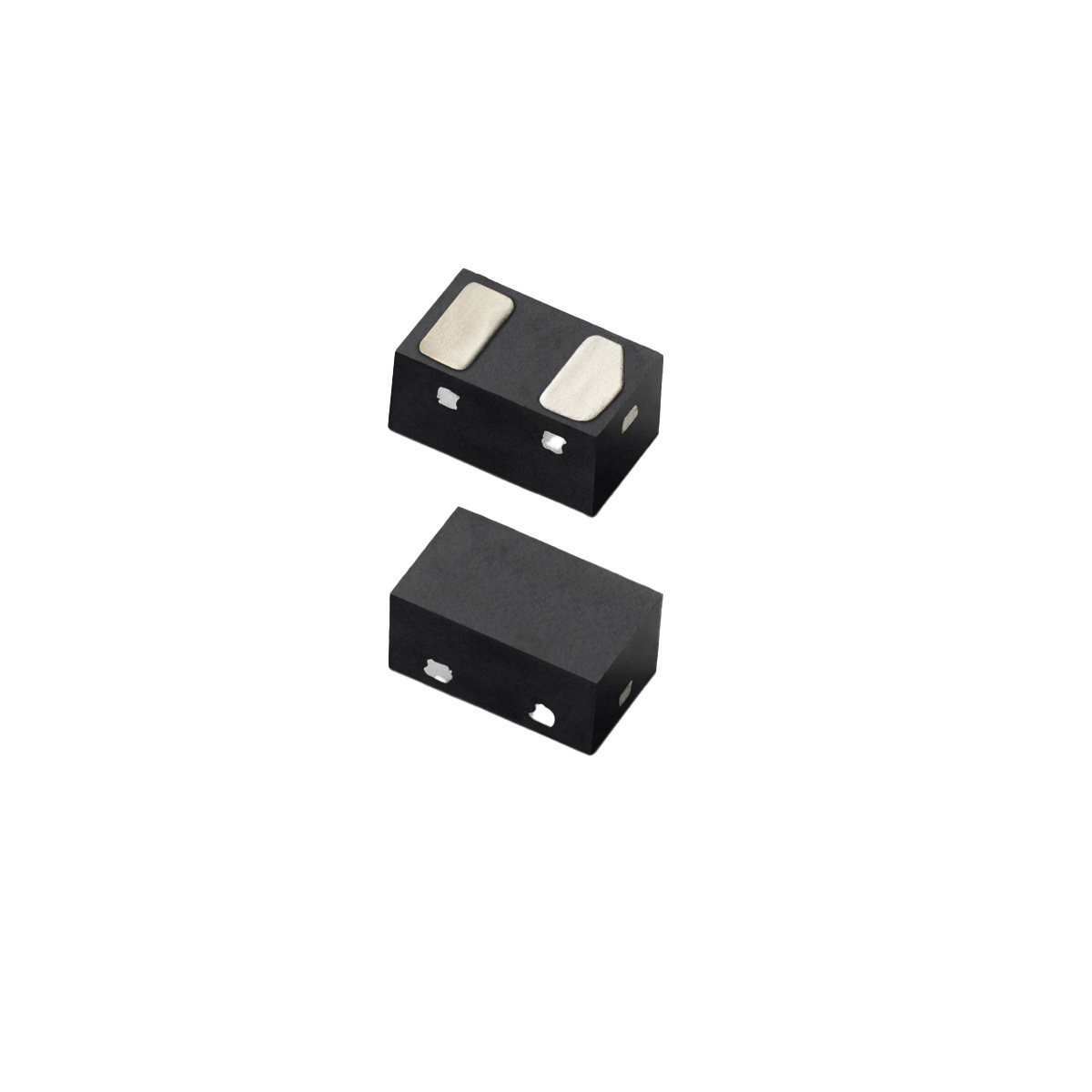

SC1003-01ETG | Series: SC1003-01ETG
The SC1003-01ETG diodes are fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SC1003-01ETG TVS can safely absorb repetitive ESD strikes at ±30 kV (contact discharge, IEC 61000-4-2) without performance degradation. Additionally, each diode can safely dissipate 7 A of 8/20 μs surge current (IEC 61000-4-5) with very low clamping voltages.
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
Package | SOD882 |
VR (Vstandoff) | 5 |
ILeak (µA) | 100 |
Clamp Voltage | 12V@7A |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 12V@7A |
CI/O TYP (pF) | 30 |
Polarity | Unidirectional |
Channels | 1 |
Operating Temperature Min (°C) | -40 |
Operating Temperature Max (°C) | 125 |
Dynamic Resistance | 0.25 |
Operating Voltage (V) | 5 |
CMAX | 30 |
- ESD, IEC 61000-4-2, ±30 kV contact/air
- EFT, IEC 61000-4-4, 40 A (5/50 ns)
- Maximum surge tolerance, IEC 61000-4-5, 2nd edition, 7 A (8/20 μs)
- Low leakage current of 0.1 μA (Max) at 5 V
- Low clamping voltage
- Tiny SOD882 (JEDEC MO-236) package saves board space
- Halogen-free, lead-free and RoHS compliant
SC1003-01ETG Applications
- Portable navigation components
- Portable medical components
- Digital cameras
- Mobile phones
- PDAs
SC1003-01ETG Resources
