SC1122-01ETG

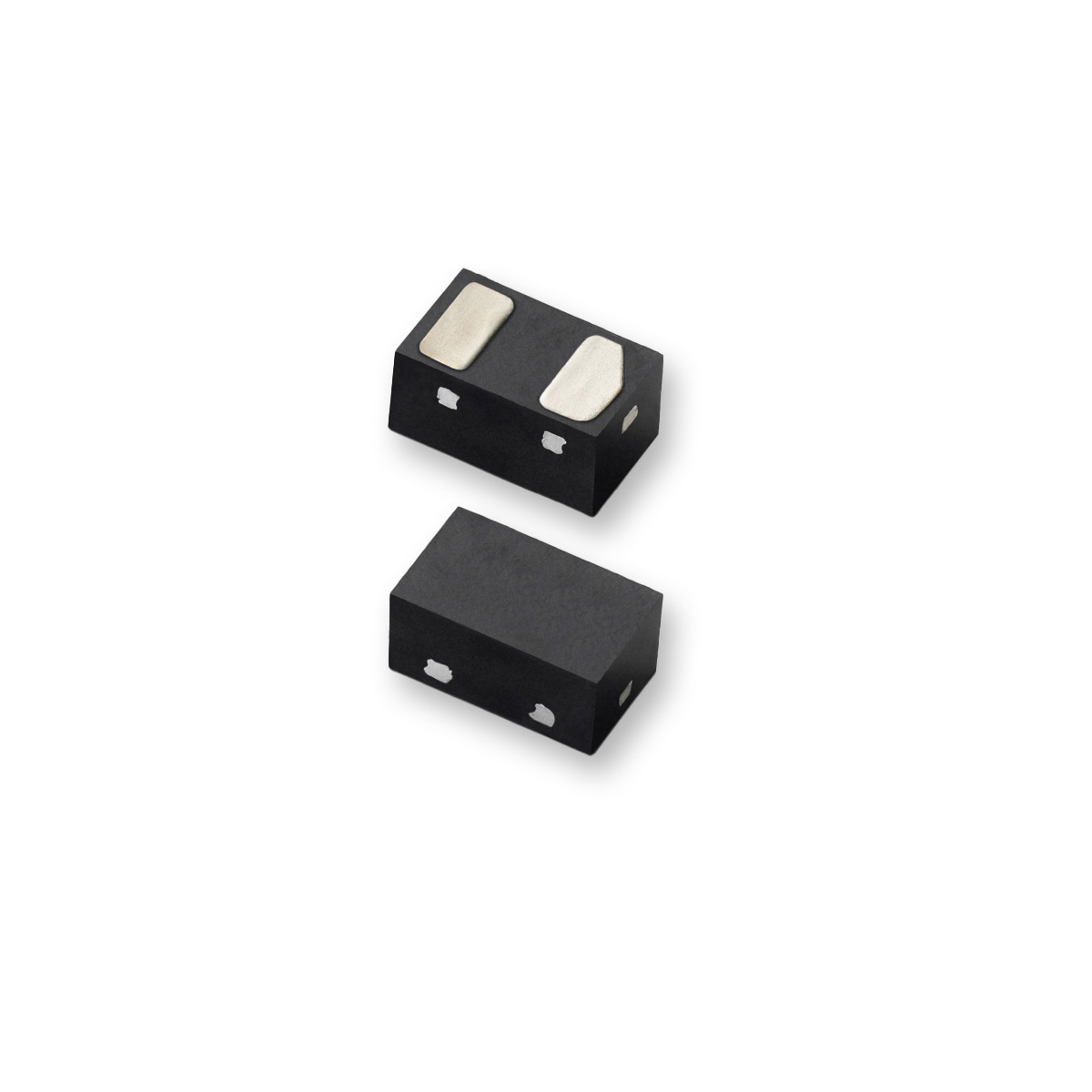

22 V 60 pF 9 A SOD882 | Series: SC1122-01ETGThe SC1122-01ETG unidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SC1122-01ETG TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. In addition, it can safely dissipate a 9 A 8/20 μs surge event as defined in IEC 61000-4-5, 2nd edition.
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
VR (Vstandoff) | 22 |
ILeak (µA) | 1000 |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 9 |
Clamp Voltage | 28V@1A |
CI/O TYP (pF) | 60 |
Polarity | Unidirectional |
Channels | 1 |
MIN VBR@IT (V) | 23.1 |
Package | SOD882 |
Dynamic Resistance | 0.3 |
Operating Temperature | -40° to 125°C |
Device Description | 22V. 60 pF. 9A. SOD882. Unidirectional Discrete TVS Diode |
- Maximum surge tolerance: IEC 61000-4-5 2nd edition, 9 A (tP = 8/20 μs)
- ESD, IEC 61000-4-2, ±30 kV contact/air
- Low leakage current of 1000 nA (max) at 22 V
- Compliant with numerous IEC standards for ESD suppression and lightning surge protection
- Safely dissipates high-surge events
SC1122-01ETG Applications
- CC/SBU for USB PD3.1
- Mobile phones
- Laptops/tablets
