SC1210-01ETG

Product Status| Activei

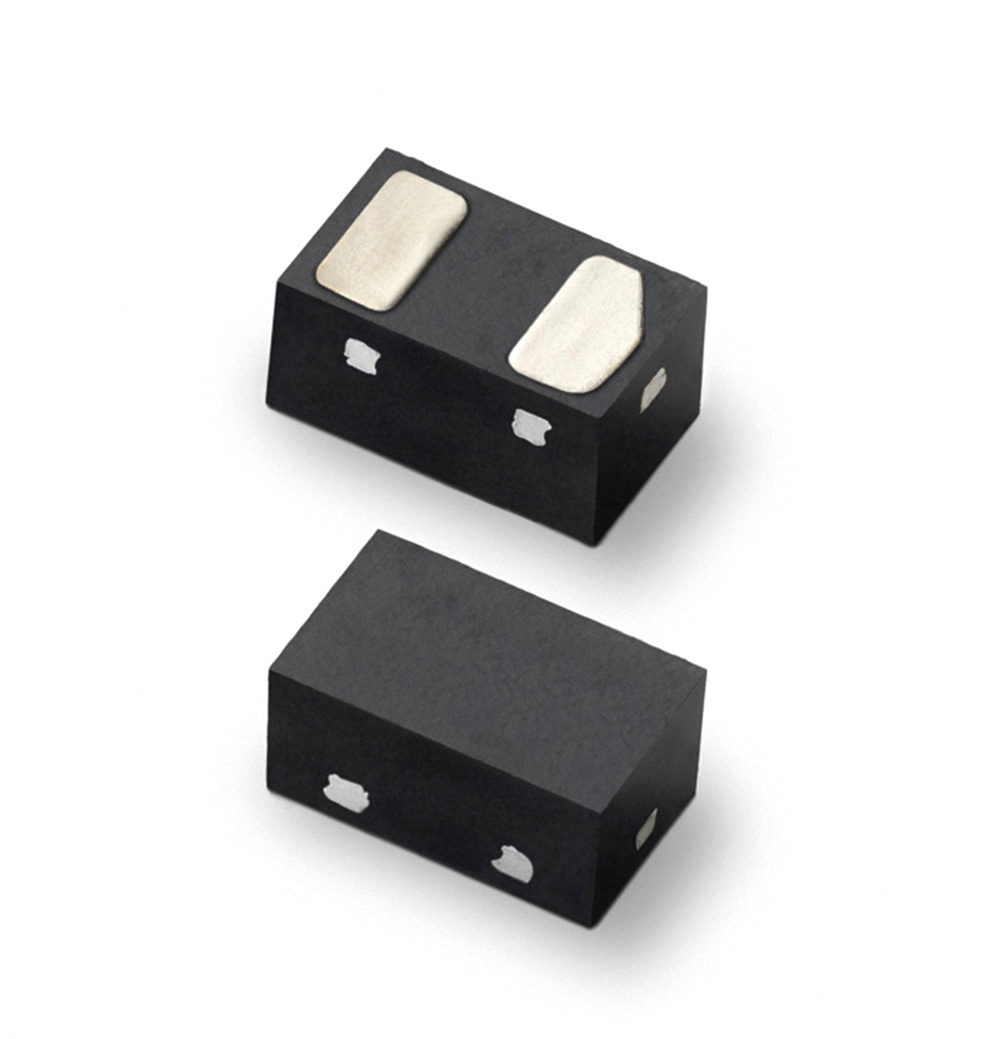

littelfuse tvs diode array SC1210-01ETG Image
littelfuse tvs diode array SC1210-01ETG Image

SC1210-01ETG

5V 15A 30kV SOD882 Bi-dir TVS | Series: SC1210-01ETG
info

The SC1210-01ETG bidirectional TVS is fabricated in a proprietary silicon avalanche technology. These diodes provide a high ESD (electrostatic discharge) protection level for electronic equipment. The SC1210-01ETG TVS can safely absorb repetitive ESD strikes of ±30 kV (contact and air discharge as defined in IEC 61000-4-2) without any performance degradation. Additional, each TVS can safely dissipate a 15A 8/20us surge event as defined in IEC 61000-4-5 2nd edition.

PropertyValue
AEC-Q101 Qualified
No
VR (Vstandoff)
5
ILeak (µA)
0.02
ESD Contact (kV)
±30
ESD Air (kV)
±30
Lightning Immunity (8x20µs)(A)
15
Clamp Voltage
11V@15A
CI/O TYP (pF)
26
Polarity
Bidirectional
Channels
1
MIN VBR@IT (V)
5.2
Package
SOD882
Dynamic Resistance
0.11
Record Type
H
Item Records
0
Clamping Voltage_string
11V@15A
  • IEC 61000-4-2 ESD protection: ±30kV by contact and ±30 kV through air
  • IEC 61000-4-4 EFT protection: 40 A (5/50 ns)
  • Lightning, 15 A (8/20μs as defined in IEC 61000-4-5 2nd edition)
  • Low typical leakage current of 0.02 μA at 5 V
  • Lead-free, halogen-free, and RoHS compliant
  • Moisture Sensitivity Level (MSL -1)

SC1210-01ETG Applications

Highlights Section

  • Switches and Buttons
  • Test Equipment and Instrumentation
  • Point-of-Sale Terminals
  • Medical Equipment
  • Notebooks / Desktops / Servers
  • Computer Peripherals
  • Battery

SC1210-01ETG Resources

Showing 1 to 1 of 1 Total Results
Download
|
Share
Share
Part NumberPart DescriptionRoHSPb-FreeRoHS (2015/863/EU) CertificateREACH (SVHCs) DeclarationREACH (SVHCs)Halogen FreeIPC-Material Declaration
SC1210-01ETG5V 15A 30kV SOD882 Bi-dir TVSRoHS4/22/2021Pb-Free4/22/2021Pdf IconCoC_RoHS10_SC1210-01ETGPdf IconREACH_SVHC Declaration_SC1210-01ETGDoes Not ContainYes4/22/2021Pdf IconIPC_SC1210-01ETG_EF

If the product environmental information that you are looking for does not appear in this tab, please complete the Product Environmental Information Request Form.
