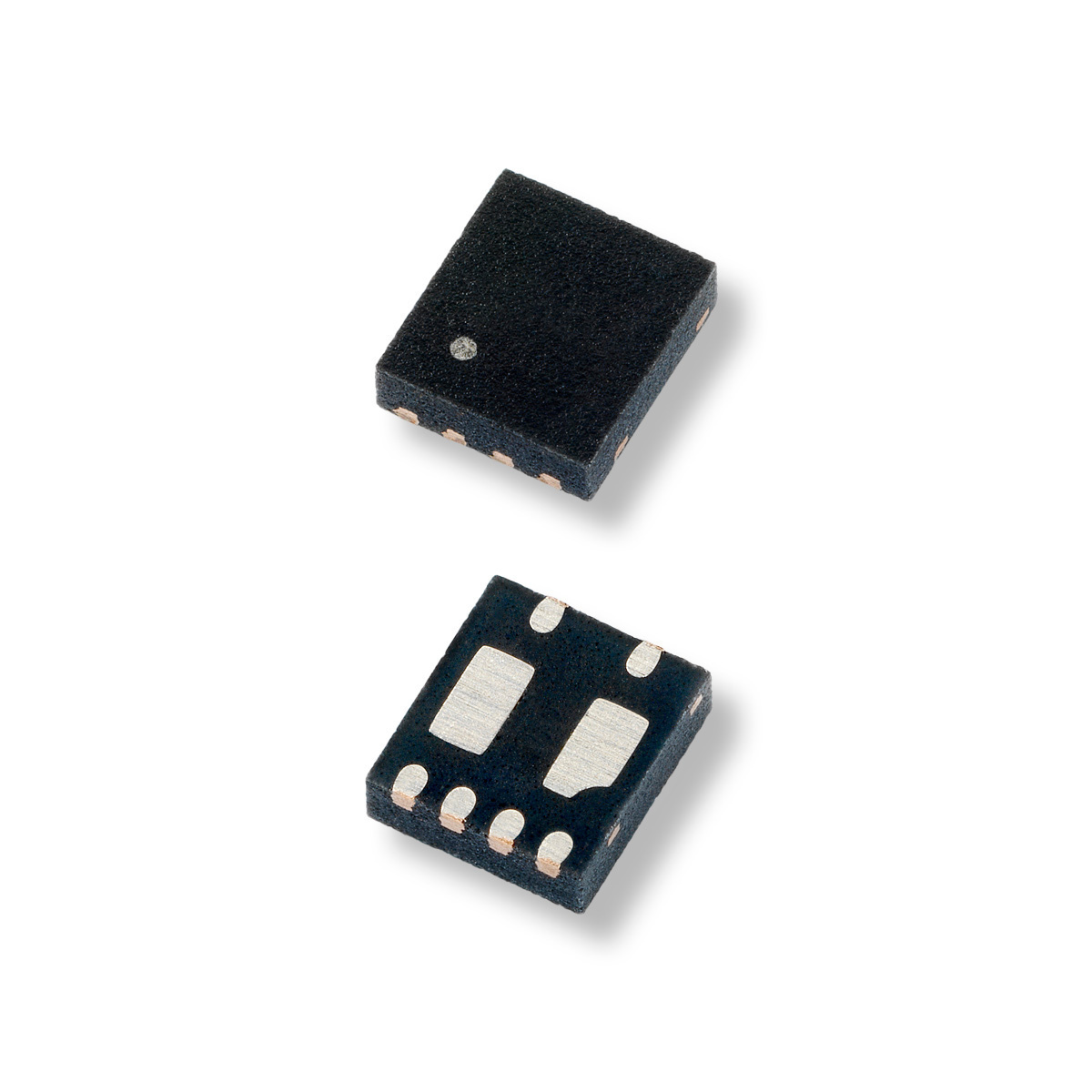

SC1230-01UTG
30V 100A 30kV uDFN-6 Uni-dir TVS | Series: SC1230-01UTG
| Property | Value |
|---|---|
AEC-Q101 Qualified | No |
VR (Vstandoff) | 30 |
ILeak (µA) | 0.5 |
ESD Contact (kV) | 30 |
ESD Air (kV) | 30 |
Lightning Immunity (8x20µs)(A) | 100 |
Clamp Voltage | 37V@40A |
CI/O TYP (pF) | 620 |
Polarity | Unidirectional |
Channels | 1 |
MIN VBR@IT (V) | 30.5 |
Package | uDFN-6 |
Dynamic Resistance | 0.03 |
Operating Temperature | -40° to 125°C |
Device Description | 30 V, 100 A, Unidirectional TVS |
- Maximum surge tolerance: IEC 61000-4-5 2nd edition, 100 A (tP = 8/20 μs)
- ESD, IEC 61000-4-2, ±30 kV contact/air
- Low leakage current of 0.02 μA (TYP) at 30 V
- Low clamping voltage
- Compliant with numerous IEC standards for ESD suppression and lightning surge protection
- Safely dissipates high surge events
SC1230-01UTG Applications
- Laptops/tablets
- Mobile phones
- Portable medical devices
